Tech 2 Menu Structure

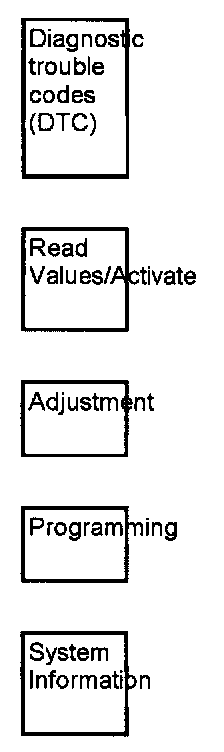

Tech 2 Menu Structure:

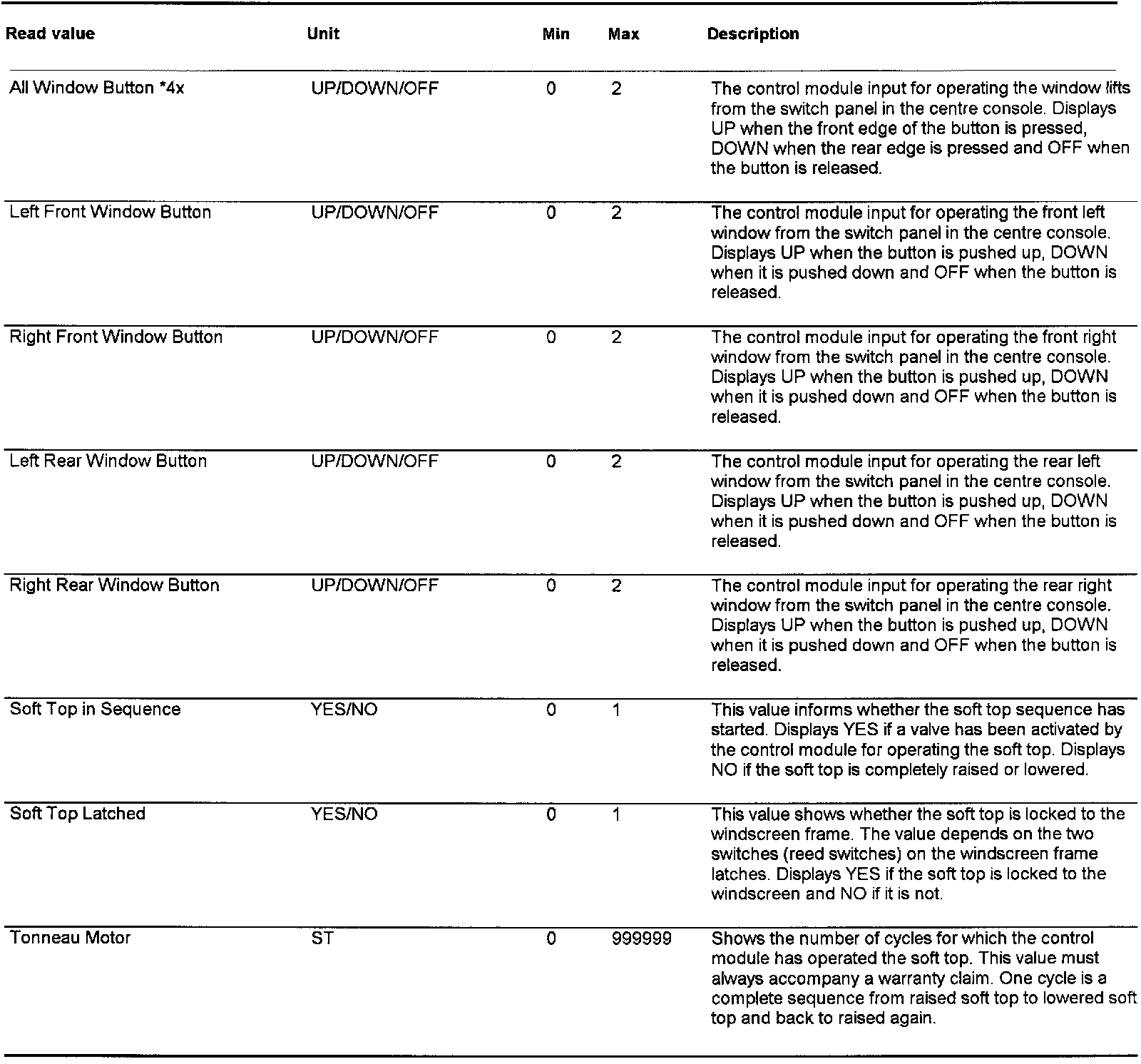

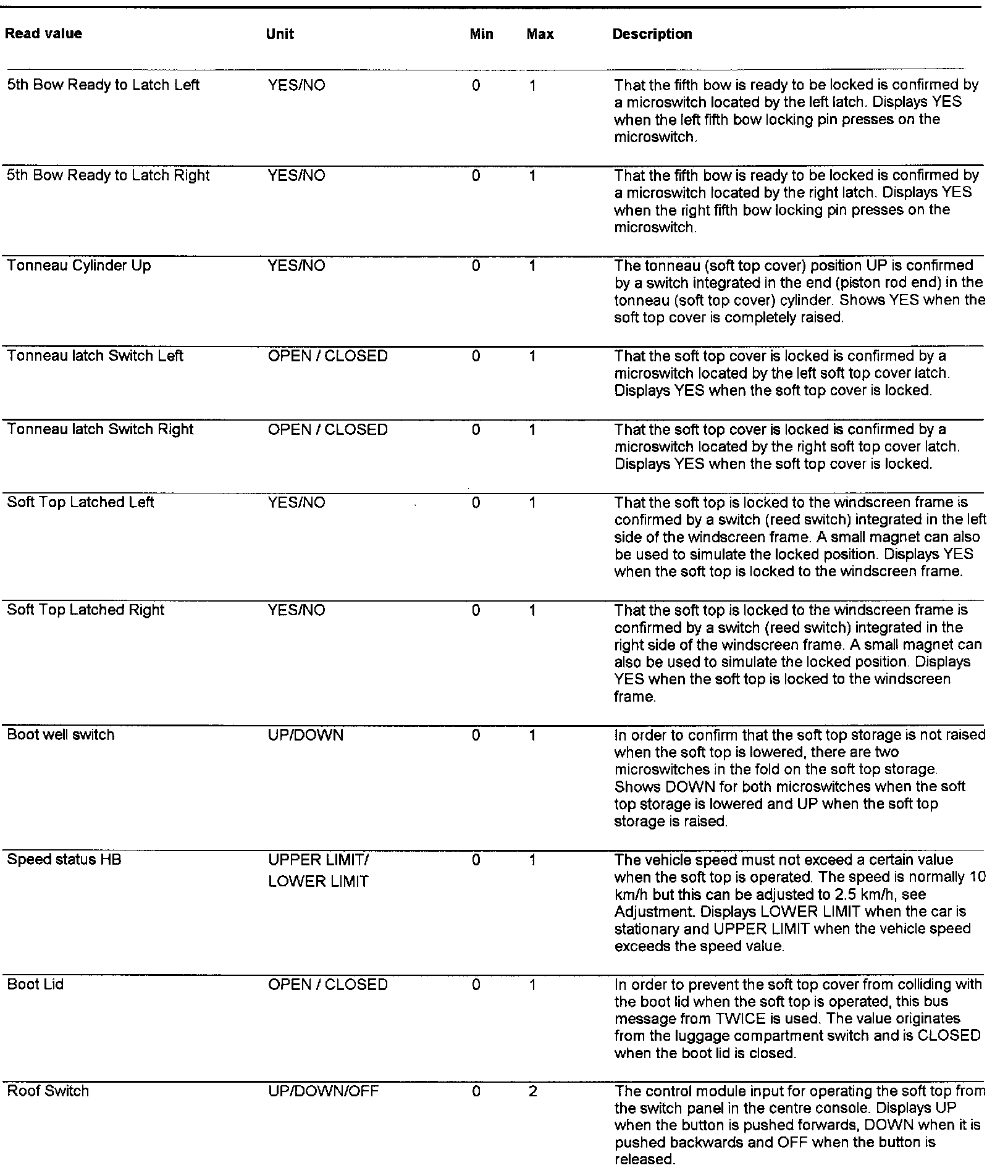

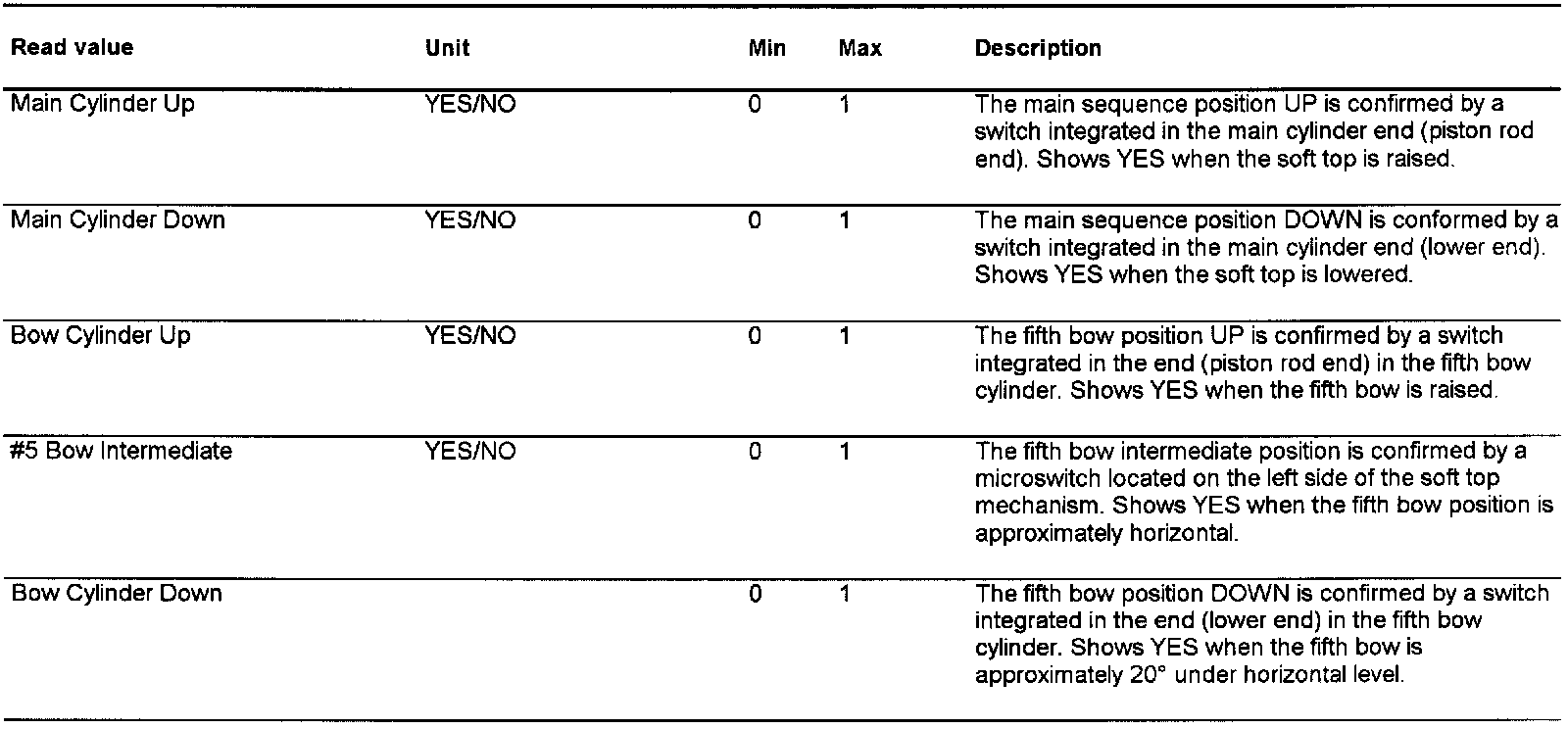

Menu "Read Values"


IMPORTANT
To obtain relevant "Read Values", the ignition must be in position ON

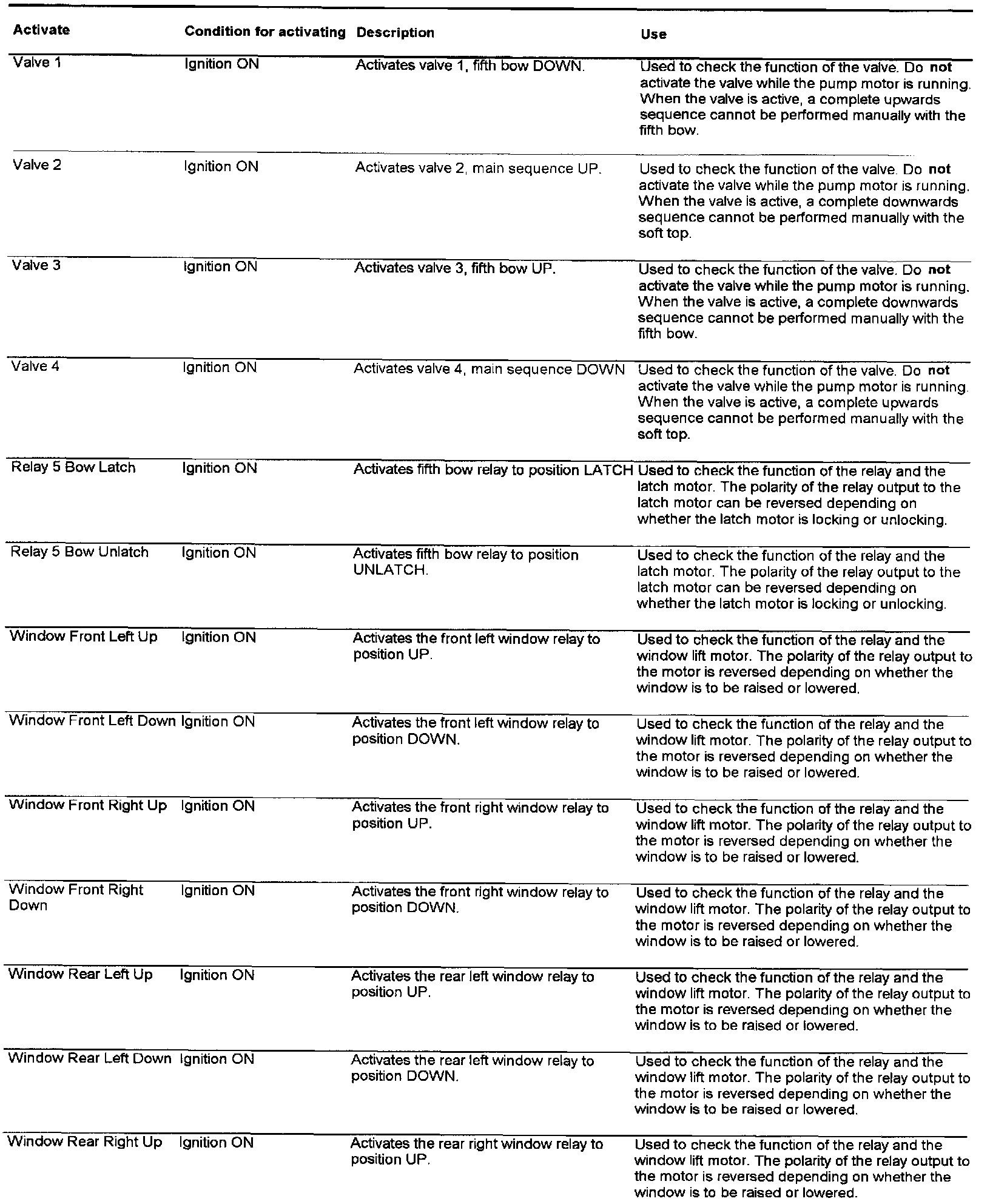

Menu "Activate"

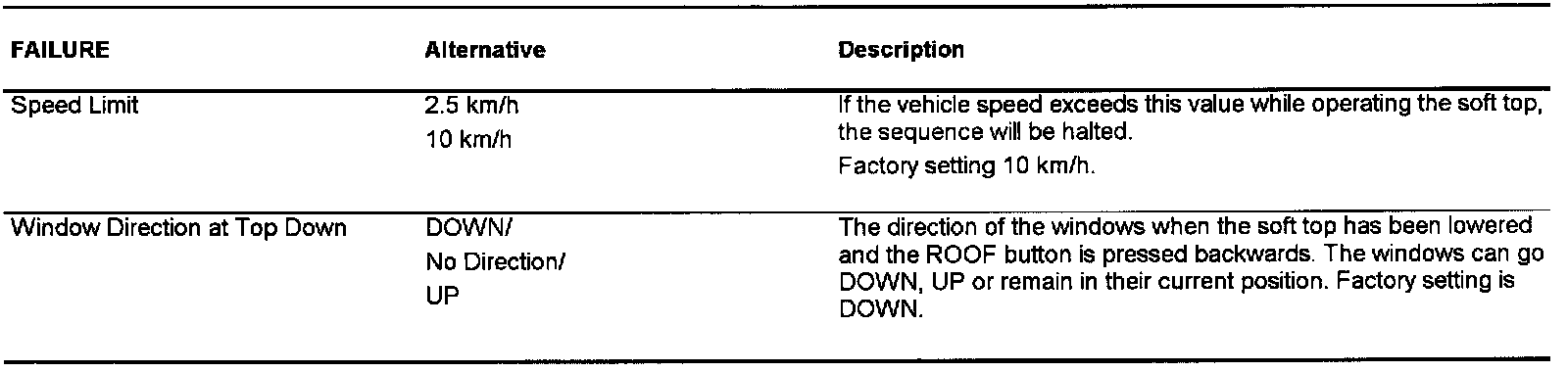

Menu "Adjustment"

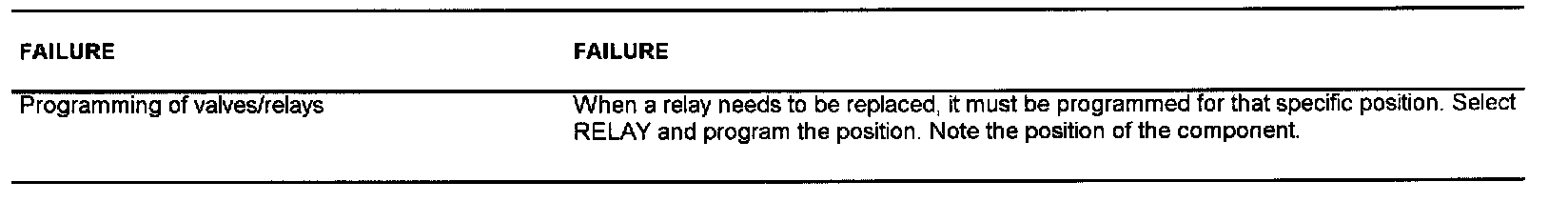

Menu "Programming"







Never have more than one unprogrammed spare part (relay/valve) in the car. If more than one unprogrammed spare part is mounted, both will have the same address.

If more than one relay/valve must be replaced, first fit one spare part and program it. Then fit the next spare part and program it. This prevents two spare parts from receiving the same address.

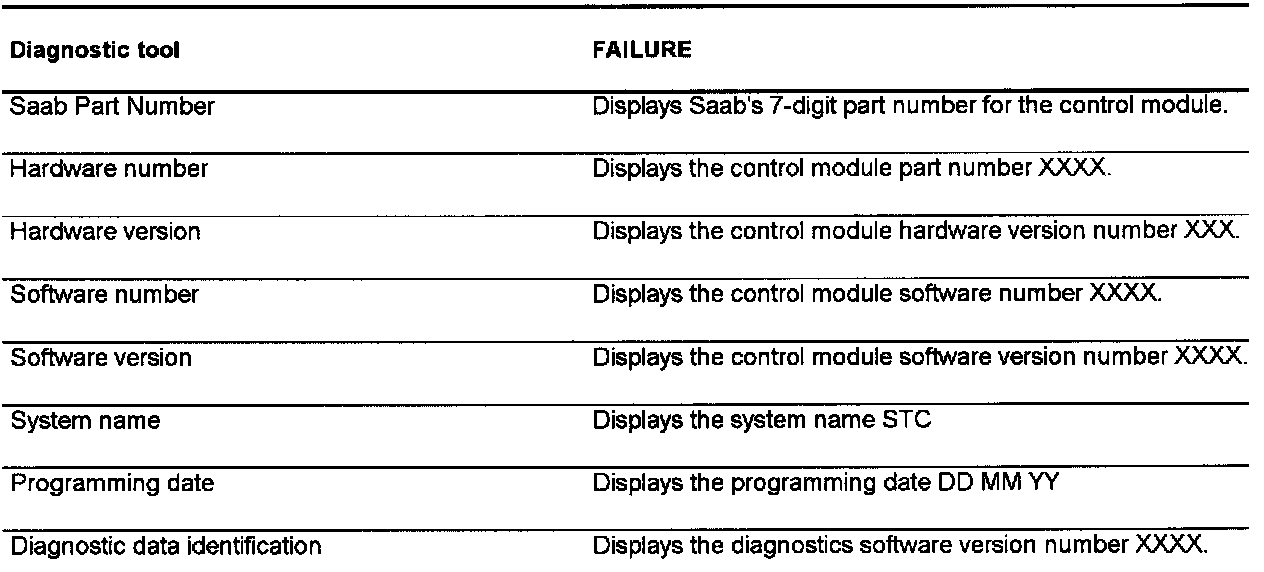

Menu "System Information"
