Soft Top Storage

Soft Top Storage

Removing
1. Open the boot lid.

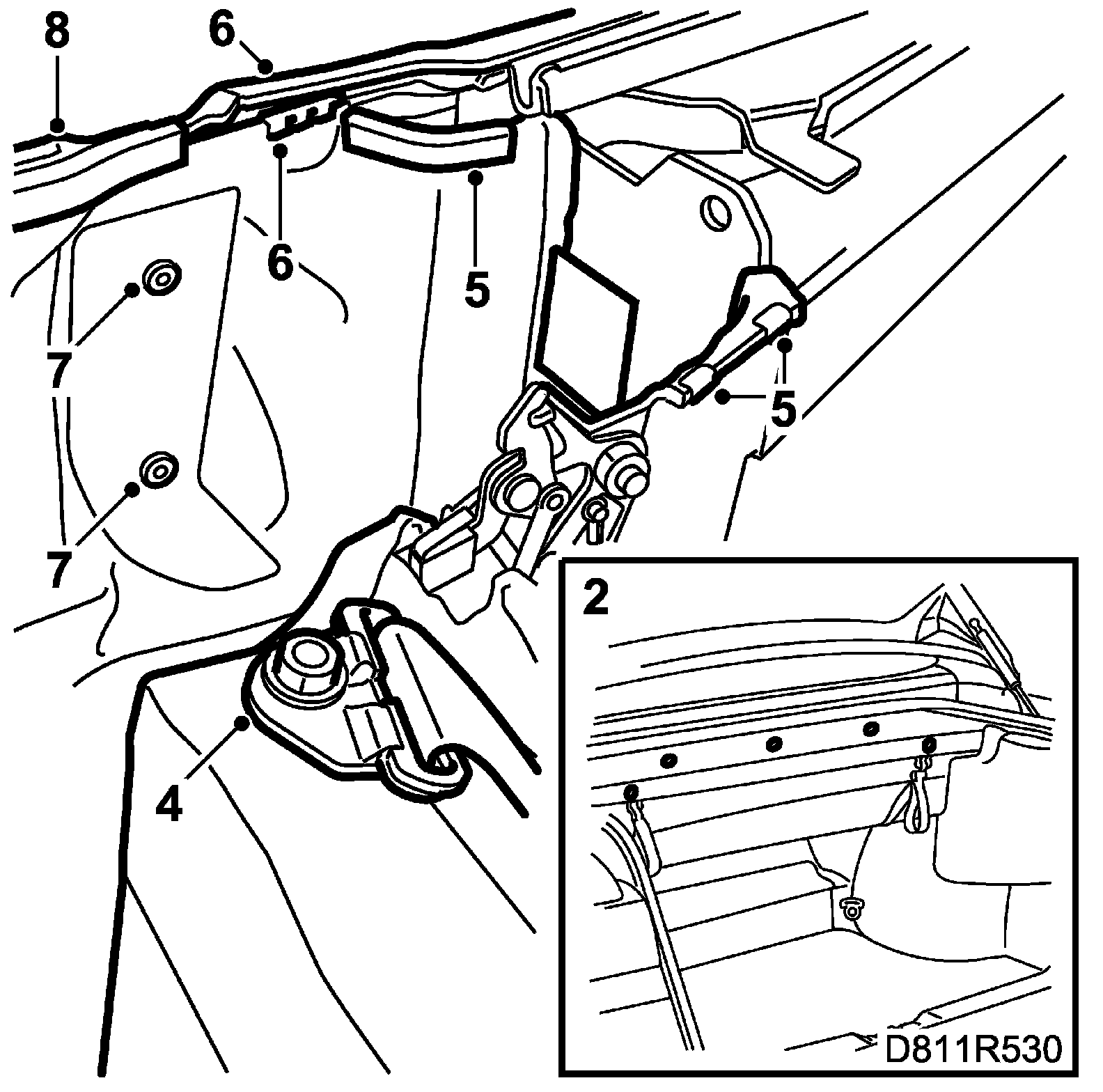

2. Remove the clips and loosen the bolts, close the boot lid.







3. Remove the soft top.
4. Remove the upper mountings for the seat belts.
5. Remove the front moulding and the two clips from the body.
6. Lift up the rear part of the outer window seal and remove the clip under the moulding.
7. Tap in the pins on the clips on the side protectors and pull out the clips.
8. Remove the soft top cover seal strip.

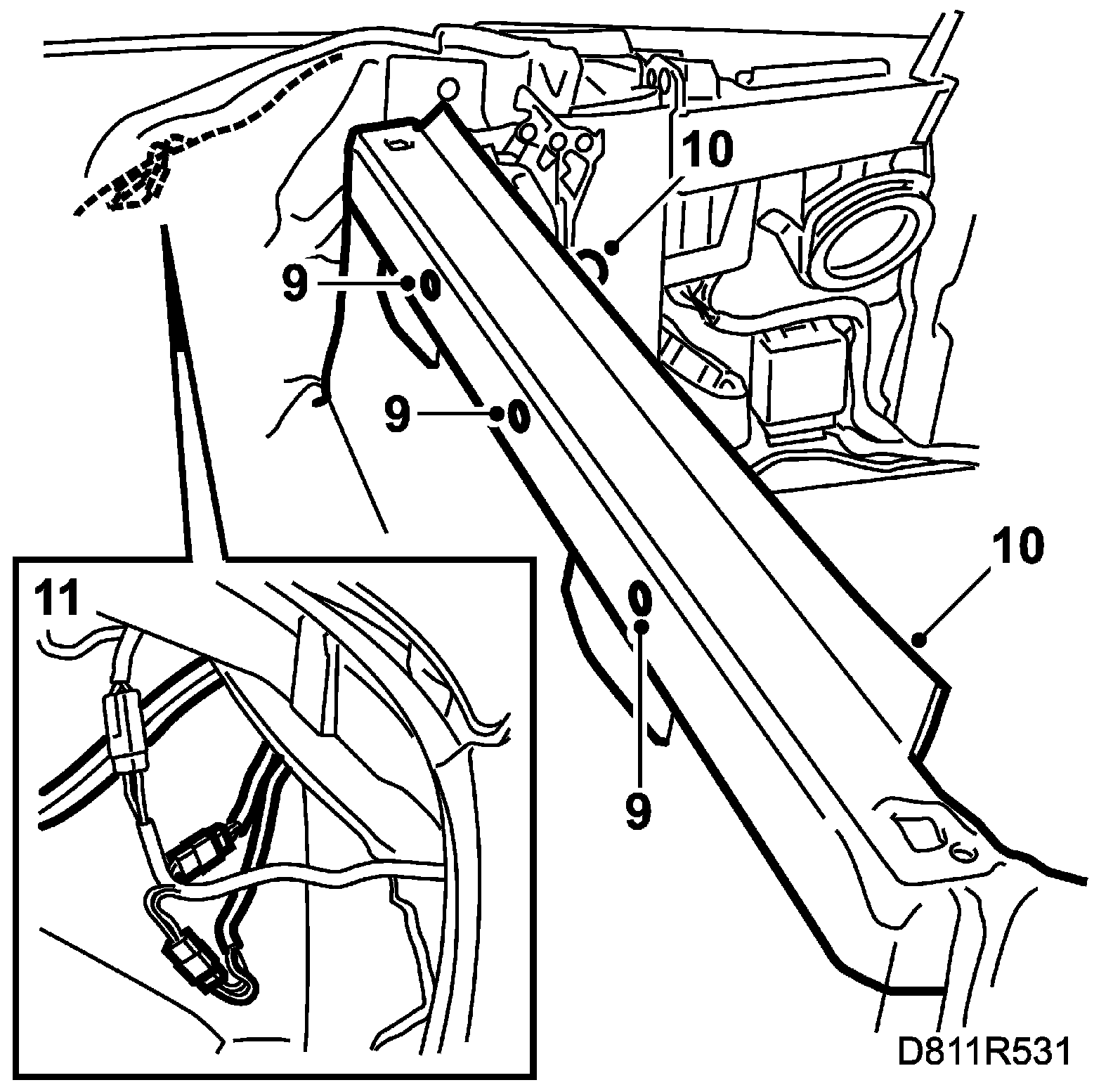

9. Remove the plastic clips.







10. Push out the cable lead through and lift up the velcro strip.
11. Unplug the connectors.
12. Lift out the soft top storage.

Fitting

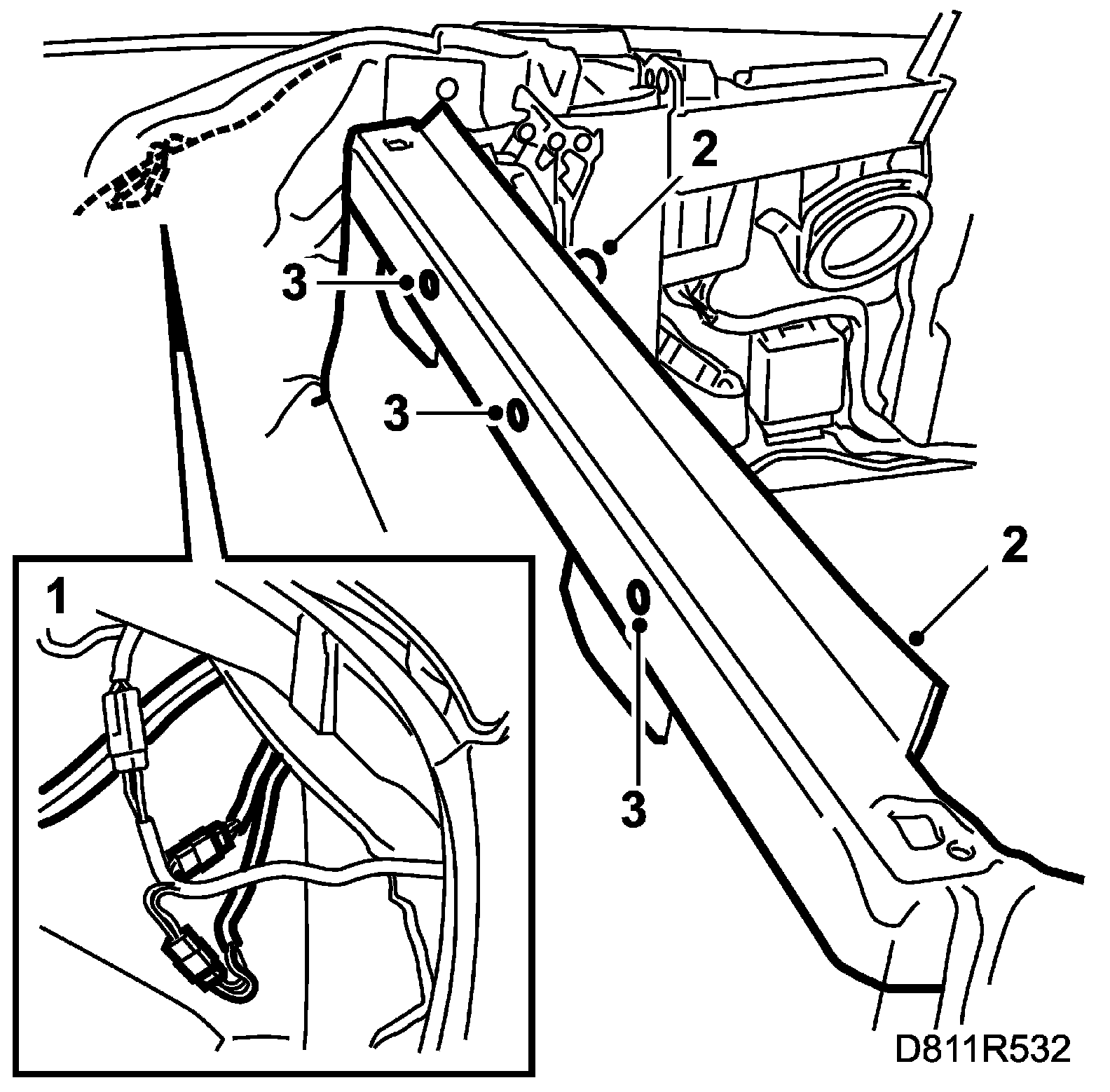

1. Fit the soft top storage and plug in the connectors.
2. Insert the lead through and refit the velcro strip.
3. Fit the plastic clips.

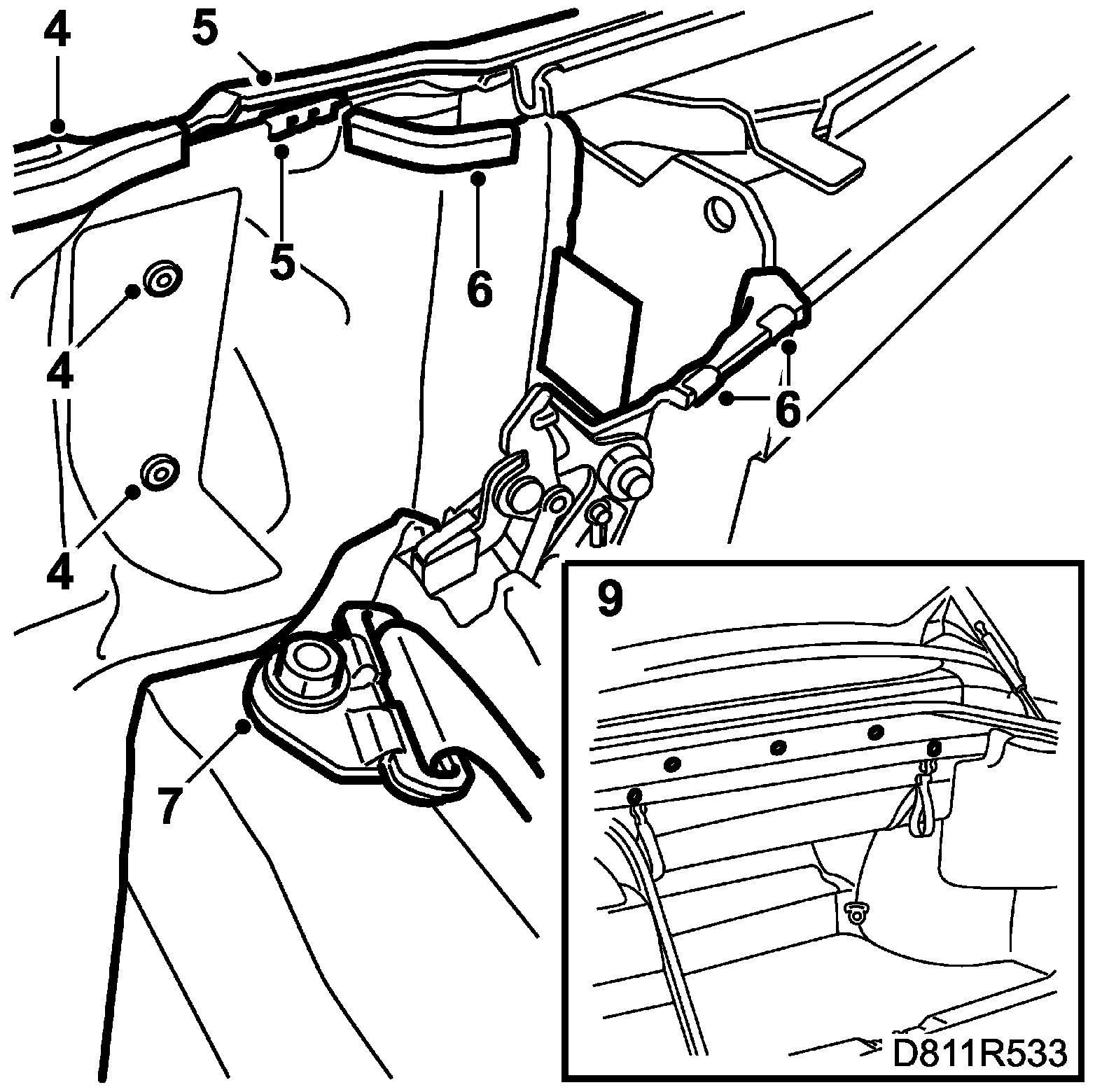

4. Fit the soft top cover seal strip and fit the clips on the side protectors.







5. Lift up the rear part of the outer window seal and fit the clip under the moulding.
6. Fit the clip in the body and fit the front moulding.
7. Fit the seat belts.
8. Fit the soft top.
9. Open the boot lid and tighten the bolts. Fit the clips.
