Strap Guide Cover

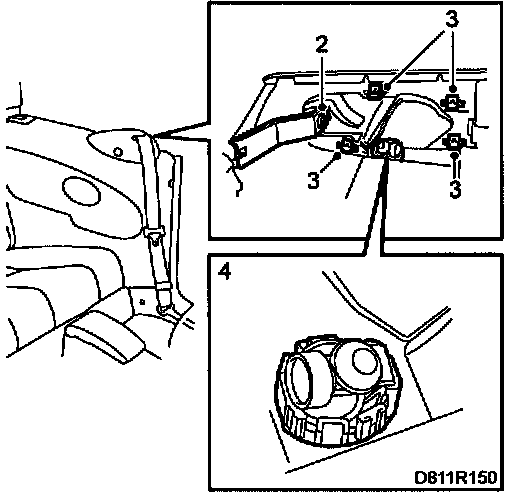

Removing







1 Remove the rear side upholstery.
2 Remove the bolt that secures the strap guide cover.
3 Remove the clips securing the strap guide cover and remove it from the upholstery.
4 Remove the interior lighting from the strap guide cover.

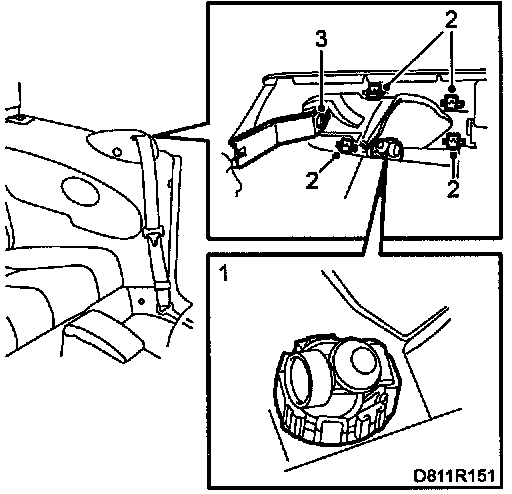

Fitting







1 Fit the interior lighting in the strap guide cover.
2 Fit the strap guide cover on the upholstery and fasten the clips.
3 Tighten the bolt.
4 Refit the side upholstery.
