Soft Top Storage

Removing

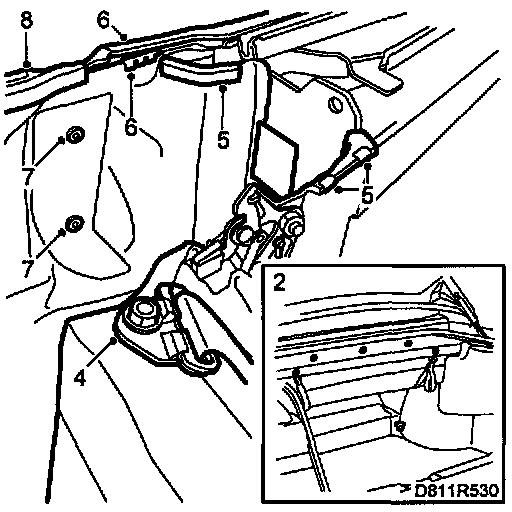

1 Open the boot lid.







2 Remove the clips and loosen the bolts, close the boot lid.
3 Remove the soft top.
4 Remove the upper mountings for the seat belts.
5 Remove the front moulding and the two clips from the body.
6 Lift up the rear part of the outer window seal and remove the clip under the moulding.
7 Tap in the pins on the clips on the side protectors and pull out the clips.
8 Remove the soft top cover seal strip.







9 Remove the plastic clips.

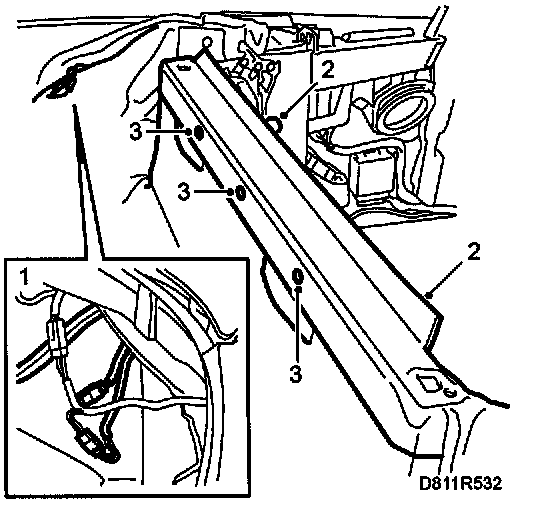

10 Push out the cable leadthrough and lift up the velcro strip.
11 Unplug the connectors.
12 Lift out the soft top storage.

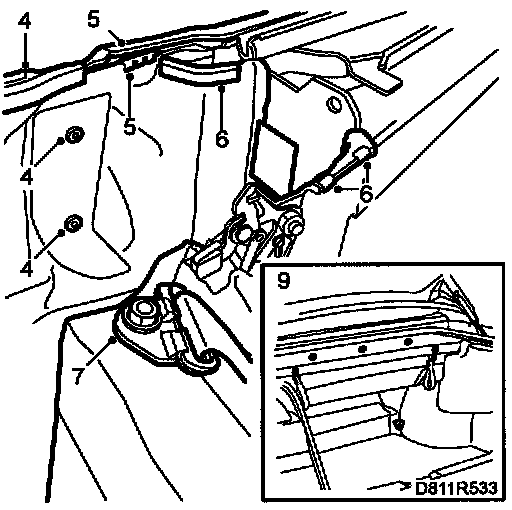

Fitting







1 Fit the soft top storage and plug in the connectors.
2 Insert the leadthrough and refit the velcro strip.
3 Fit the plastic clips.







4 Fit the soft top cover seal strip and fit the clips on the side protectors.
5 Lift up the rear part of the outer window seal and fit the clip under the moulding.
6 Fit the clip in the body and fit the front moulding.
7 Fit the seat belts.
8 Fit the soft top.
9 Open the boot lid and tighten the bolts. Fit the clips.
