Soft Top Cover

Removing

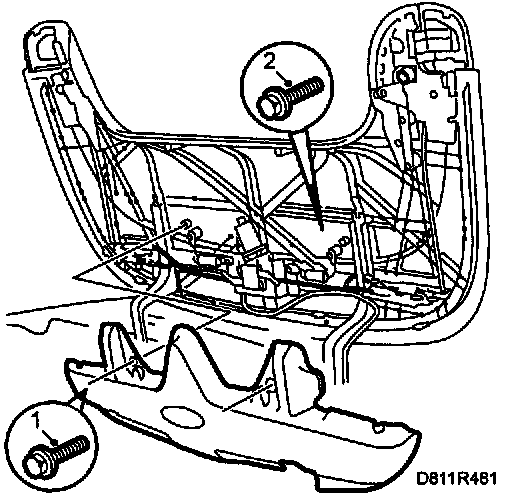

1 Remove the shell from the underside of the soft top cover.







2 Remove the screws that secure the collision cables to the soft top cover.

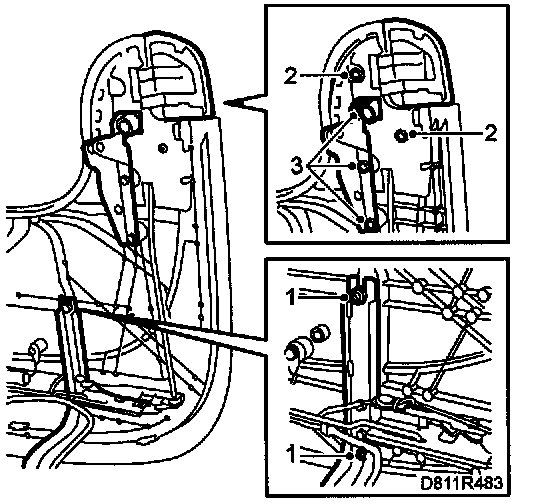

3 Mark the position for the screws securing the soft top cover latches.
4 Remove the screws and lift away the latches.
5 Remove the screws securing the access flaps. Loosen the flaps and turn them aside.
6 Mark the position for the soft top cover retaining nuts.
7 Remove the soft top cover retaining nuts and lift away the cover.

Fitting

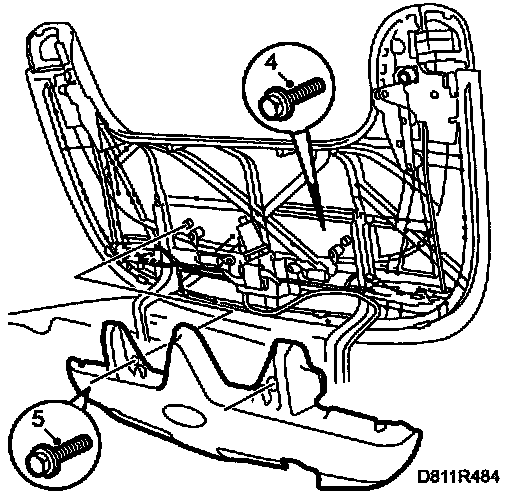

1 Fit the soft top cover and tighten the retaining nuts according to the marking.
2 Fit the access flaps and tighten the screws.
3 Fit the latches and tighten down according to markings.







4 Fit the collision cables and tighten the screws. The end sleeves on each respective cable should point at each other.
Tightening torque: 14 Nm (10.3 lbf ft)
5 Refit the shell.
