Rear Seat Belt-Buckle

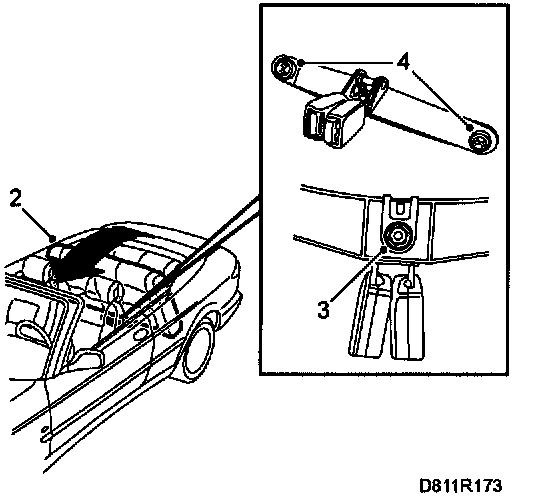

Removing







1 Remove the rear seat cushion.
2 Fold the backrest cushion forward halfway so that the bolts securing the belt-buckle are accessible.
3 Remove the nut securing the belt-buckle.
4 Remove the bolts securing the belt-buckle bracket.

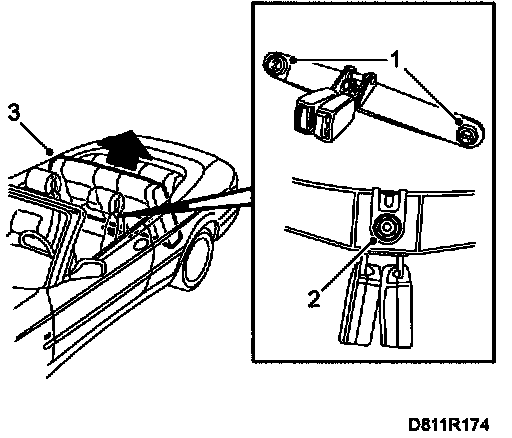

Fitting







1 Fit the belt-buckle bracket and tighten the bolts.
Tightening torque: 45 Nm (33.3 lbf ft)
2 Fit the belt-buckle and tighten the nut.
Tightening torque: 45 Nm (33.3 lbf ft)
3 Refit the seat cushion.
