Lock Fitting/Switch Windscreen Crossmember

Removing
The following describes removal of the microswitch on the left side. The right microswitch is removed using the same method.

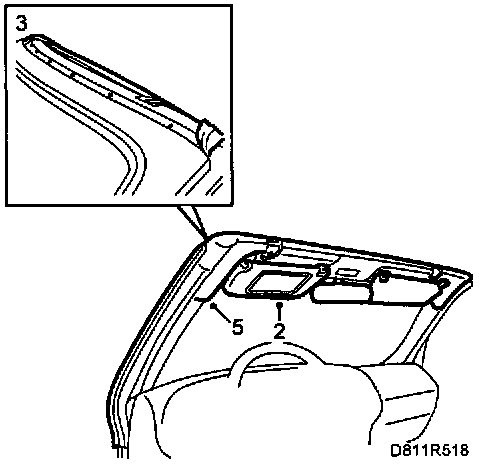

1 Lower the soft top.







2 Remove the sun visor and the visor support.
3 Loosen the windscreen frame seal so that the bolts securing the top part of the windscreen moulding can be accessed.
4 Remove the bolts.
5 Slightly pull down the windscreen frame moulding and

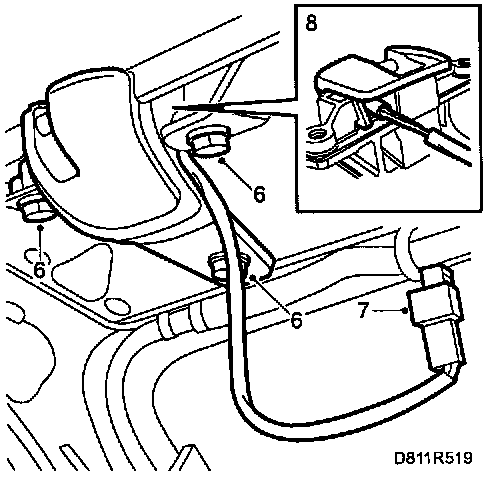

6 Remove the bolts that secure the lock fitting.
7 Unplug the connector and remove the lock fitting.
8 Bend out the clips and pull out the switch.

Fitting

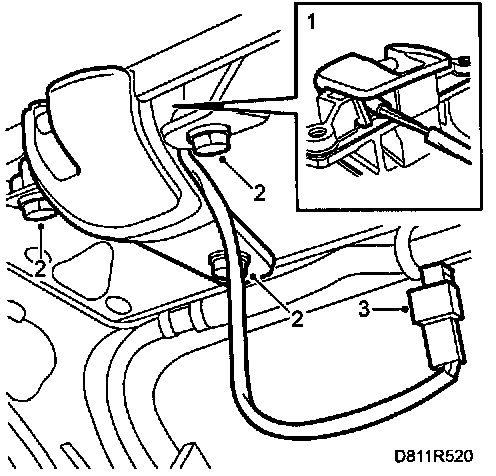

1 Fit the switch in the lock fitting and bend back the clips.
2 Fit the lock fitting on the windscreen frame and tighten the bolts.
3 Plug in the connector.

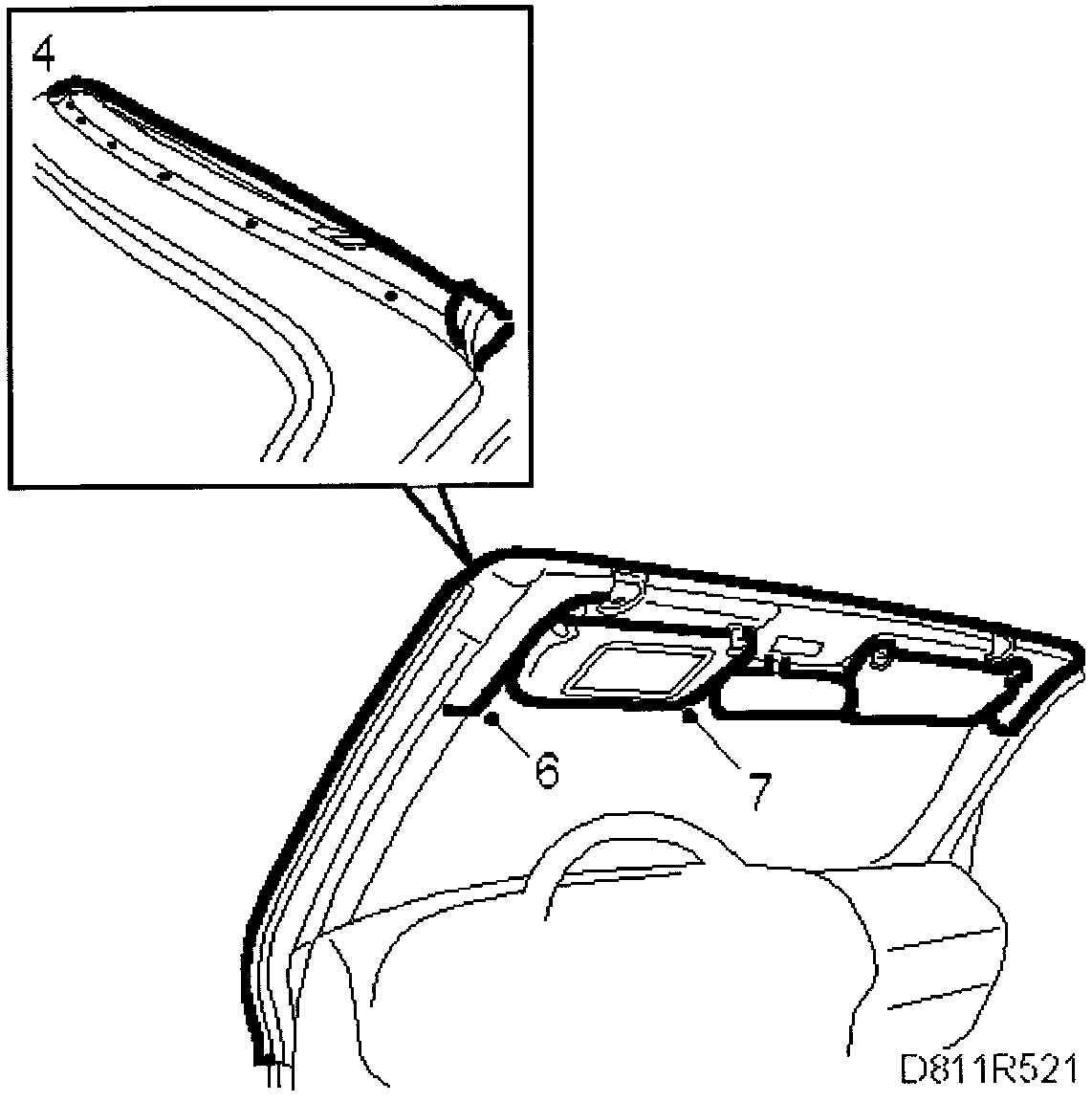

4 Fit the upper part of the windscreen frame moulding and then tighten the bolts.
5 Refit the windscreen frame seal.
Use only soapy water to facilitate fitting of the seal.
6 Fit the lower part of the windscreen frame moulding.
7 Refit the sun visor and the support.
8 Connect the diagnostics tool and erase any diagnostic trouble code.
