Interior Lighting Rear Seat

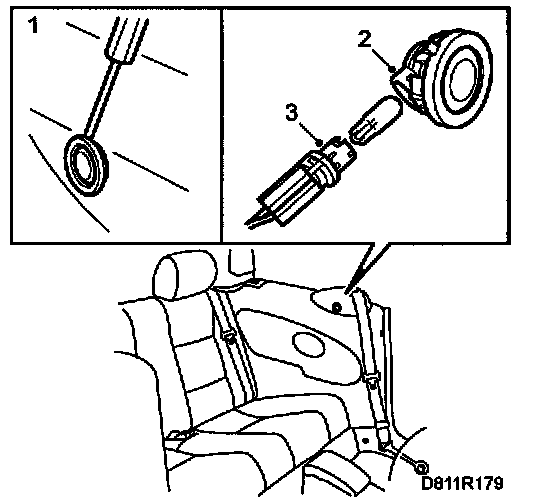

Removing







1 Loosen the light by carefully bending it loose with a small screwdriver. Protect the guide strap cover from any damage.
2 Remove the glass from the bayonet fitting and retain the bulb.
3 Unplug the connector and remove the bulb holder.

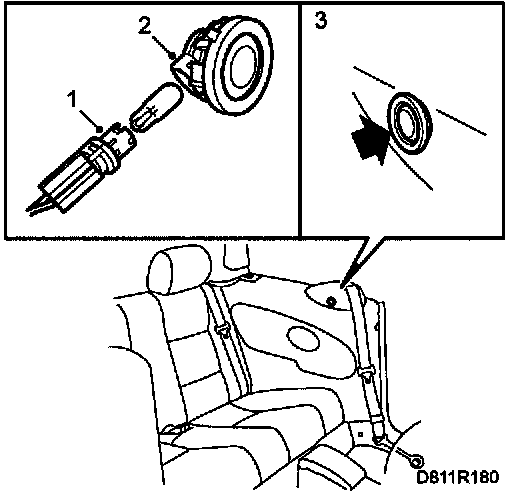

Fitting







1 Plug in the connector.
2 Fit the bulb and the glass.
3 Fit the light in the strap guide cover.
