Head Restraints




Removing

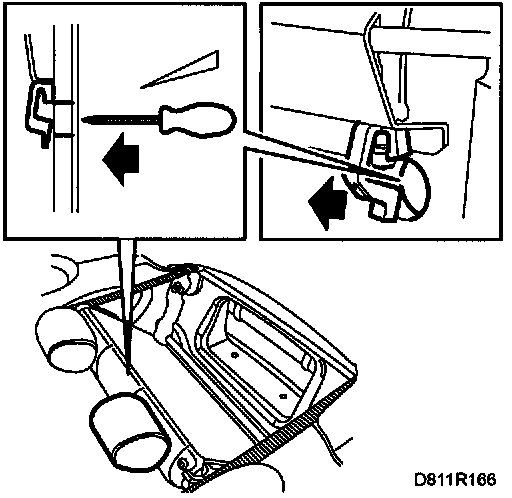

1 Release the head restraint lock by pressing a small screw driver through the upholstery on the cushion, by the round holes inside the upholstery. Use a small and narrow screwdriver so no marks are left on the upholstery
2 Pull up the head restraints.

Fitting
1 Refit the head restraints.
