Front Seat Belt

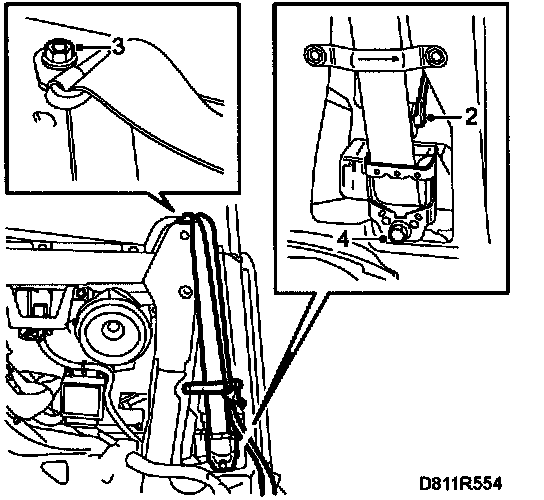

Removing
1 Remove the rear side upholstery.







2 Remove the connector for the belt tensioner
3 Remove the bolt securing the strap guide.
4 Remove the bolt securing the seat belt roll. Remove the seat belt and the belt tensioner.

Fitting







1 Fit the seat bolt roller and tighten the bolt securing it to the body.
Tightening torque: 45 Nm (33.3 lbf ft)
2 Tighten the bolt securing the strap guide.
Tightening torque: 45 Nm (33.3 lbf ft)
3 Plug in the connector for the belt tensioner.
4 Refit the side upholstery.
