Fourth Bow

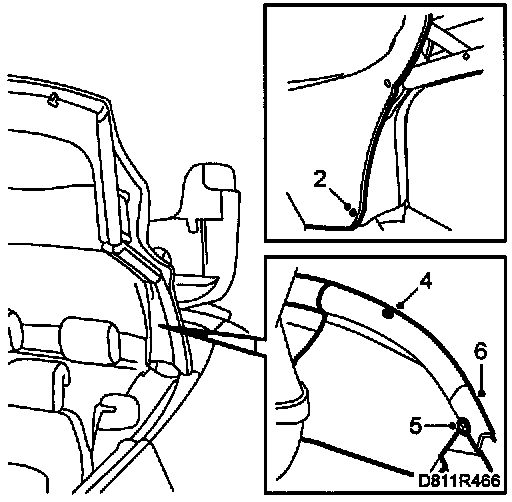

Removing







1 Move the soft top so that the soft top cover and fifth bow are raised.
2 Remove the bottom screw for the headlining.
3 Protect the top fabric against damage that can be caused by the drill by placing plastic protection between the top fabric and the fourth bow.
4 Drill out the pop rivet.
5 Remove the screws securing the fourth bow.
6 Carefully tap out the bow from the brackets.
7 Pull out the bow from the bases.
8 Thoroughly vacuum all drill burrs from the headlining and the car.

Fitting







1 Insert the bow into the bases.
2 Fit it on the mounts and fasten to the soft top mechanism with the screws. Use thread locking compound.
3 Pop rivet the bases to the bow.
4 Fasten the headlining.
