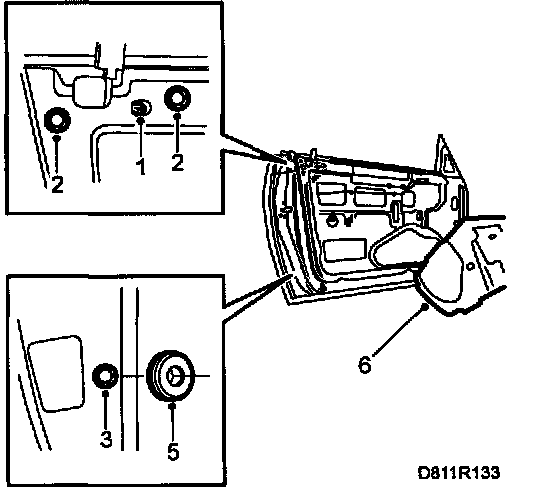

Door Window Rear Guide Rail

Removing
1 Remove the door trim.







2 Fold down the water barrier.
3 Raise the window completely.
4 Remove the rubber plug from the bottom of the door end.
5 Note the position and remove the rear guide rail adjusting screw.
6 Remove the bolts securing the upper end of the guide rail.
7 Carefully bend out the window and unhook the upper end of the guide rail from the door panel.
8 Lift up the guide rail and pull it away from the plastic bushings at the rear edge of the window.

Fitting







The window must be raised when work is started.
1 Hold out the window slightly and fit the guide rail onto the plastic bushings. Hook the rail in the hole in the door panel.
2 Tighten the bolts that secure the upper end of the guide rail.
3 Tighten the adjusting screw at the guide rail lower end according to the marking.
4 Adjust the window.
5 Fit the rubber plug.
6 Refit the water barrier.
7 Refit the door trim.
