Door Window

Removing
1 Remove the door upholstery.
2 Lower the window.







3 Remove the cover at the upper rear corner of the door.

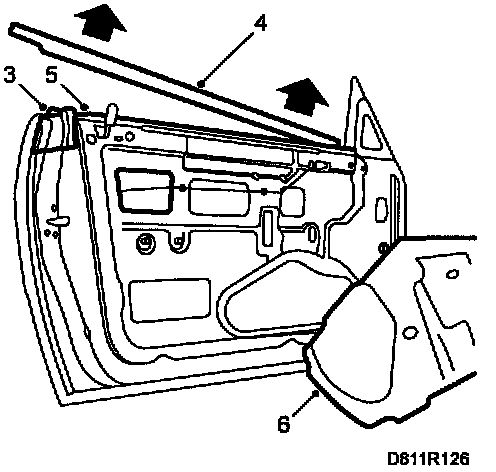

4 Remove the outer window seal. The seal is secured by a clip at the rear end.
5 Remove the inner window seal.
6 Fold down the water barrier.

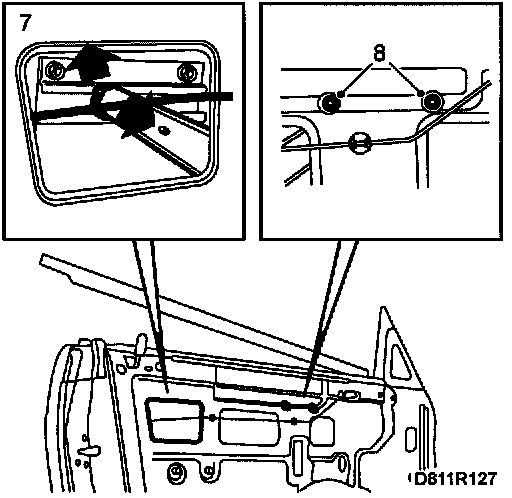

7 Remove the clip and remove the window lift lever from the runner in the aluminium rail on the window.
8 Remove the bolts securing the window to the lift mechanism.
9 Lift the window out of the door. Hold the window lift mechanism away from the window to facilitate lifting.

Fitting







1 Raise the window lift mechanism.

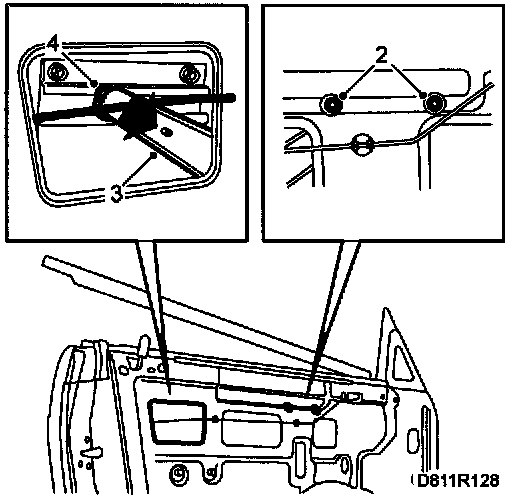

2 Guide in the plastic bushings on the window in the rear window guide rail. Lower the window slightly and tighten the bolts that secure the window to the lift mechanism.
3 Fit the lift mechanism lever to the runner in the aluminium rail.
4 Fit the clip.
5 Adjust the door window.

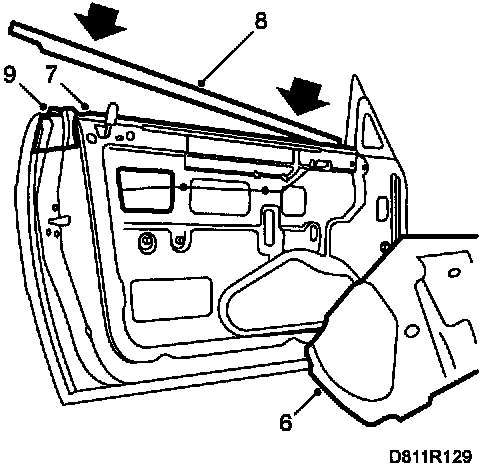

6 Fit the water barrier.
7 Fit the inner window seal.
8 Fit the outer window seal. Fit the clip at the rear end.
9 Refit the cover at the upper rear corner of the door.
10 Refit the door upholstery.
