Control Linkage Between Front and Centre Rails

Removing

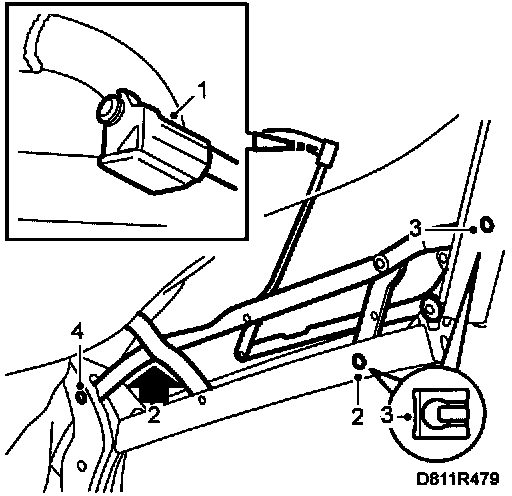

1 Operate the soft top to half open position and position the soft top support special tool (16) 82 93 144 so that the soft top does not fall when the hydraulic pressure is released.

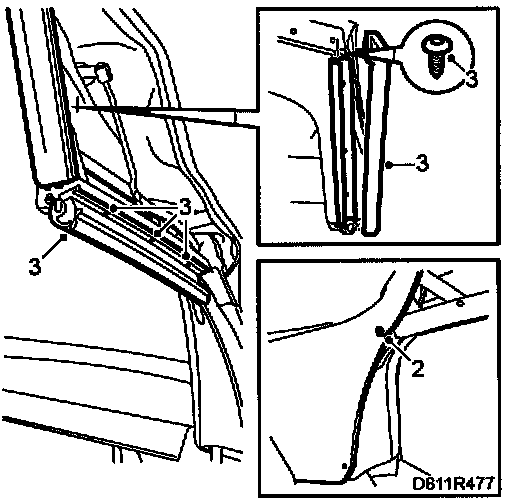

2 Remove the upper screw for the headlining
3 Remove the seals and the seal retainers on the front and centre rails.







4 Remove the screw securing the rear linkage to the rear rail.
5 Remove the clips and stub axles securing the control linkage to the first bow and centre rail.
6 Remove the stop lug and tap out the second bow from the guide pin. Lift away the linkage.

Fitting

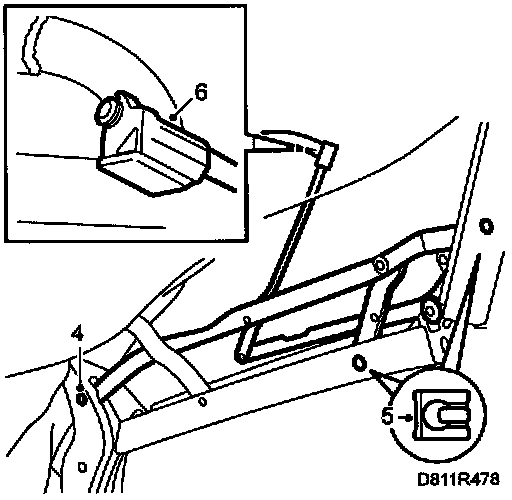

1 Fit the guide pin and stop lug in the second bow.
2 Check that the elastic ends up inside the rear linkage. Fit the stub axles in the first bow and the centre rail.
3 Fit the clips.

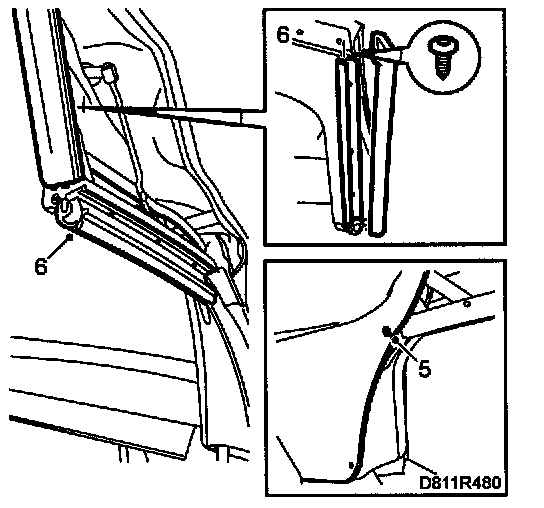

4 Fit the screw in the rear rail.







5 Fit the screw for the headlining.
6 Fit the seal retainers and the seals.
