Backrest Upholstery

Removing

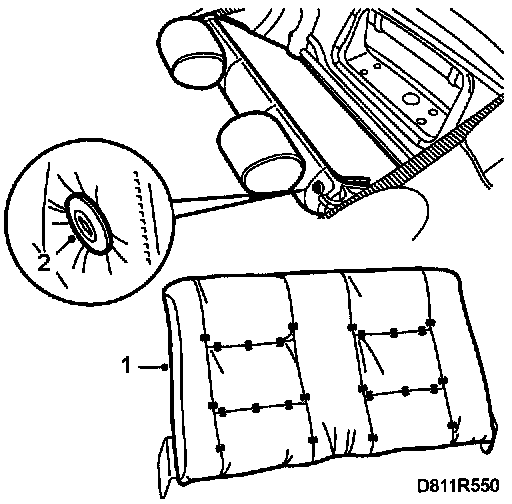

1 Lift the backrest cushion out of the car.

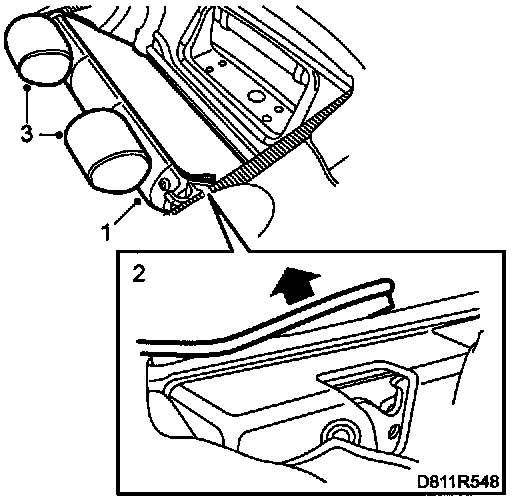

2 Remove the upholstery from the rear of the backrest cushion.
3 Remove the head restraints.







4 Loosen the upholstery by the lock.
5 Loosen the upholstery from the staples and lift away the upholstery.

Fitting

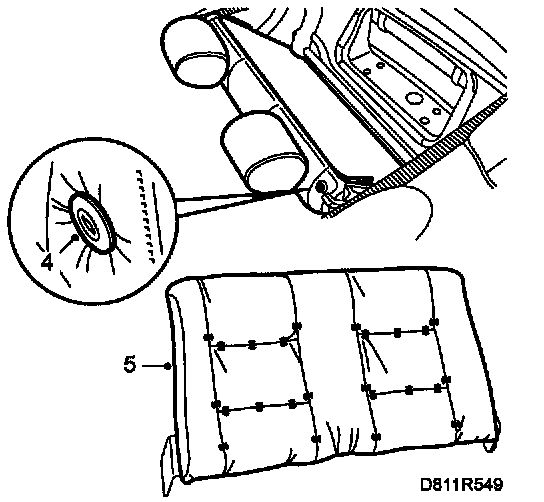

1 Fit the upholstery and hook on the staples.

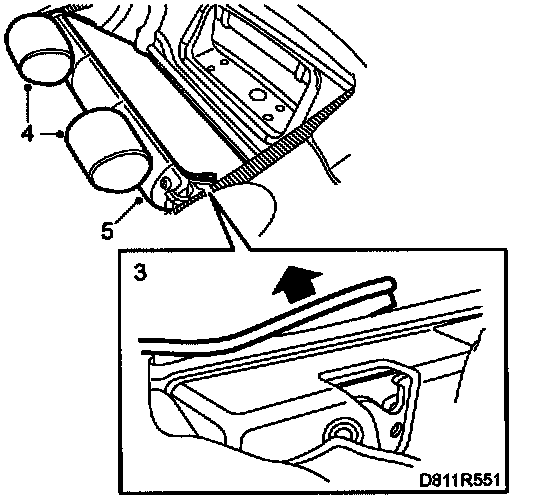

2 Fit the upholstery by the lock cylinder.







3 Refit the upholstery on the rear of the backrest cushion.
4 Refit the head restraints.
5 Fit the back rest cushion in the car.
