Backrest Cushion

Removing

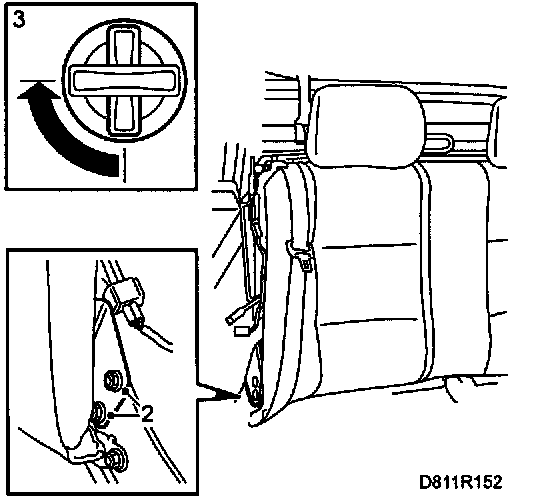

1 Remove the rear side trim.
2 Remove the bolts securing the backrest cushion.
3 Unlock the backrest cushion and remove it.

Fitting







1 Fit the backrest cushion and raise it completely.
2 Tighten the bolts securing the backrest cushion.
3 Refit the side trim.
