Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Diagrams >> Electrical Diagrams >> Window Lifts (Part 1)

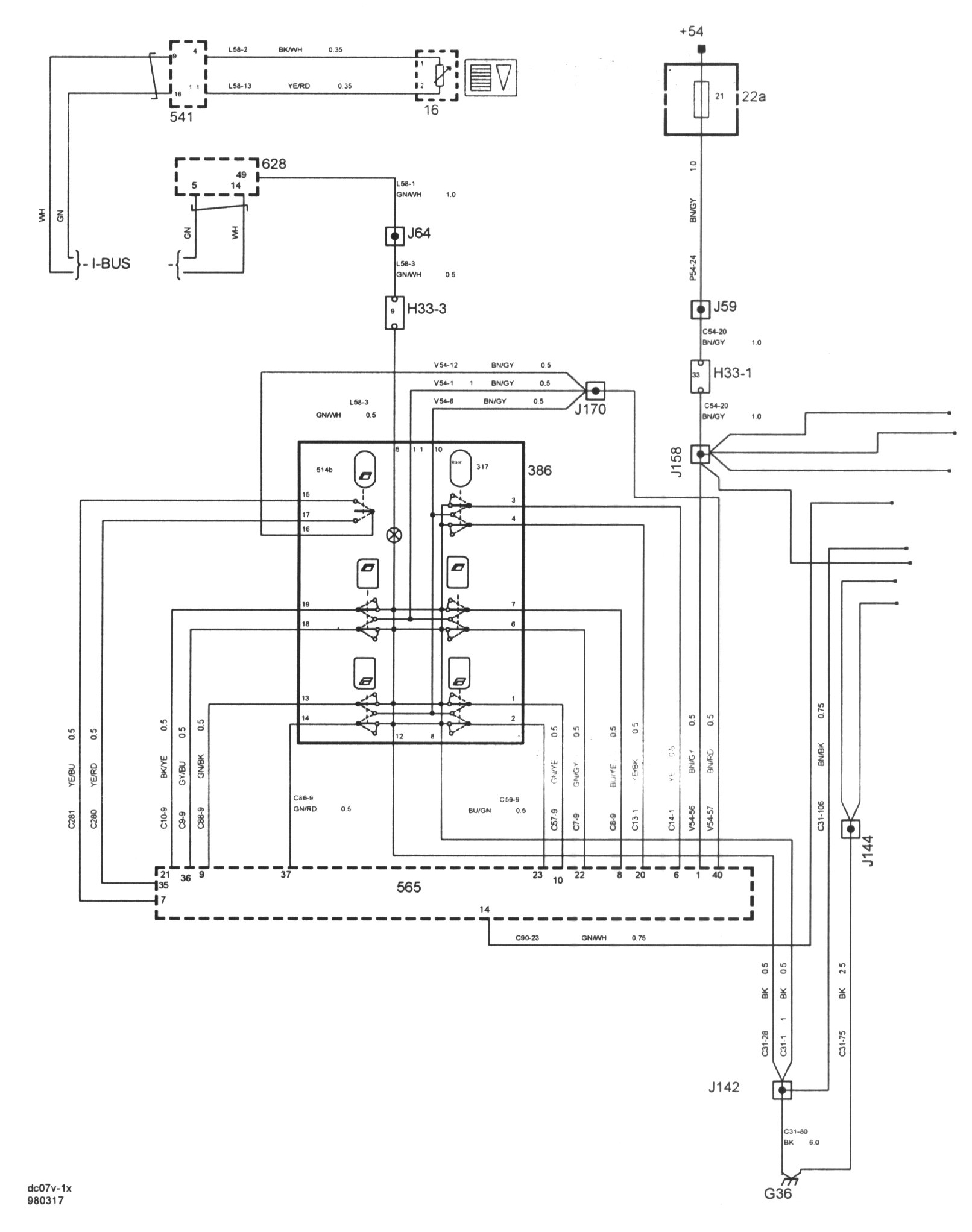

Window Lifts (Part 1)




Window Lifts (Part 1):

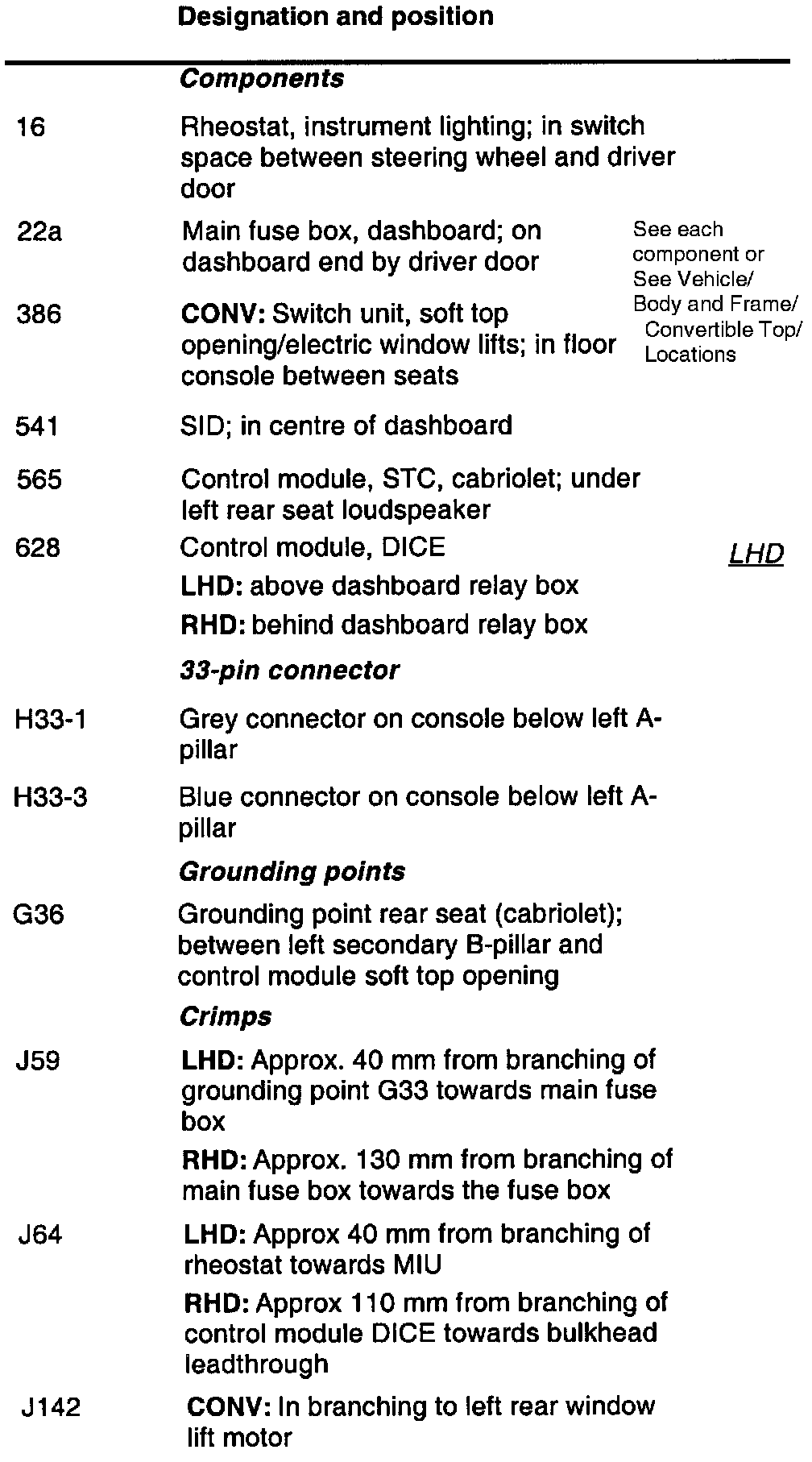

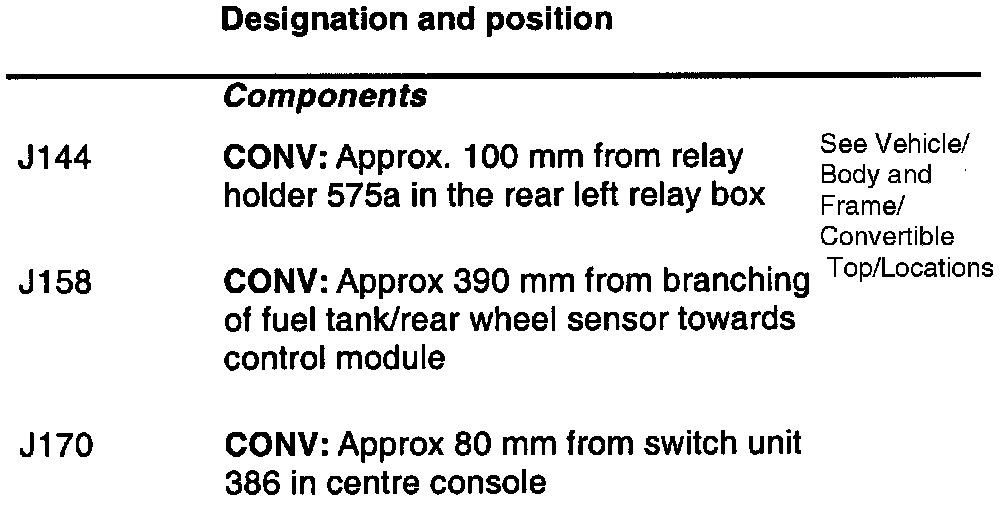

List of Components
