Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Diagrams >> Electrical Diagrams >> Electrically Operated Soft Top Opening (Part 2)

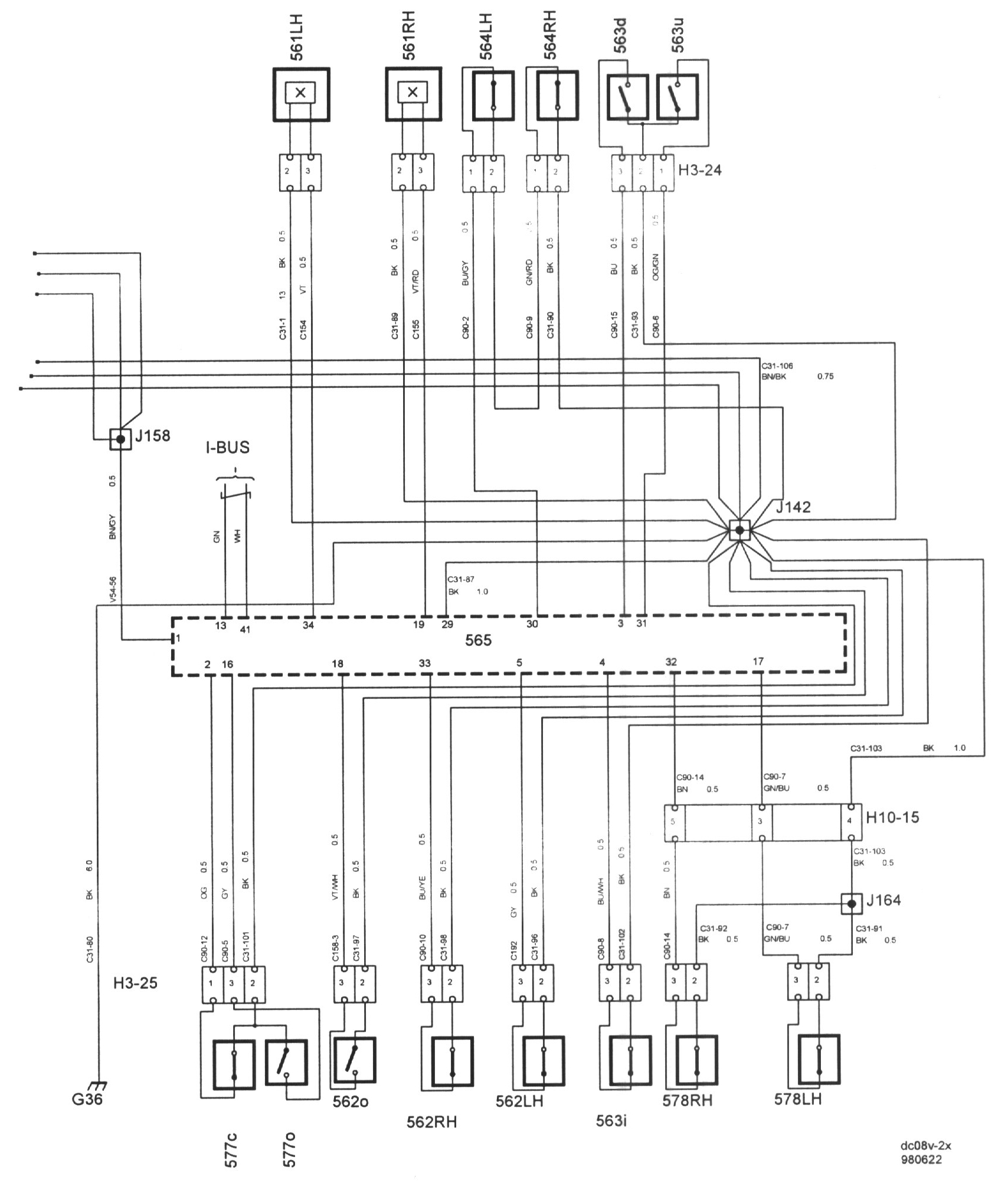

Electrically Operated Soft Top Opening (Part 2)




Electrically Operated Soft Top Opening (Part 2):

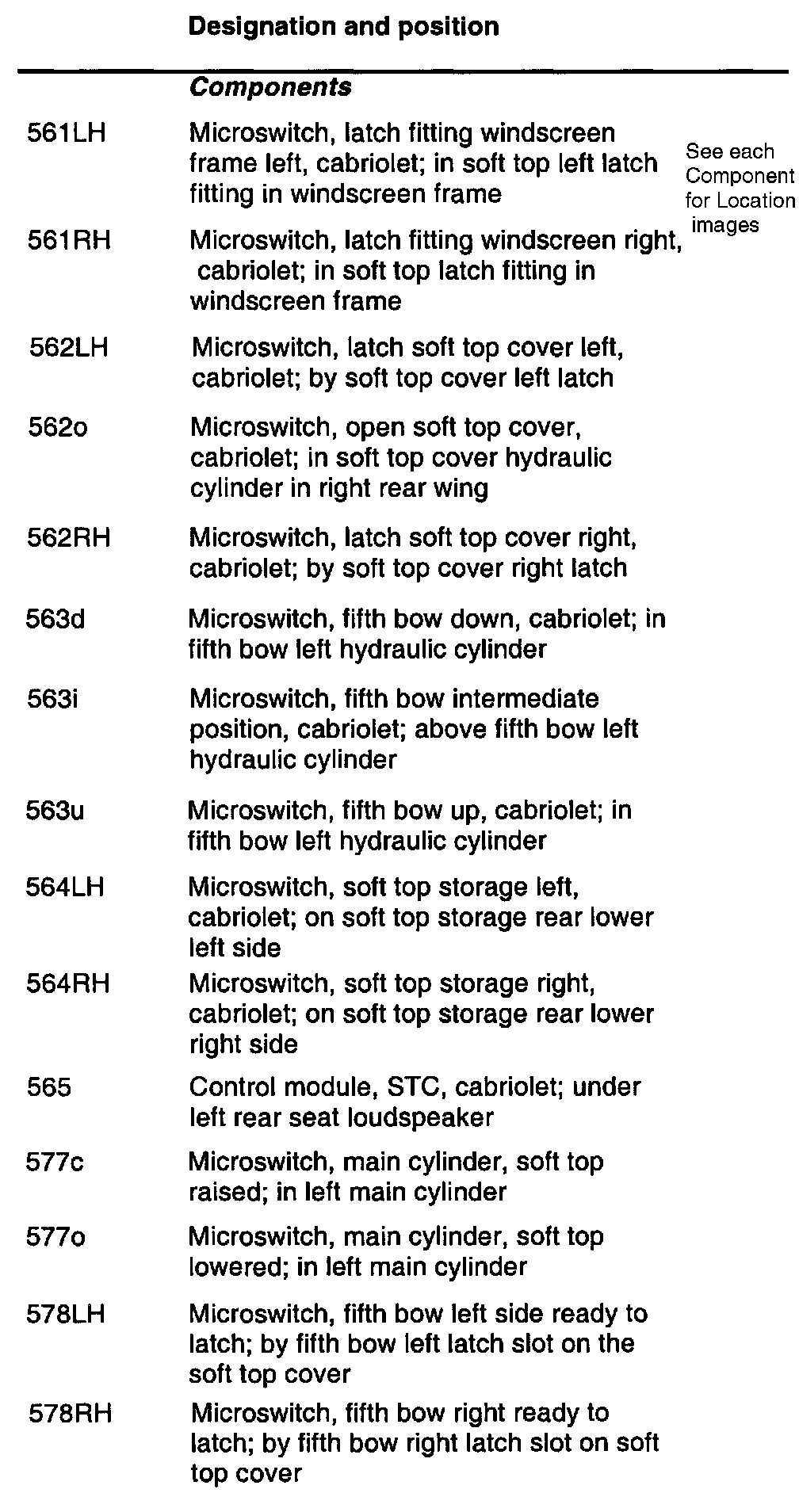

List of Components
