Soft Top

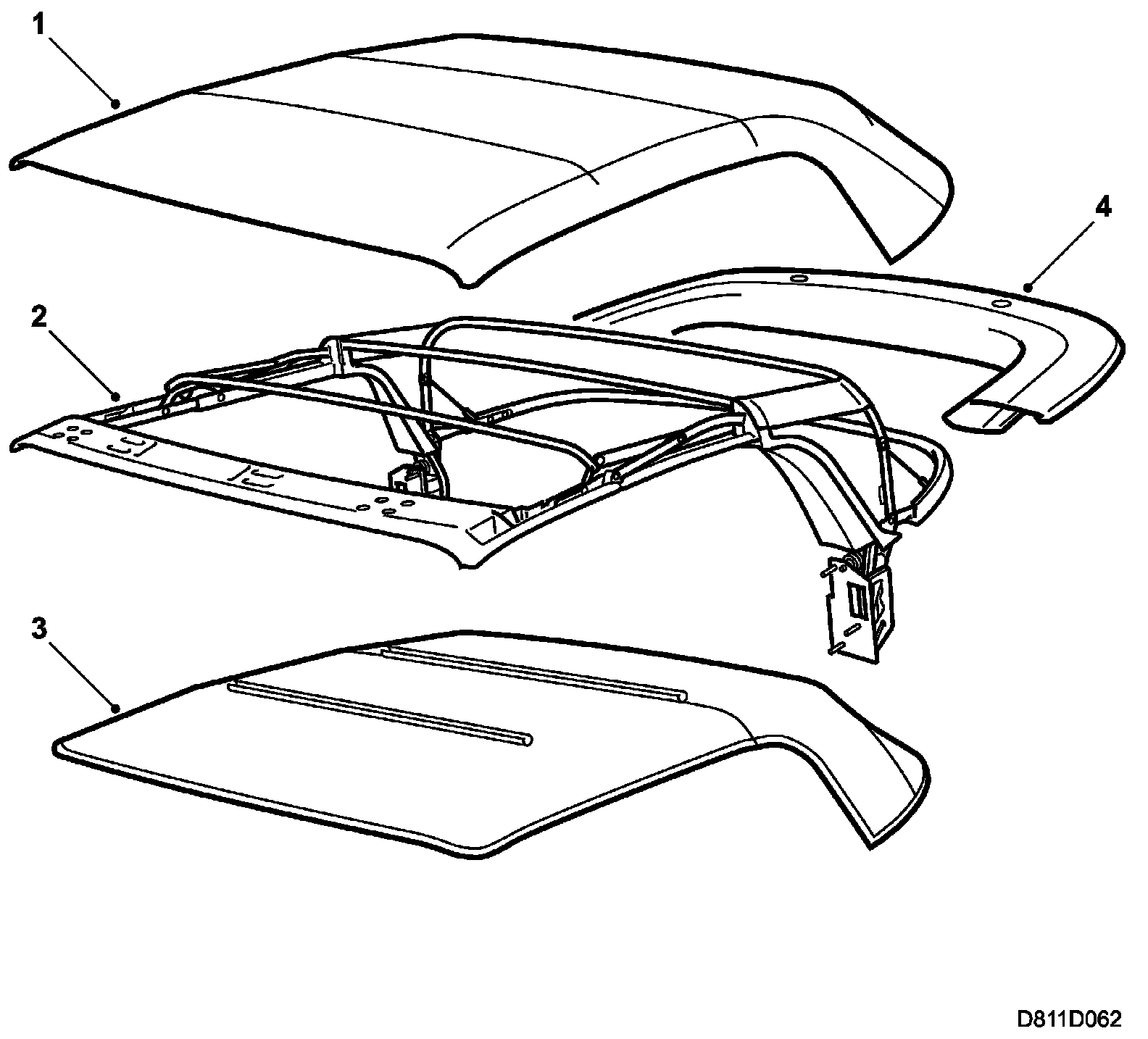

Soft Top







1. Outer roof
2. Soft top mechanism
3. Headlining
4. Soft top cover

The soft top comprises an outer roof with rear window of glass, a soft top mechanism and headlining. In its lowered position, the soft top is protected by the soft top cover.
