Main Components

Main Components

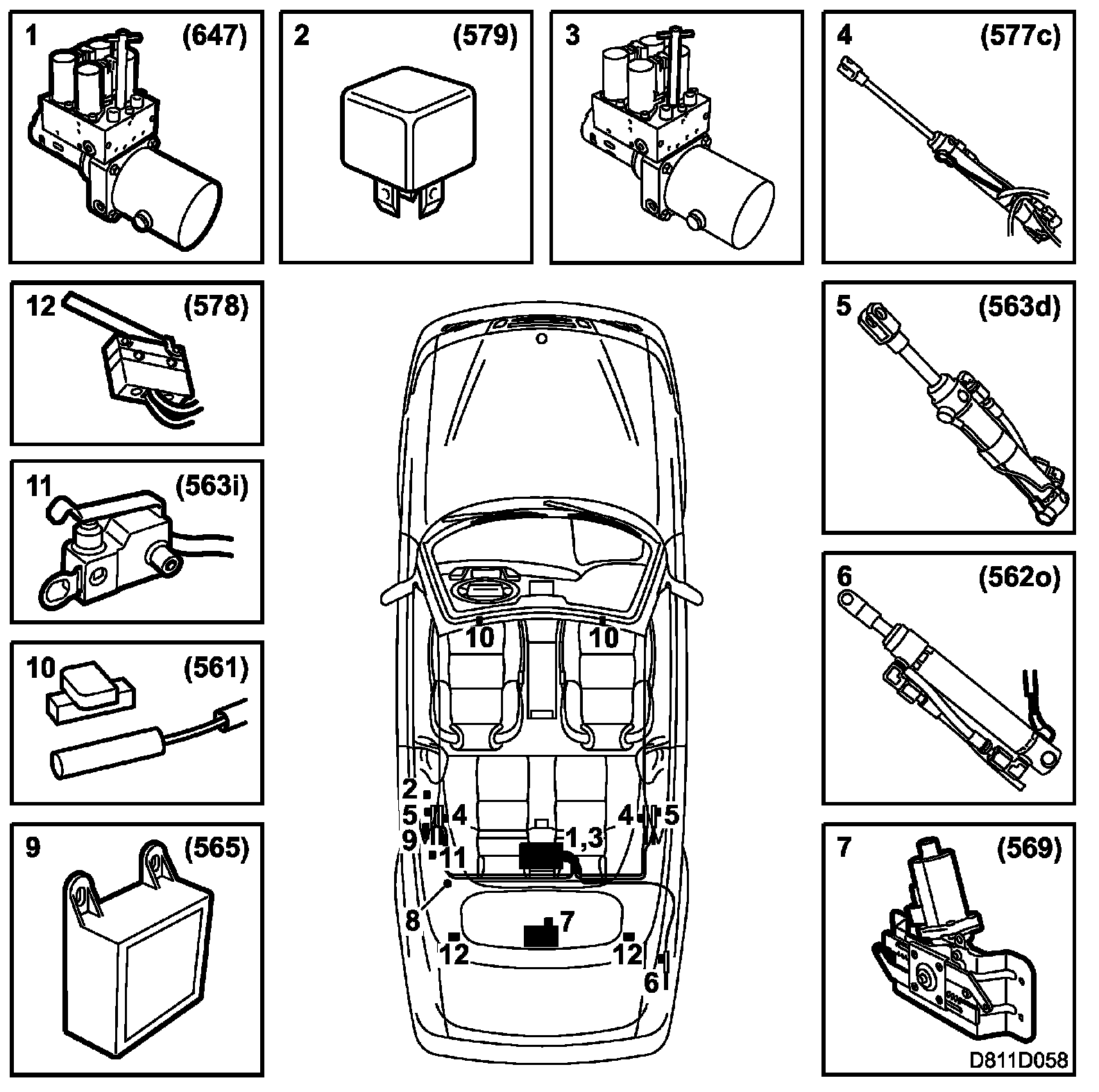

1. Hydraulic unit
2. Main relay, pump motor
3. Emergency operating valve
4. Main sequence hydraulic cylinder (2 pcs)
5. Fifth bow hydraulic cylinder (2 pcs)
6. Soft top cover cylinder
7. Fifth bow latch motor
8. Hydraulic hoses
9. Control module
10. Switches and permanent magnet in windscreen frame (2 pcs)
11. Microswitch for fifth bow intermediate position
12. Microswitch for fifth bow latch (2 pcs)

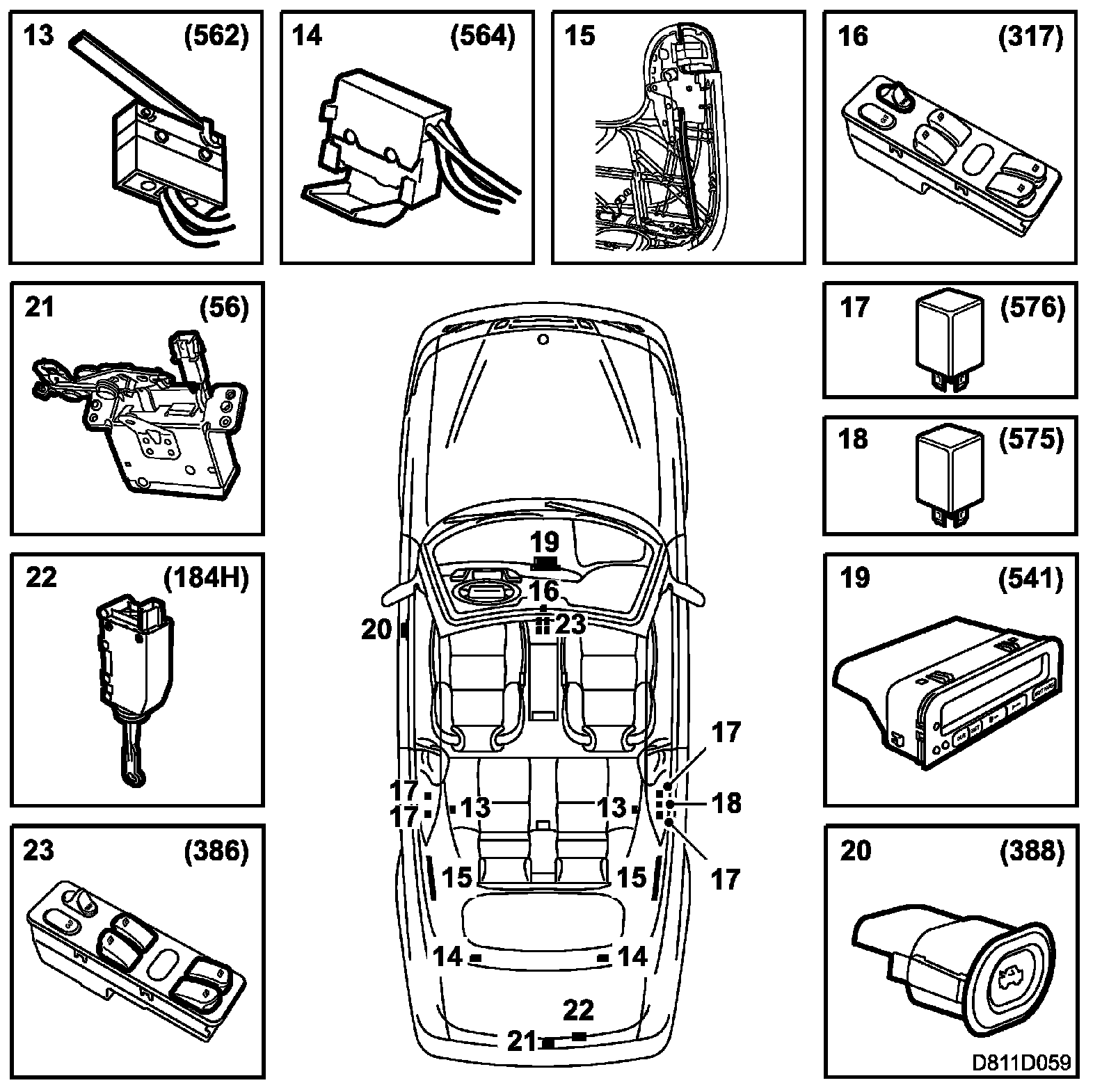

13. Microswitch for soft top cover latch (2 pcs)
14. Microswitch on soft top storage (2 pcs)
15. Swivel cables for soft top cover (2 pcs)
16. "ROOF" switch
17. Window relay (4 pcs)
18. Fifth bow latch relay
19. SID
20. Boot lid release button
21. Boot lid switch
22. Boot lid lock motor
23. Window lift switch
