Door and Boot Lid Seals

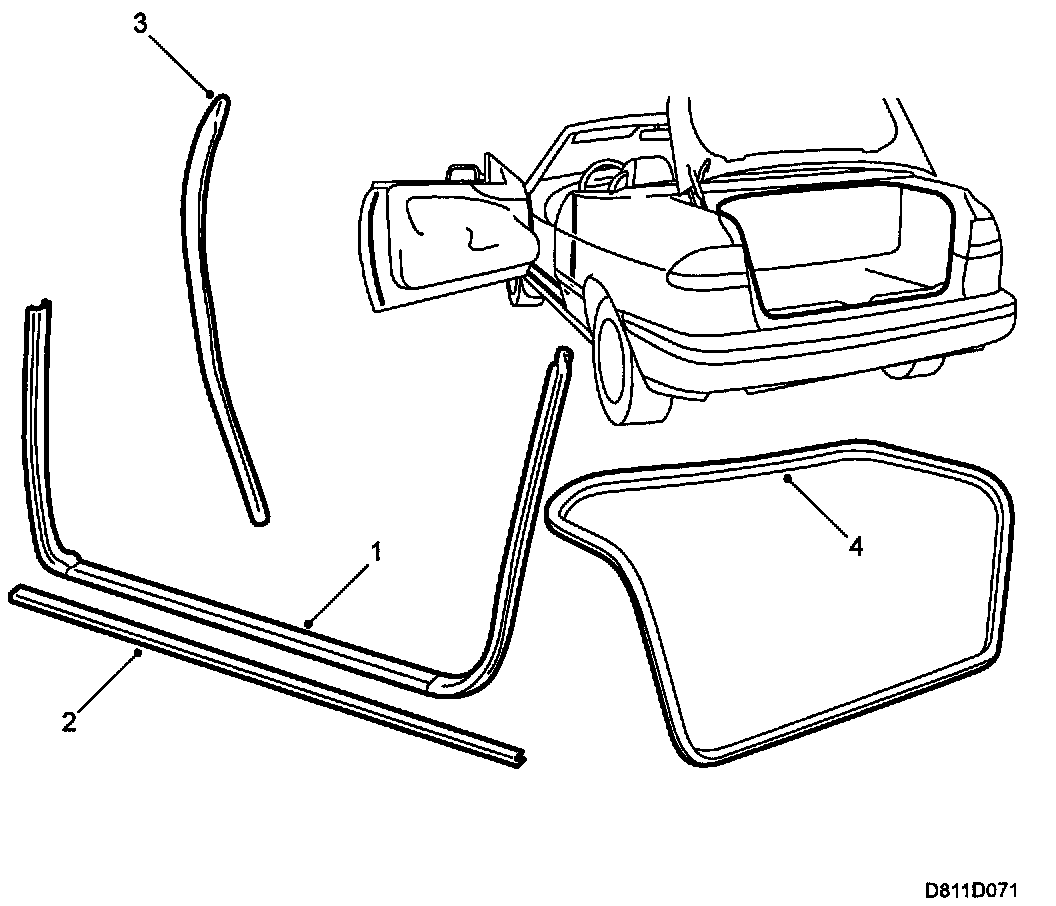

Door and Boot Lid Seals:

1 Door opening seal
Seals between the door and the A-pillar, sill and B-pillar. It is pressed onto a metal flange and secured to the sill with seven clips plus one clip on the rear end of the seal.

2 Sill seal
Seal between the bottom of the door and the sill. It is pressed onto weld screws in the sill.

3 Door opening, rear edge
Seals between the rear edge of the door and the B-pillar. It is secured with eight clips.

4 Luggage compartment opening
Seals between the boot lid and the luggage compartment. It is pressed onto the metal flange around the luggage compartment.
