Microswitch, Soft Top Storage

Microswitch, Soft Top Storage

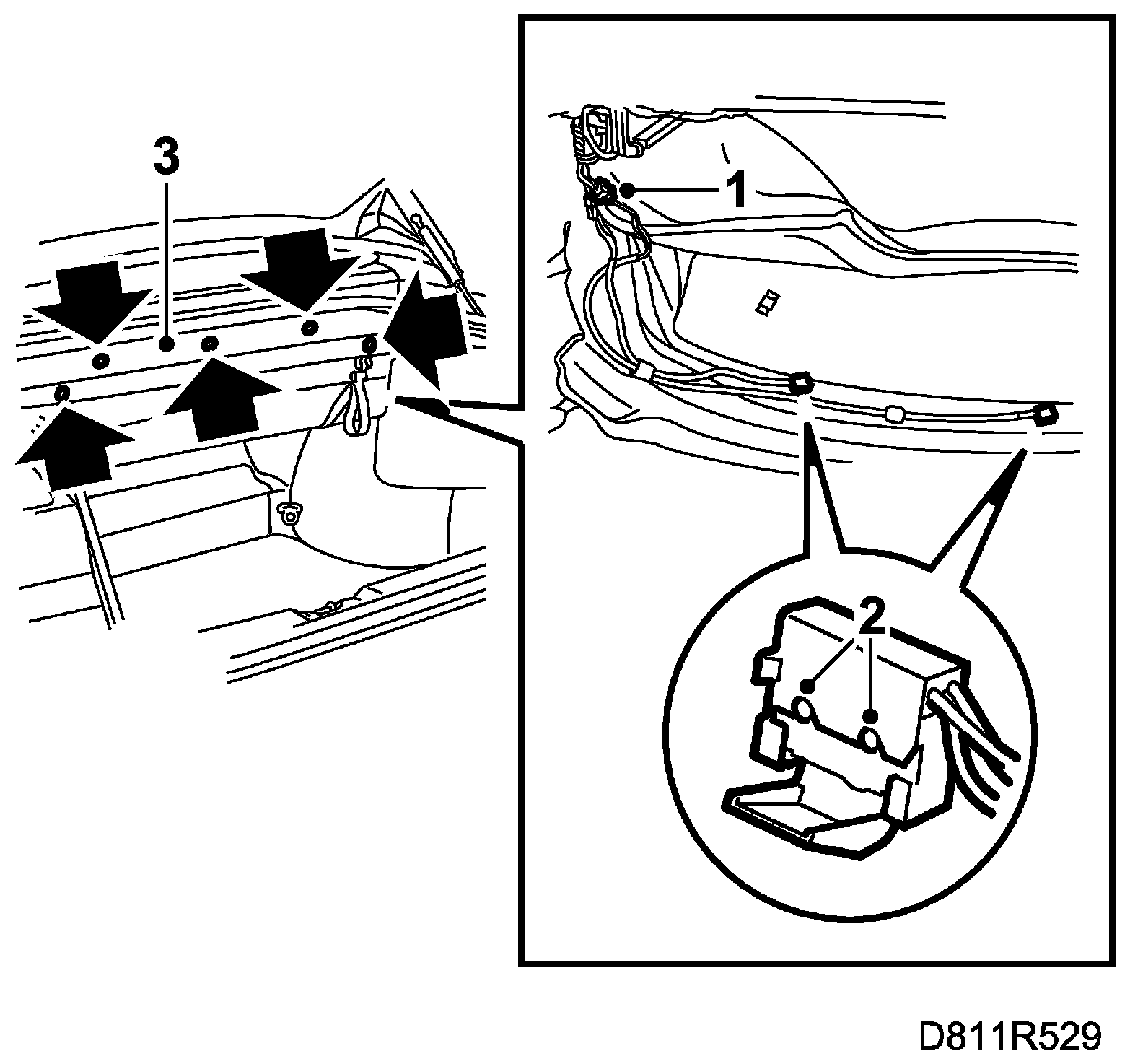

Removing
1. Loosen the top of the luggage compartment upholstery.







2. Remove the clip and lift up the microswitch.
3. Unplug the connector.

Fitting







1. Plug in the connector.
2. Fit the microswitch and fit the clip.
3. Refit the luggage compartment upholstery.
4. Connect the diagnostics tool and erase any diagnostic trouble code.
