Microswitch Fifth Bow Latch

Microswitch Fifth Bow Latch

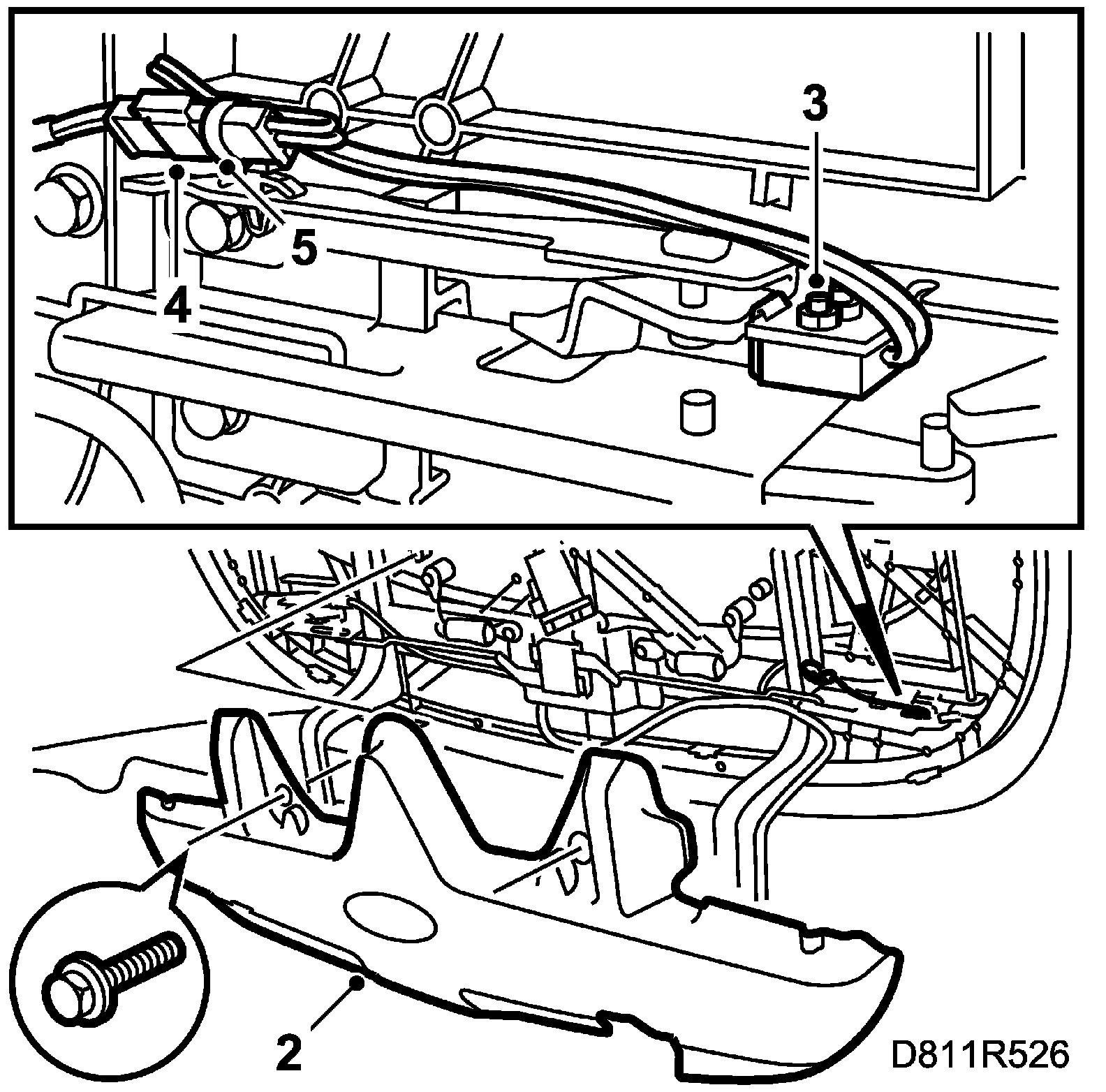

Removing







1. Raise the soft top cover.
2. Remove the covering shell.
3. Remove the bolts securing the microswitch.
4. Cut the cable tie securing the connector.
5. Unplug the connector.

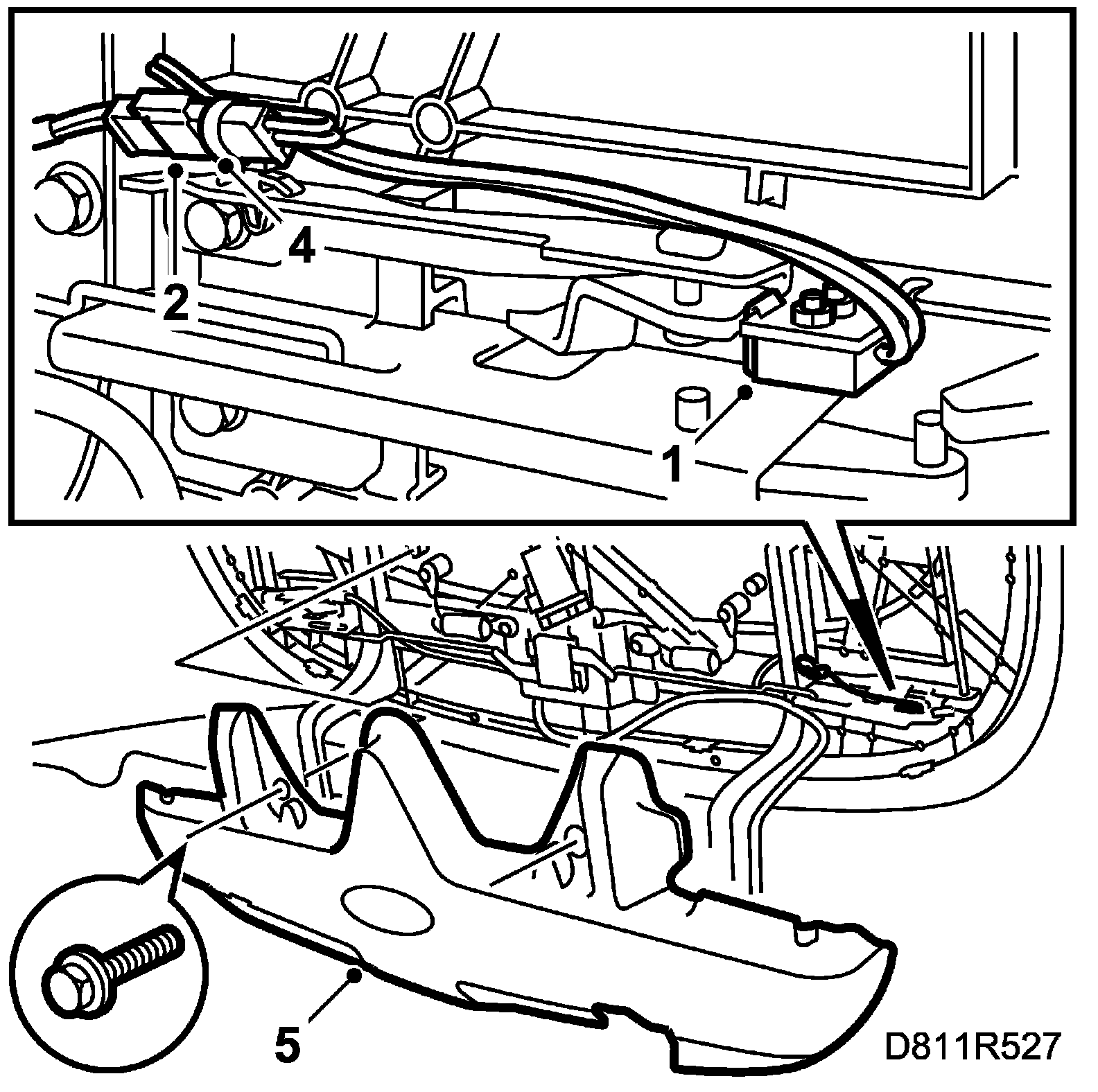

Fitting







1. Fit the microswitch and tighten the bolts.
2. Plug in the connector.
3. Check that the lever moves easily and comes into contact with the microswitch.
4. Secure the connector with a cable tie.
5. Fit the covering shell and tighten the bolts.
6. Connect the diagnostics tool and erase any diagnostic trouble code.
