Microswitch Fifth Bow Latch

Removing

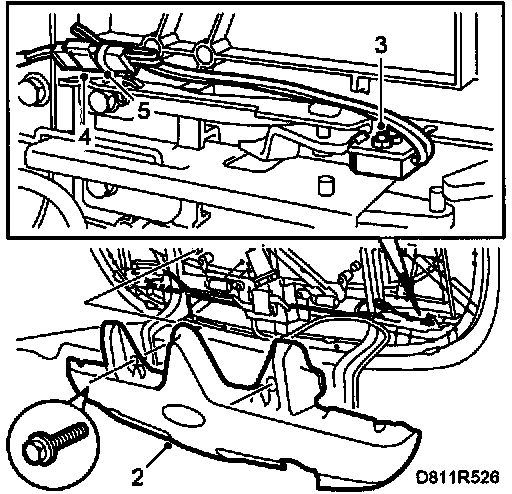

1 Raise the soft top cover.
2 Remove the covering shell.
3 Remove the bolts securing the microswitch.
4 Cut the cable tie securing the connector.
5 Unplug the connector.

Fitting

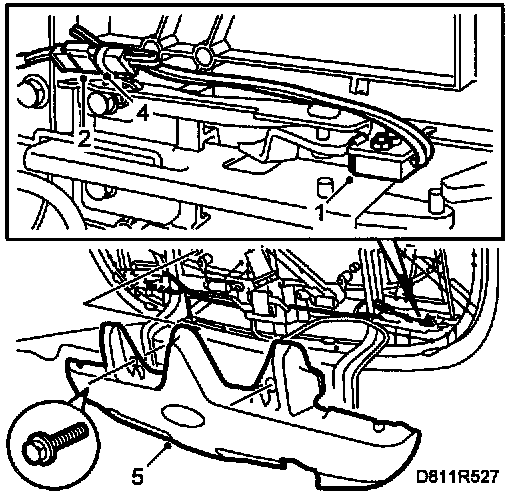

1 Fit the microswitch and tighten the bolts.
2 Plug in the connector.
3 Check that the lever moves easily and comes into contact with the microswitch.
4 Secure the connector with a cable tie.
5 Fit the covering shell and tighten the bolts.
6 Connect the diagnostics tool and erase any diagnostic trouble code.
