Microswitch, Soft Top Storage

Microswitch, soft top storage

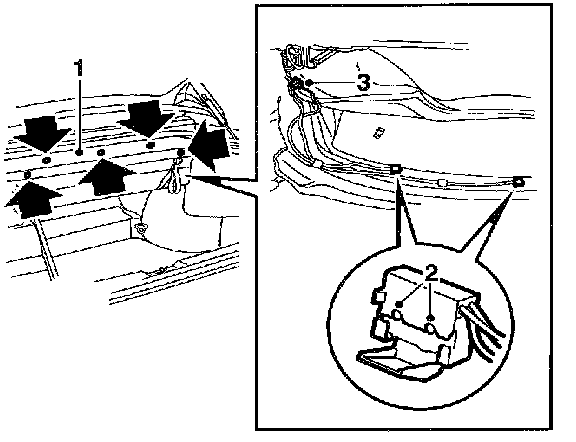

Removing







1 Loosen the top of the luggage compartment upholstery.
2 Remove the clip and lift up the microswitch.
3 Unplug the connector.

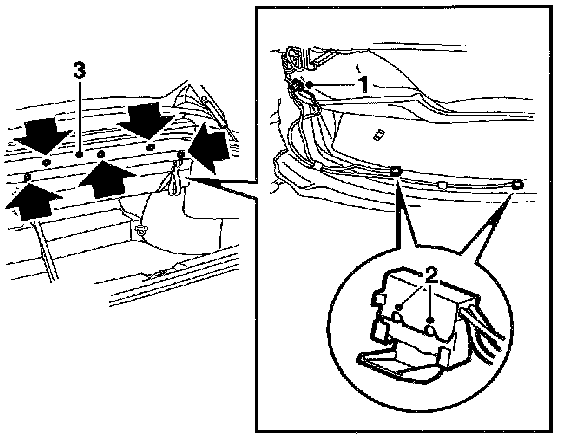

Fitting







1 Plug in the connector.
2 Fit the microswitch and fit the clip.
3 Refit the luggage compartment upholstery.
4 Connect the diagnostics tool and erase any diagnostic trouble code.
