Microswitch Soft Top Cover Latch

Microswitch soft top cover latch

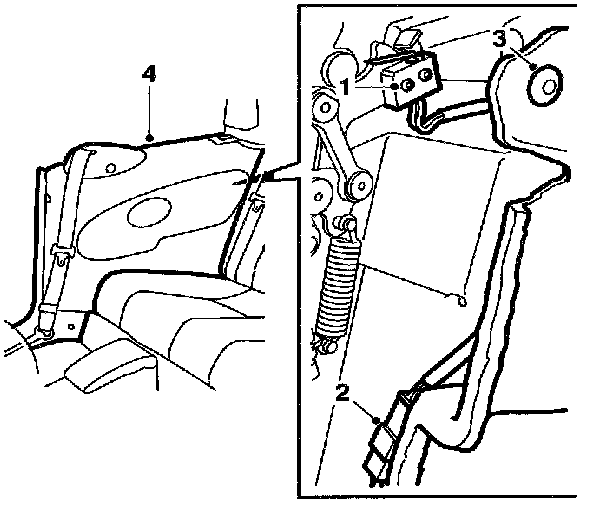

Removing

The following describes how the right microswitch is removed. Left microswitch is removed using the same method.







1 Remove the rear side upholstery.
2 Remove the clip for the rear upholstery and remove the upholstery.
3 Remove the bolts securing the microswitch.
4 Unplug the connector and remove the microswitch.

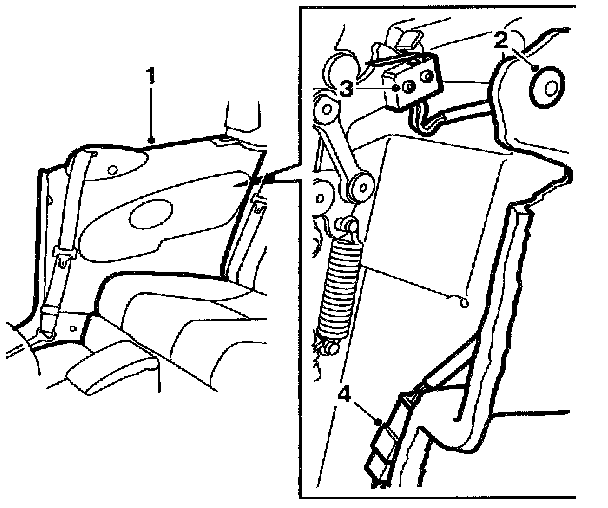

Fitting







1 Fit the microswitch and tighten the bolts.
2 Plug in the connector.
3 Fit the rear upholstery.
4 Refit the rear side upholstery.
5 Connect the diagnostics tool and erase any diagnostic trouble code.
