Convertible Top Hydraulic Hose: Application and ID

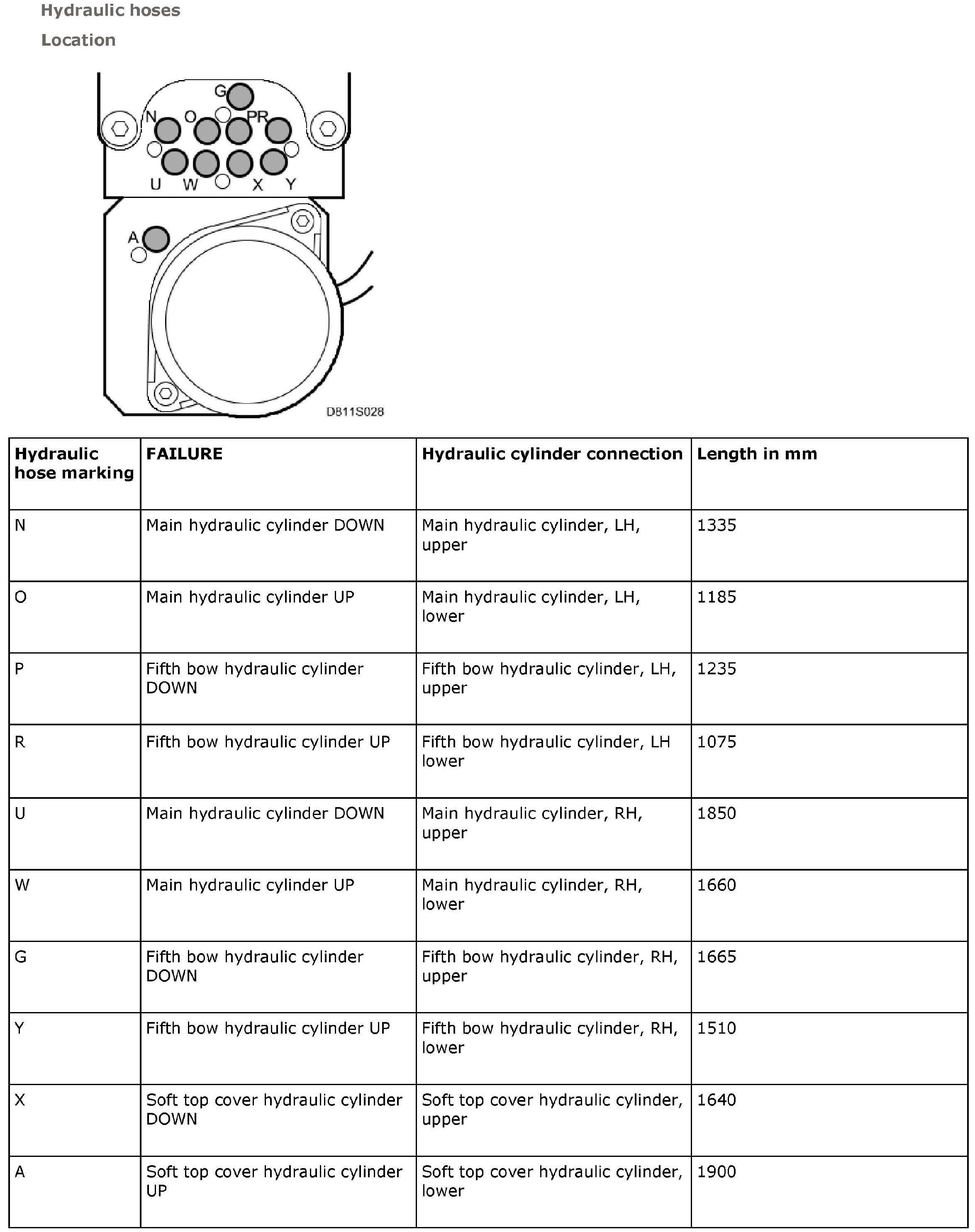

Hydraulic Hoses

Hydraulic Hoses:

1. Fifth bow hydraulic cylinder, LH
2. Main hydraulic cylinder, LH
3. Main hydraulic cylinder, RH
4. Fifth bow hydraulic cylinder, RH
5. Soft top cover cylinder
6. Hydraulic unit

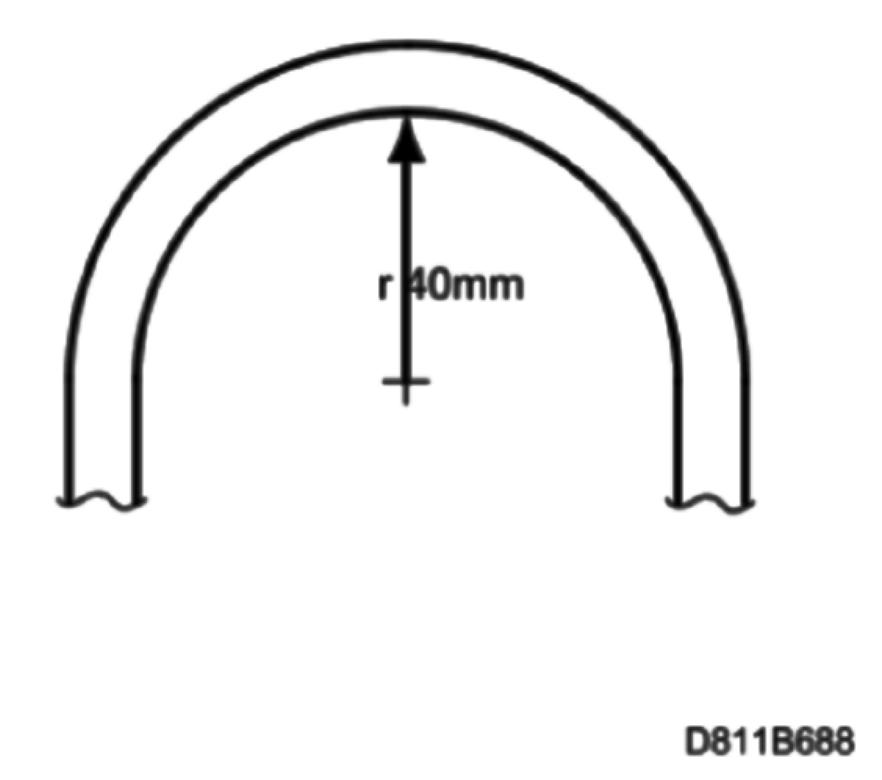

NOTE: The minimum bending radius for the hydraulic hose is 40 mm.
