Convertible Top Frame: Application and ID

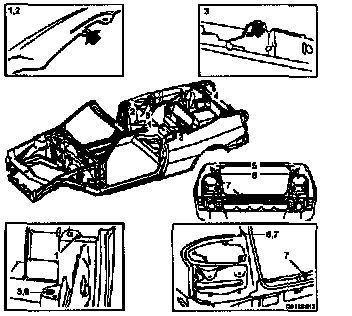

Body Dimensions:






The measurements are the unique design dimensions for the Saab 9-3 Convertible.

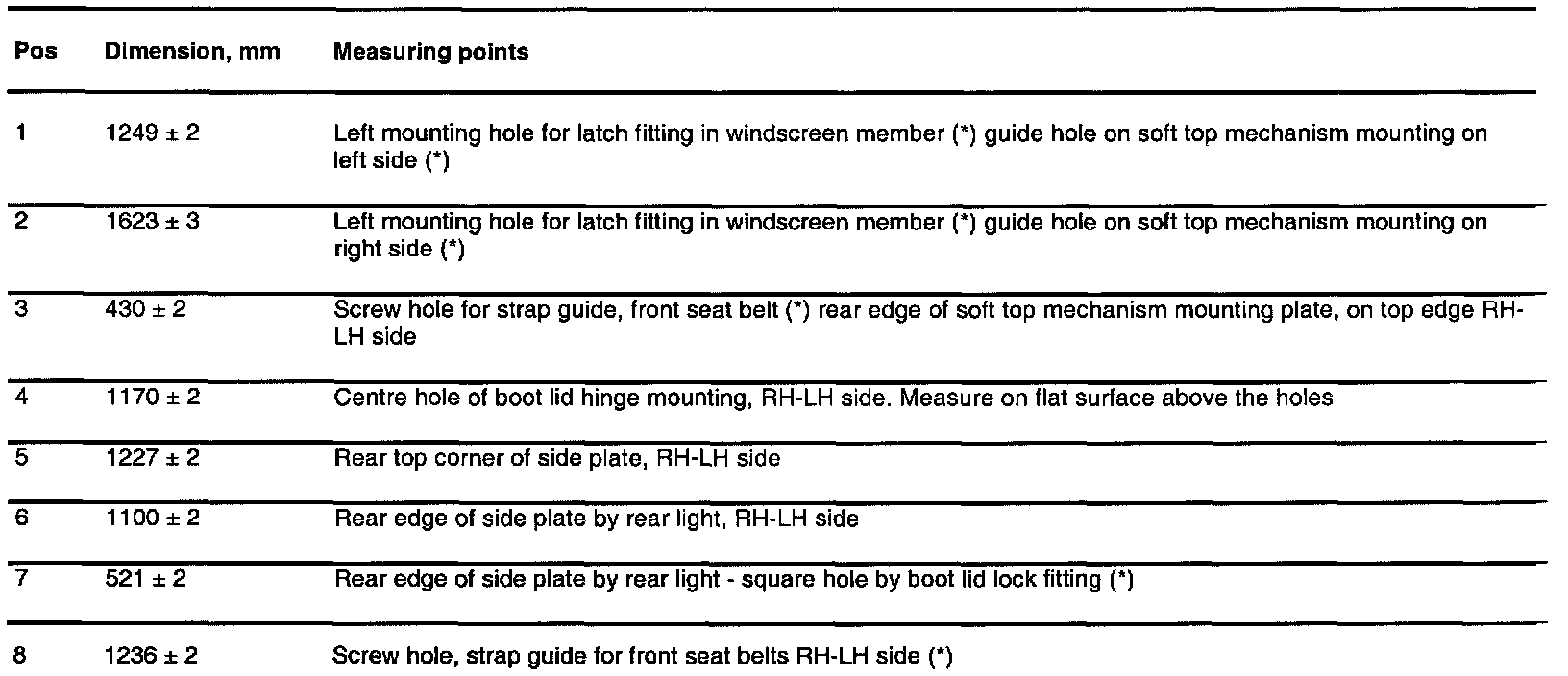

Pos 1 - 7:
