Adjusting the Boot Lid

The boot lid should be adjusted to the appearance of a good fit against the side panel.

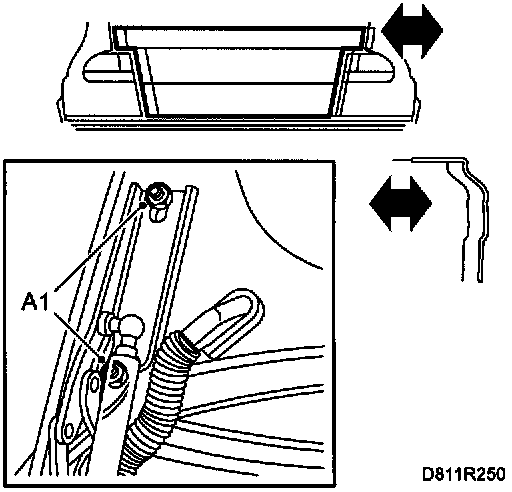

A Fore-and-aft and lateral adjustment







1 Loosen the nuts that secure the boot lid to the hinges.

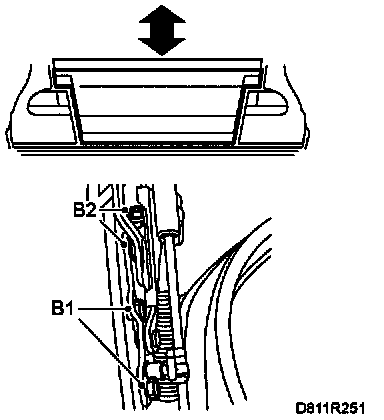

B Vertical







1 Loosen the bolts that secure the hinge to the side panel.
2 Turn the bolt that supports the closed boot lid at the front edge.

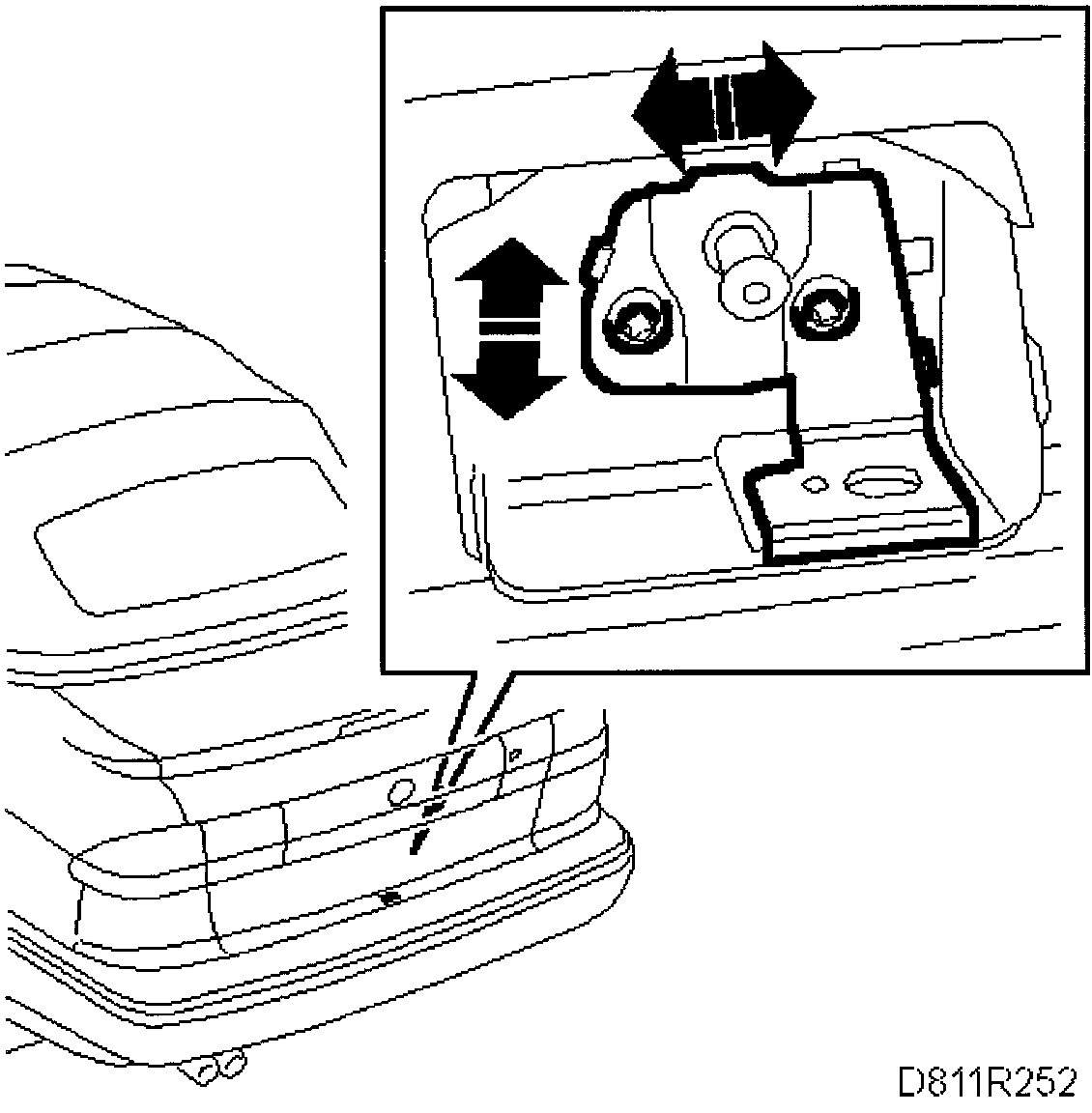

C Lock fittings







Loosen the bolts that secure the lock fitting and adjust until good lock function is achieved.
