Adjusting the Boot Lid

Adjusting The Boot Lid

The boot lid should be adjusted to the appearance of a good fit against the side panel.

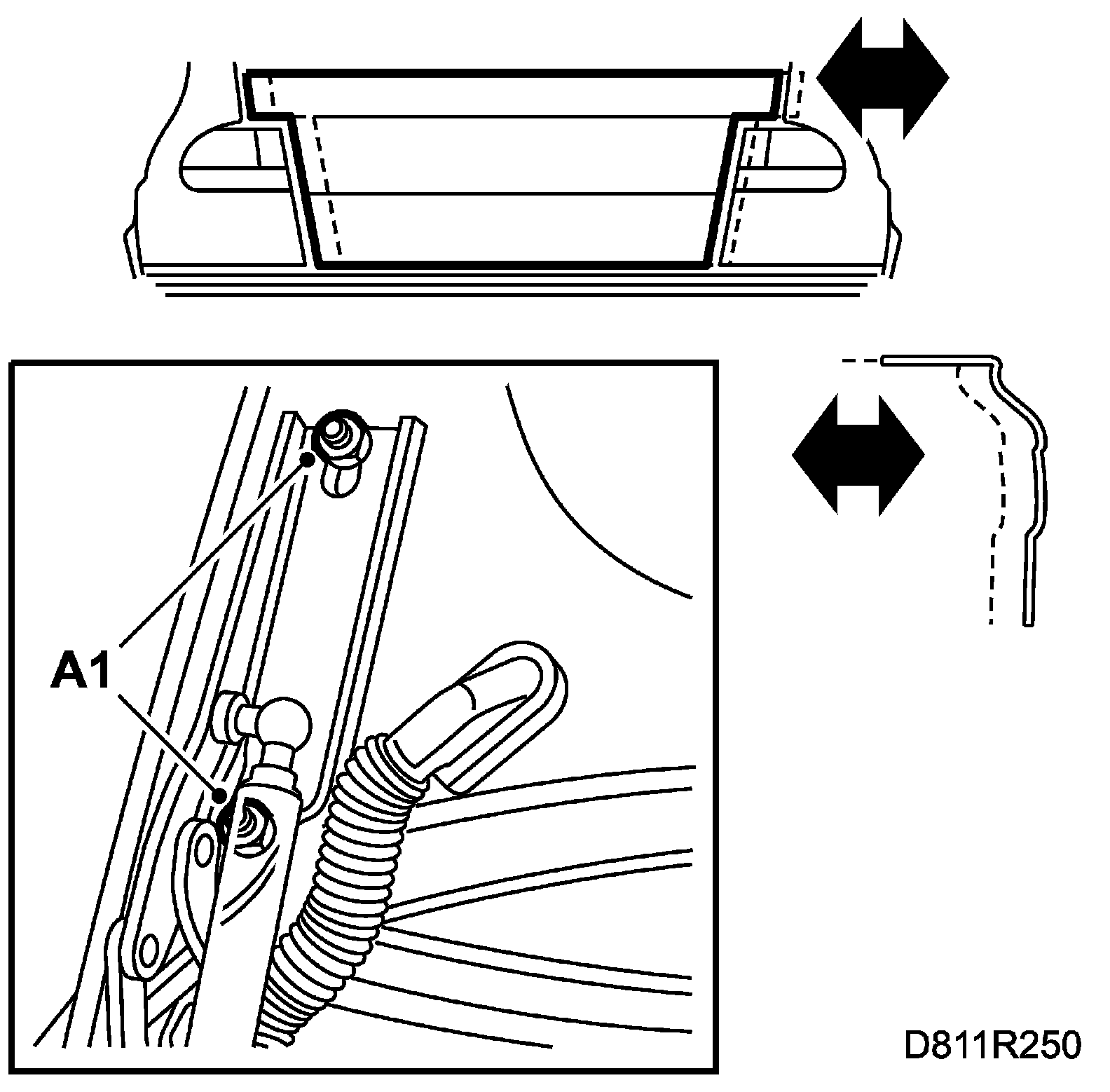

A Fore-and-aft and lateral adjustment







1. Loosen the nuts that secure the boot lid to the hinges.

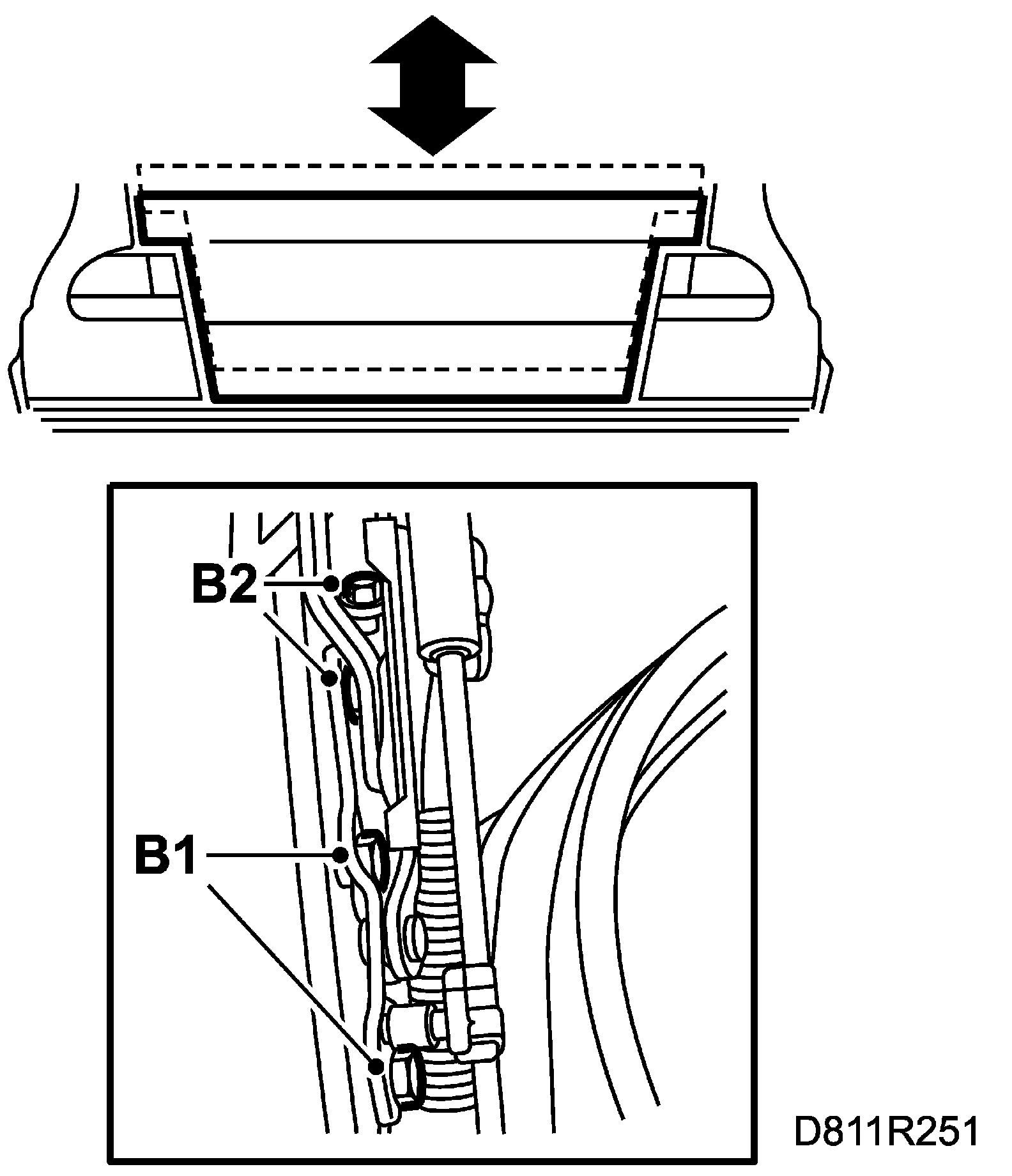

B Vertical







1. Loosen the bolts that secure the hinge to the side panel.
2. Turn the bolt that supports the closed boot lid at the front edge.

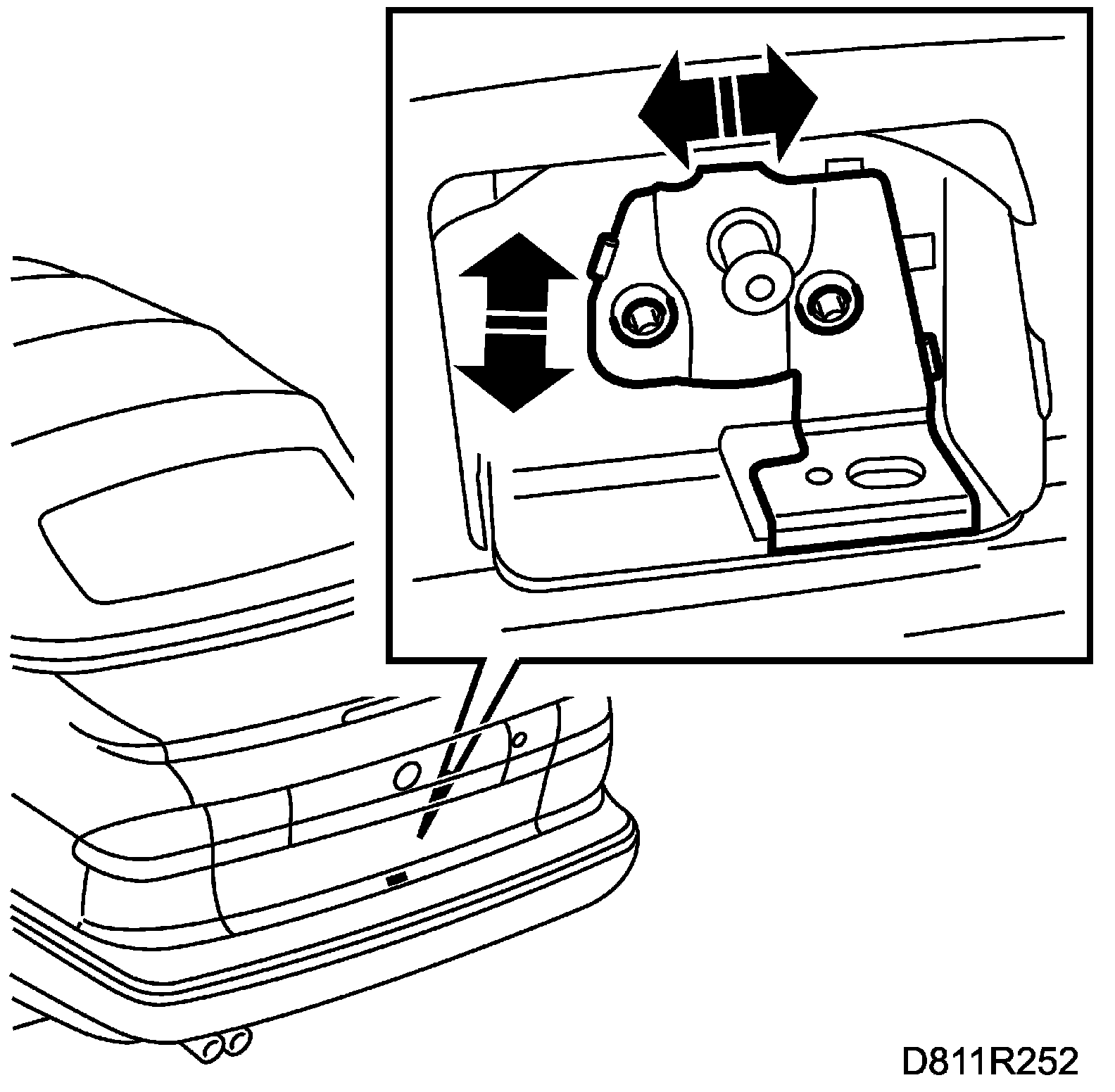

Loosen the bolts that secure the lock fitting and adjust until good lock function is achieved.
