Lock Pin, Soft Top Cover Drive Mechanism

Lock pin, soft top cover drive mechanism

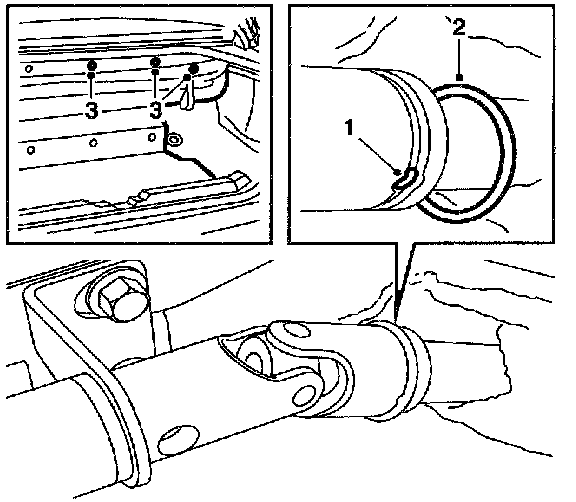

Removing







1 The soft top cover must be lowered and locked.
2 Open the boot lid and remove the bolts for the soft top storage. Fold out the upholstery.
3 Move the O-ring to the side.
4 Use a drift to tap out the pin.

Fitting








1 Tap in a new pin.
2 Refit the O-ring.
3 Refit the upholstery at the soft top storage.
4 Check the latch adjustment of the soft top cover. Adjustments

Important
If the soft top cover latch is incorrectly adjusted, this may be the reason for the pin breaking. It is therefore very important to check the adjustment of the soft top cover latch. Adjustments
