Fifth Bow

Fifth bow

Removing

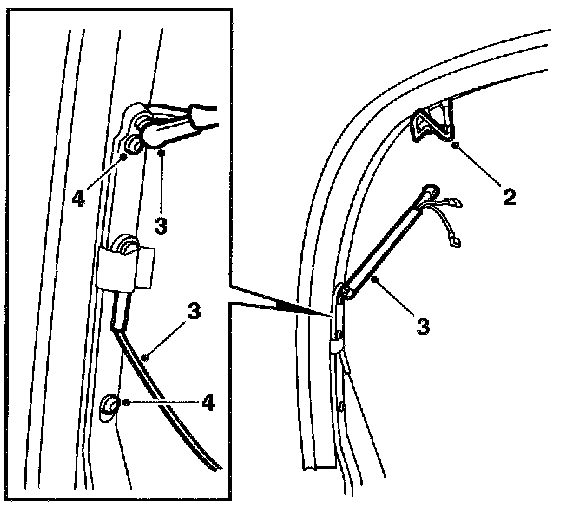

1 Remove the complete soft top package. Information can be found in "Soft Top Cover, Headlining and Rear Window."
2 Remove the lock fittings
3 Remove the cable for the fourth bow and the window guide.
4 Mark the position of the screw heads on the fifth bow mountings and remove the screws
5 Lift away the fifth bow.

Fitting

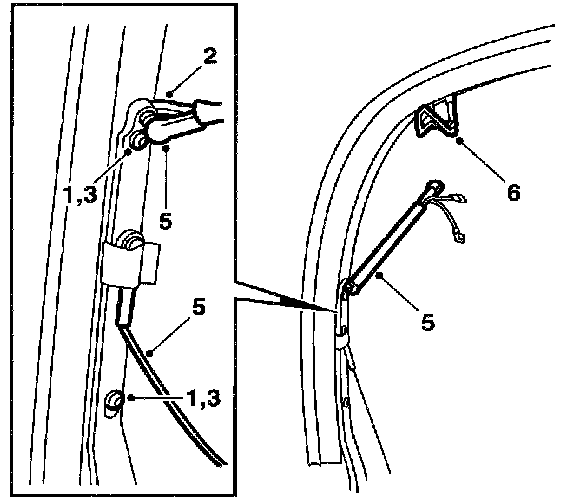

1 Fit the fifth bow on the right side and fit the screws loosely.
2 Insert the leads for the electrically heated rear window in the groove.

Important
Make sure that the cables are not pinched between the mounting and the fifth bow.

3 Fasten the screws using the markings on the left side.
4 Tighten the screws according to the markings on the right side.
5 Fit the window guide and cable for the fourth bow.
6 Fit the lock fittings. Adjust the lock fittings. Adjustments
7 Fit the soft top Information can be found in "Soft Top Cover, Headlining and Rear Window."
