Door Mirror, Glass



Door Mirror, Glass







To remove

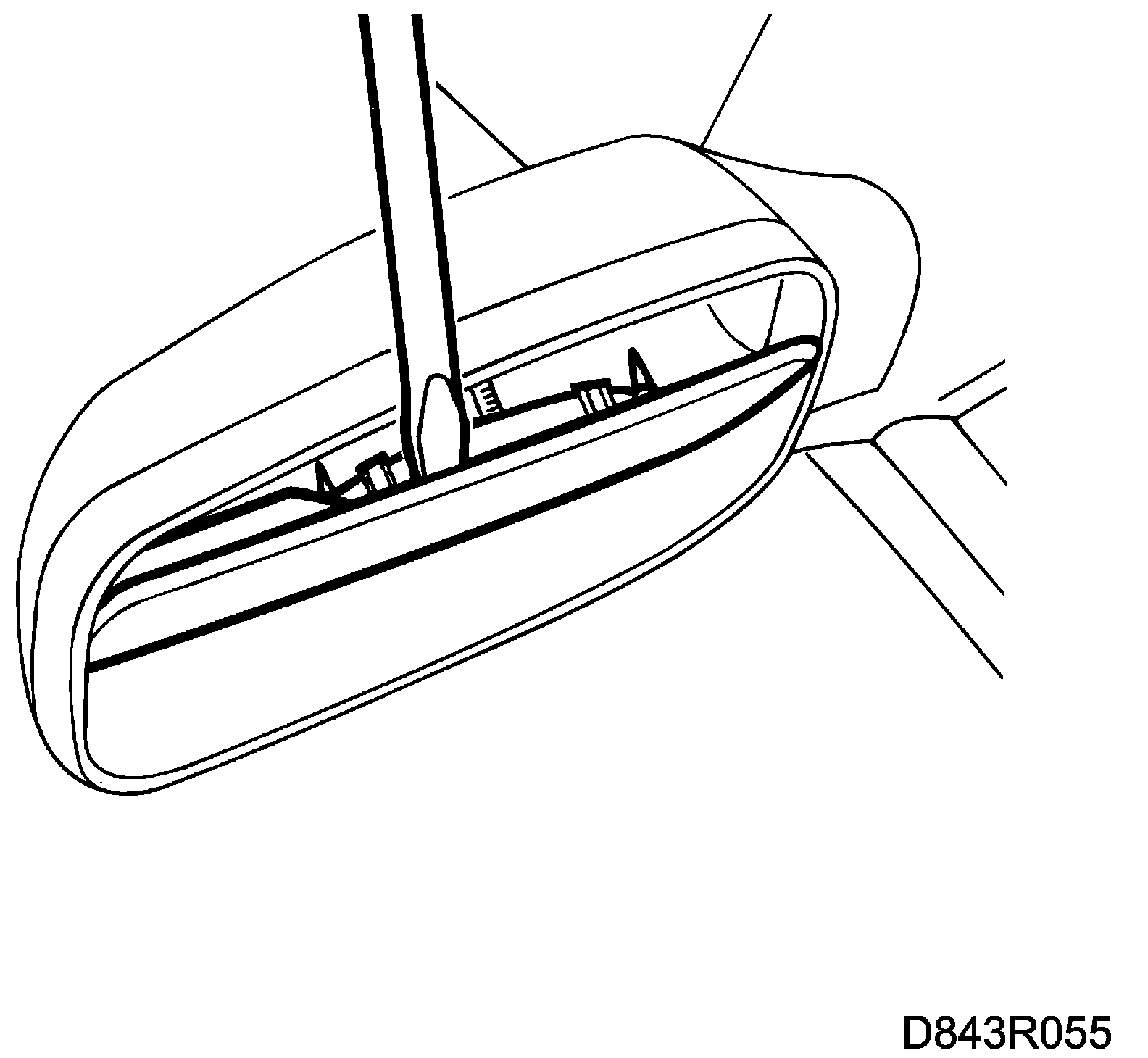

- Remove the mirror glass by inserting a large flat screwdriver at the top edge of the glass and "prise" out the glass. The glass is secured by a toggle clip.

To fit

- Fit the glass by pressing it into position by hand so that it is secured by the toggle clip.
