Door Mirror, CV

Door Mirror, CV

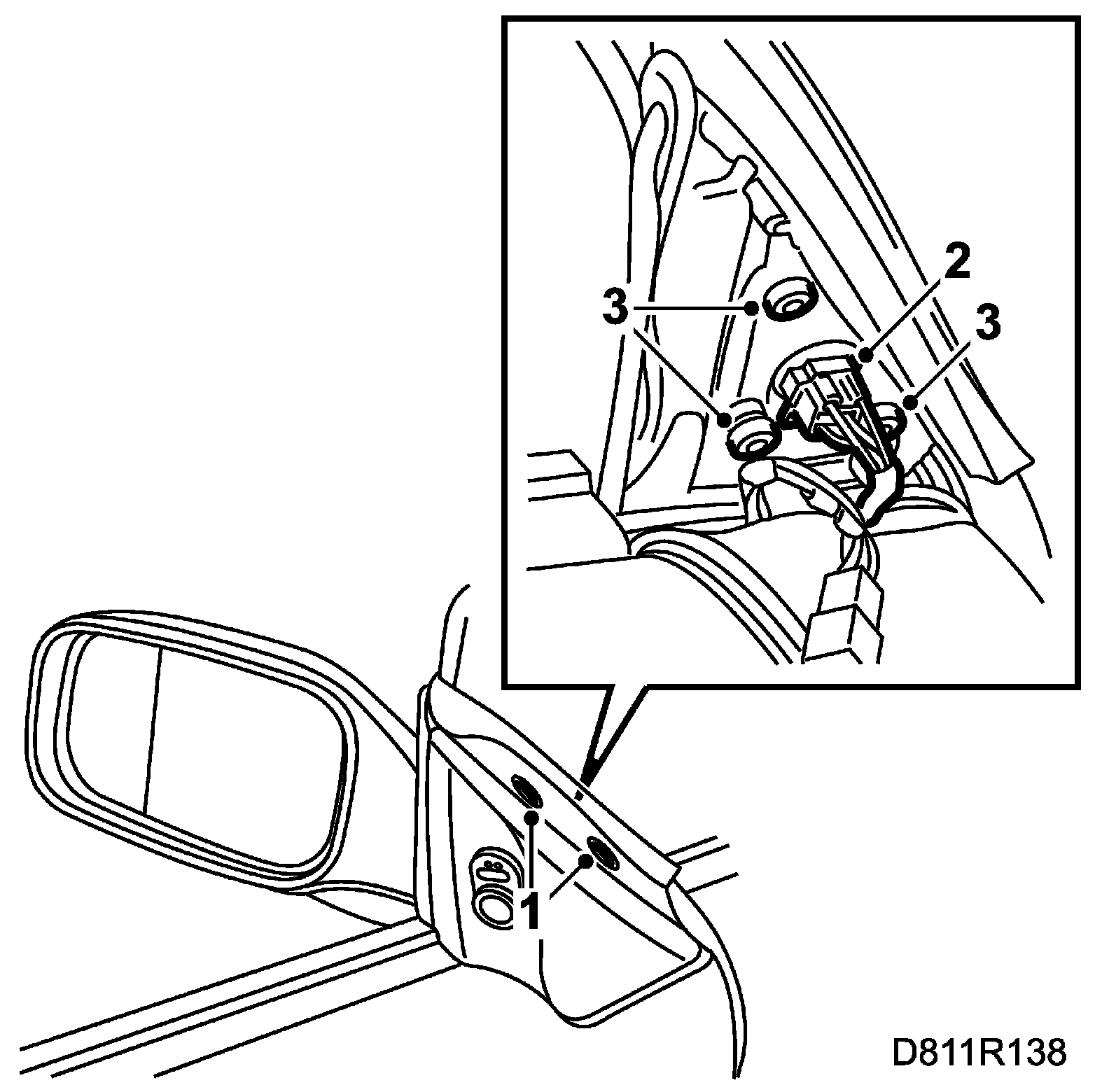

To remove

1. Remove the expander rivets and remove the cover.







2. Unplug the connector.
3. Remove the three retaining bolts and lift out the door mirror.

To fit

1. Fit the door mirror and tighten the bolts.
2. Plug in the connector.
3. Fit the cover.
