Door Mirror

Door Mirror

To remove

1. Open the door.

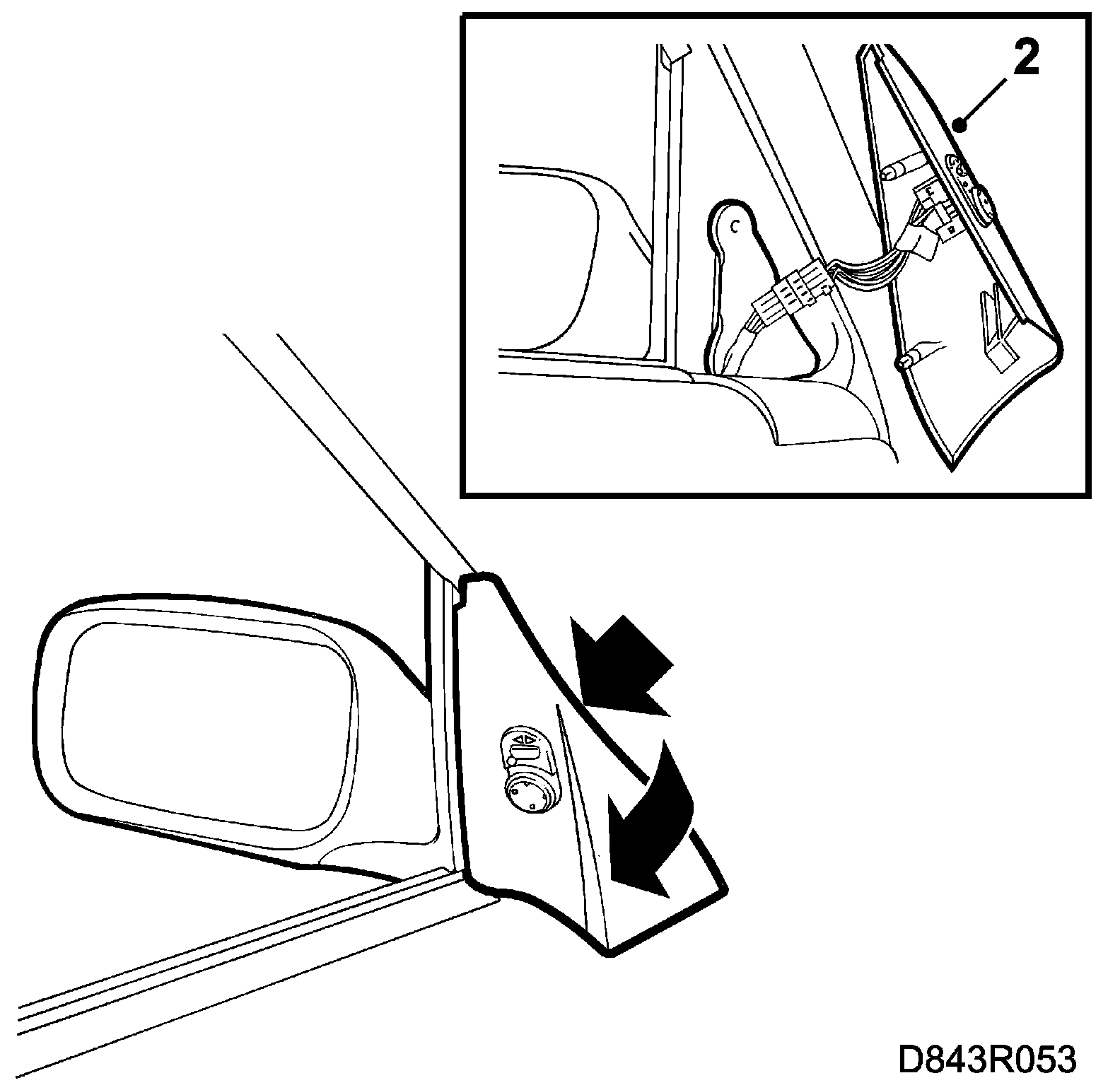

2. Remove the cover over the mirror mount, pull it off by hand starting at the front edge (fastened with clips).

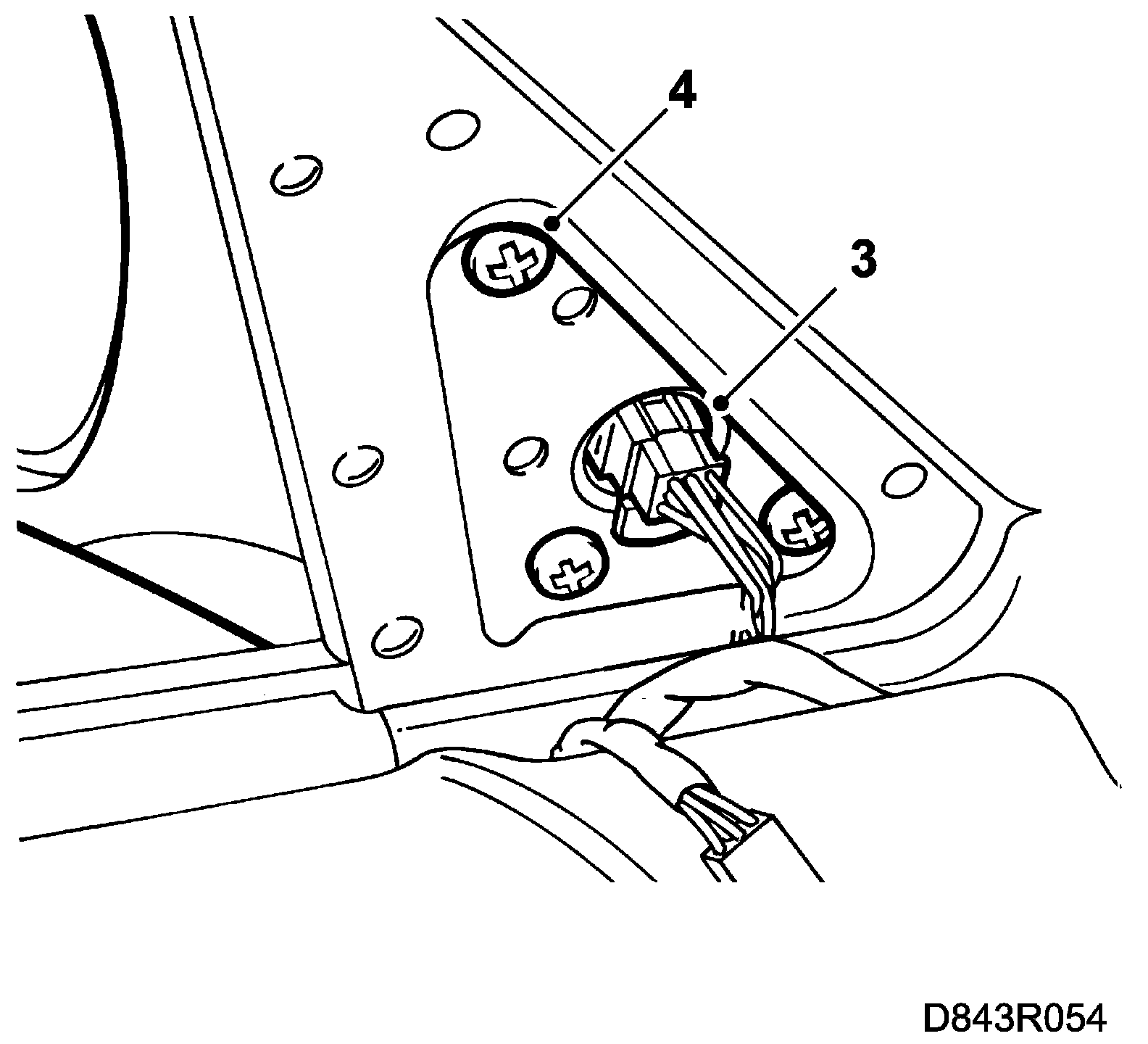

3. Unplug the connector to the electric motor.







4. Remove the door mirror by removing the 3 retainer screws.

To fit

Fit in reverse order.
