Door Mirror, Glass




Door Mirror, Glass:






To Remove

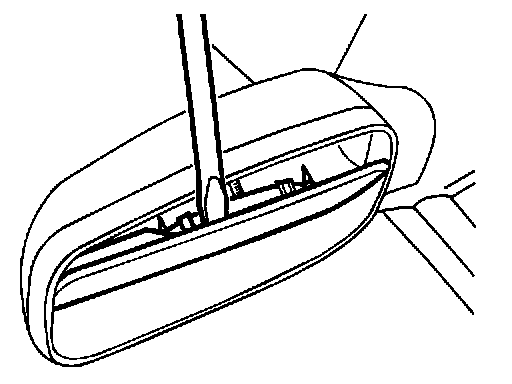

- Remove the mirror glass by inserting a large flat screwdriver at the top edge of the glass and "prise" out the glass. The glass is secured by a toggle clip.

To Fit
- Fit the glass by pressing it into position by hand so that it is secured by the toggle clip.
