Door Mirror

To Remove

Door Mirror:

1 Open the door.

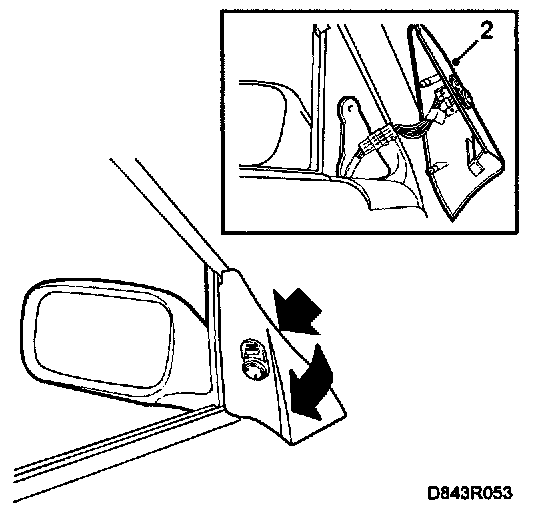

2 Remove the cover over the mirror mount, pull it off by hand starting at the front edge (fastened with clips).

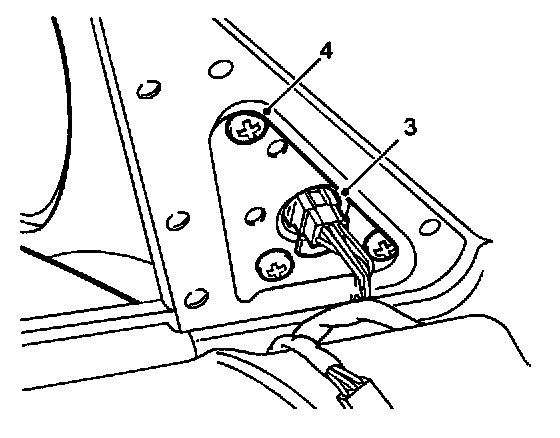

3 Unplug the connector to the electric motor.







4 Remove the door mirror by removing the 3 retainer screws.

To Fit
Fit in reverse order.
