Adapting Door Mirror For Tall Drivers

Adapting Door Mirror For Tall Drivers

To remove

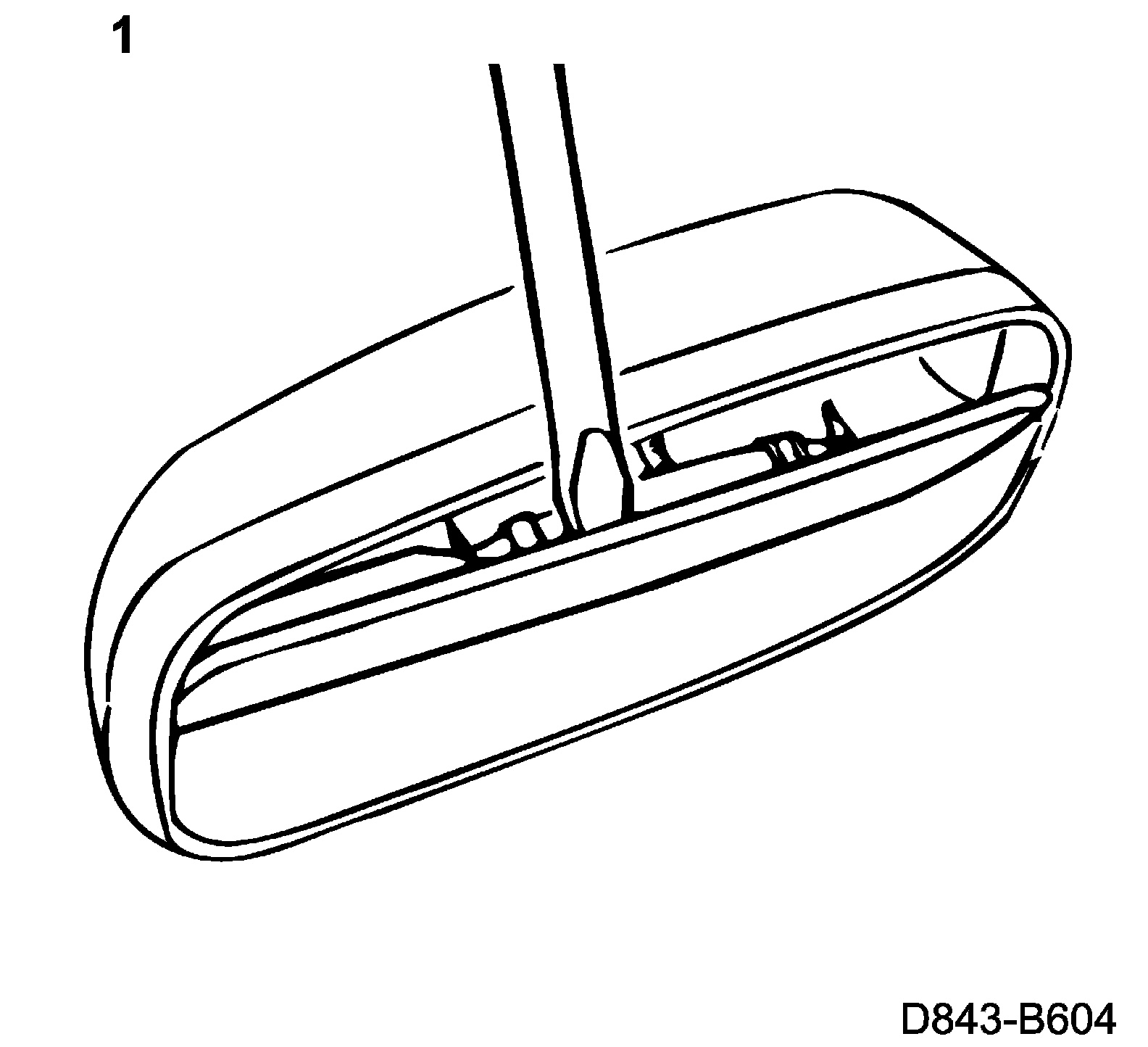

1. Remove the mirror glass with a large flat screwdriver.







2. Remove the screws securing the electric motor.

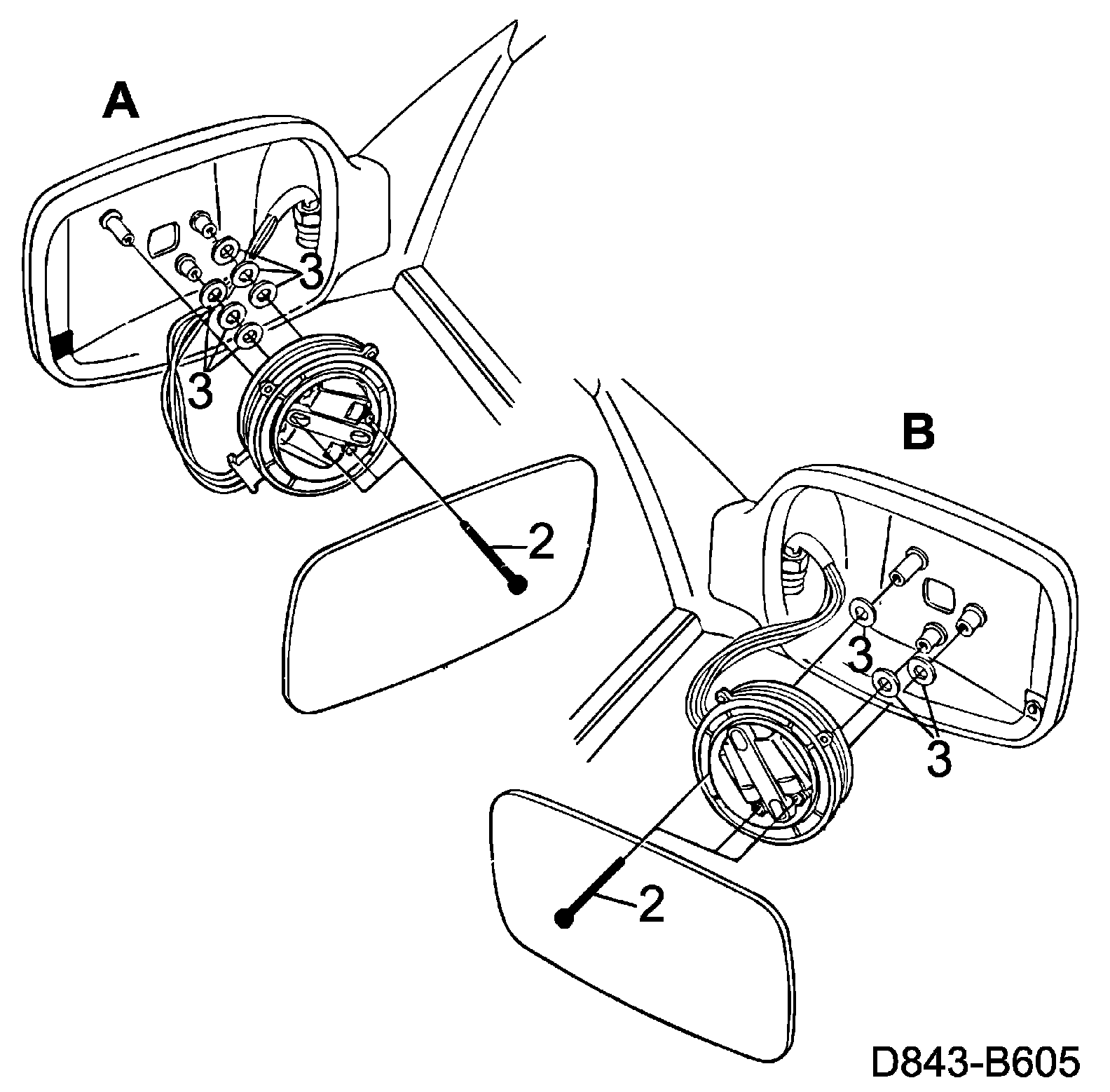

3. LHD cars:
Place 3 washers under the two screws as shown in illustration A.

RHD cars:
Place 1 washer under each screw as shown in illustration B.







To fit

1. LHD cars:
Secure the electric motor by tightening the two bolts with washers. Do not overtighten. Then tighten the last bolt.

RHD cars:
Tighten the bolts.

Tightening torque: 1.5 Nm (1.1 lbf ft)

2. Fit the mirror glass in place.
3. Check the operation of the mirror.
