Removal and Replacement

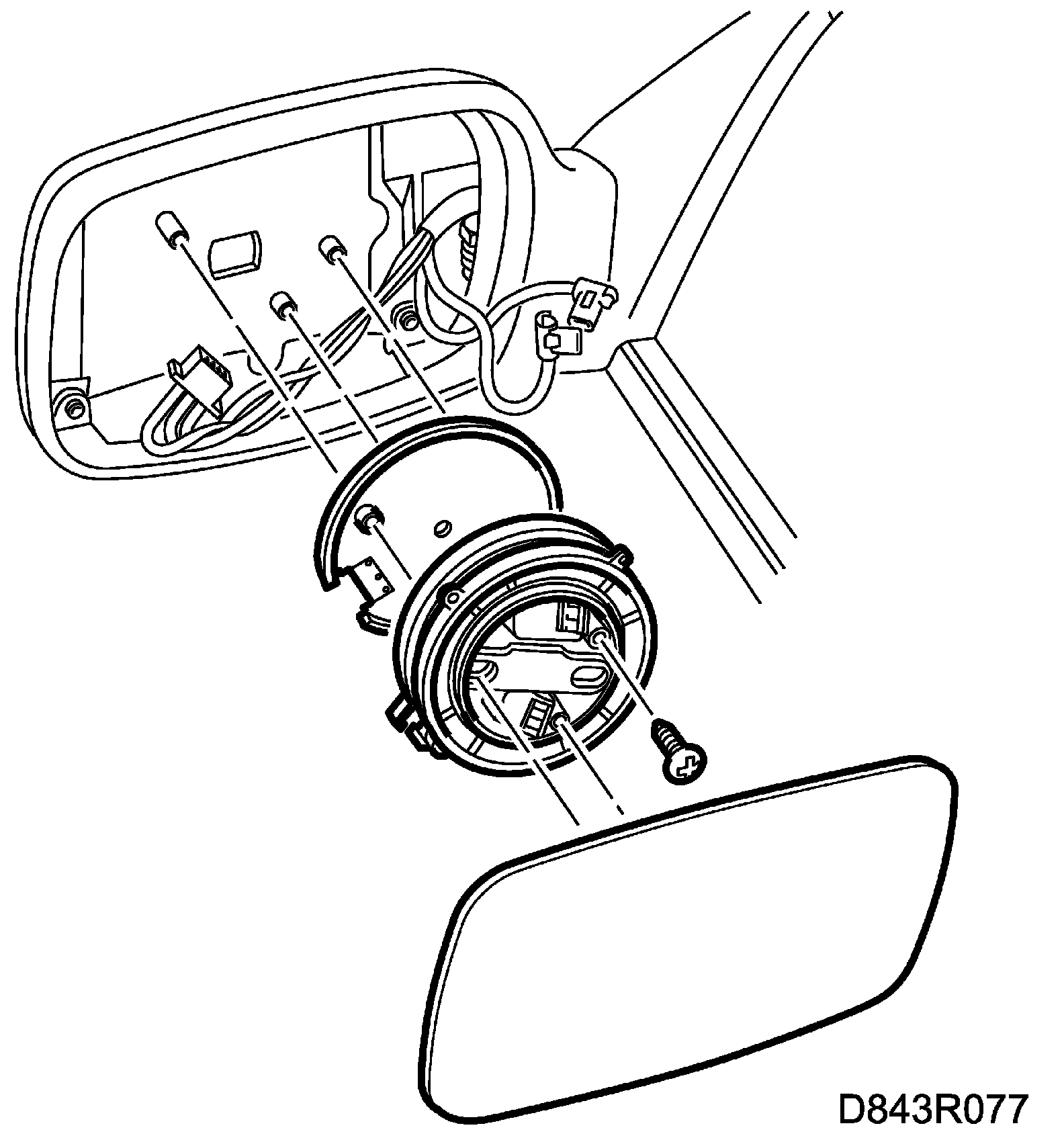

Door Mirror, Motor







To remove

1. Remove the mirror glass with a large flat screwdriver.
2. Remove the three retainer screws and lift out the motor.
3. Unplug the connector for the motor.

To fit

Fit in reverse order.
