Procedures

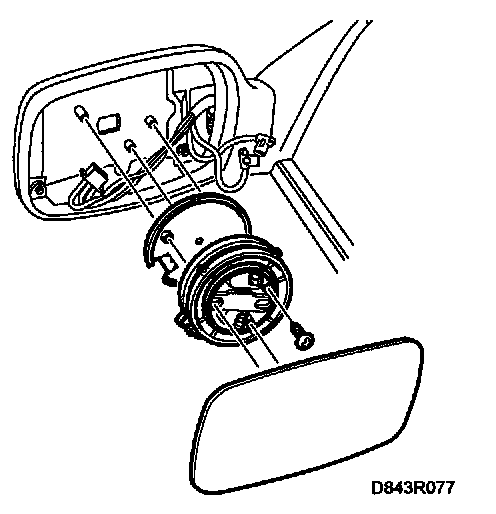

Door Mirror, Motor:

To Remove
1 Remove the mirror glass with a large flat screwdriver.
2 Remove the three retainer screws and lift out the motor.
3 Unplug the connector for the motor.

To Fit
Fit in reverse order.
