Electrical Diagrams

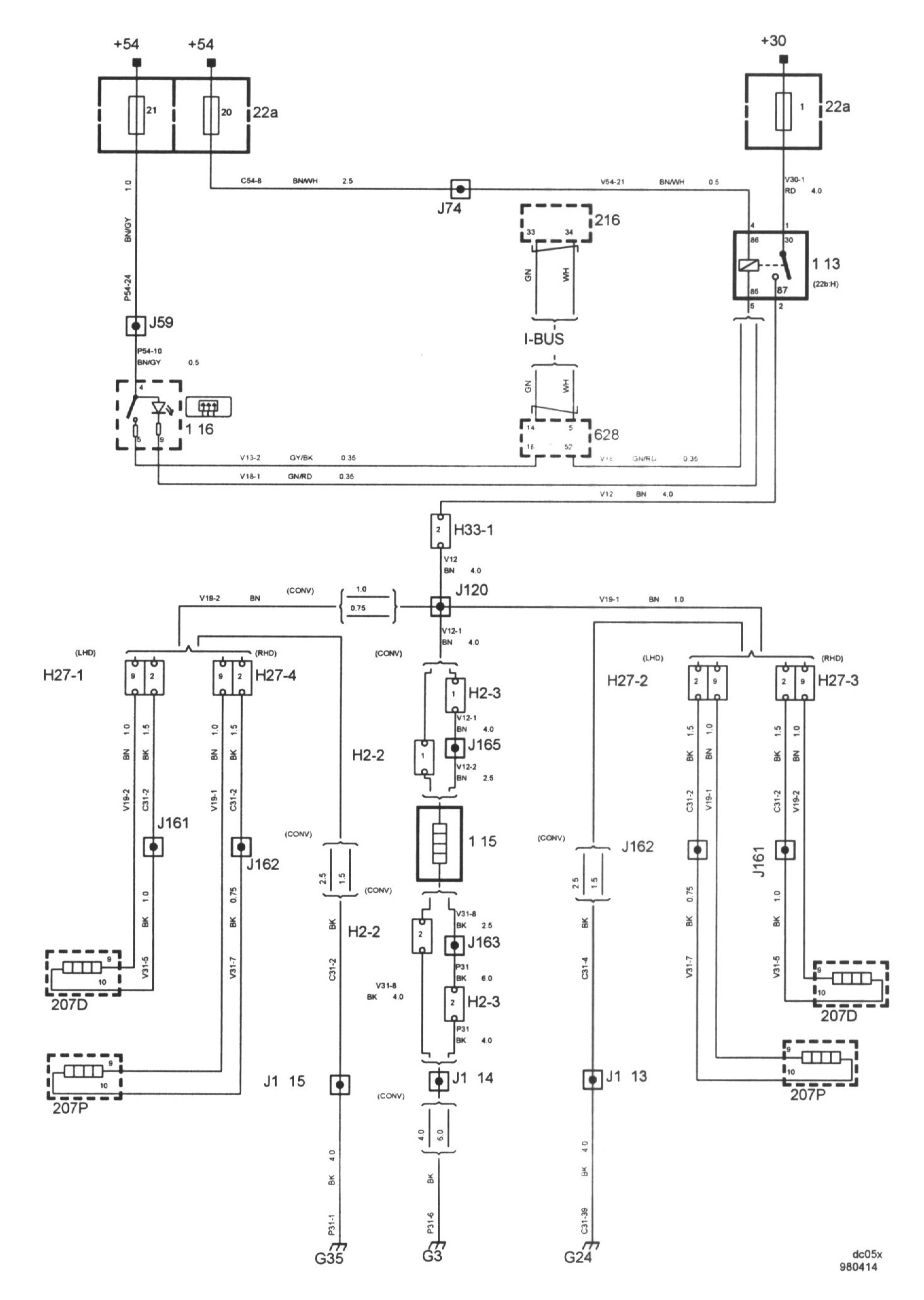

Electrically Heated Rear Window And Door Mirrors:

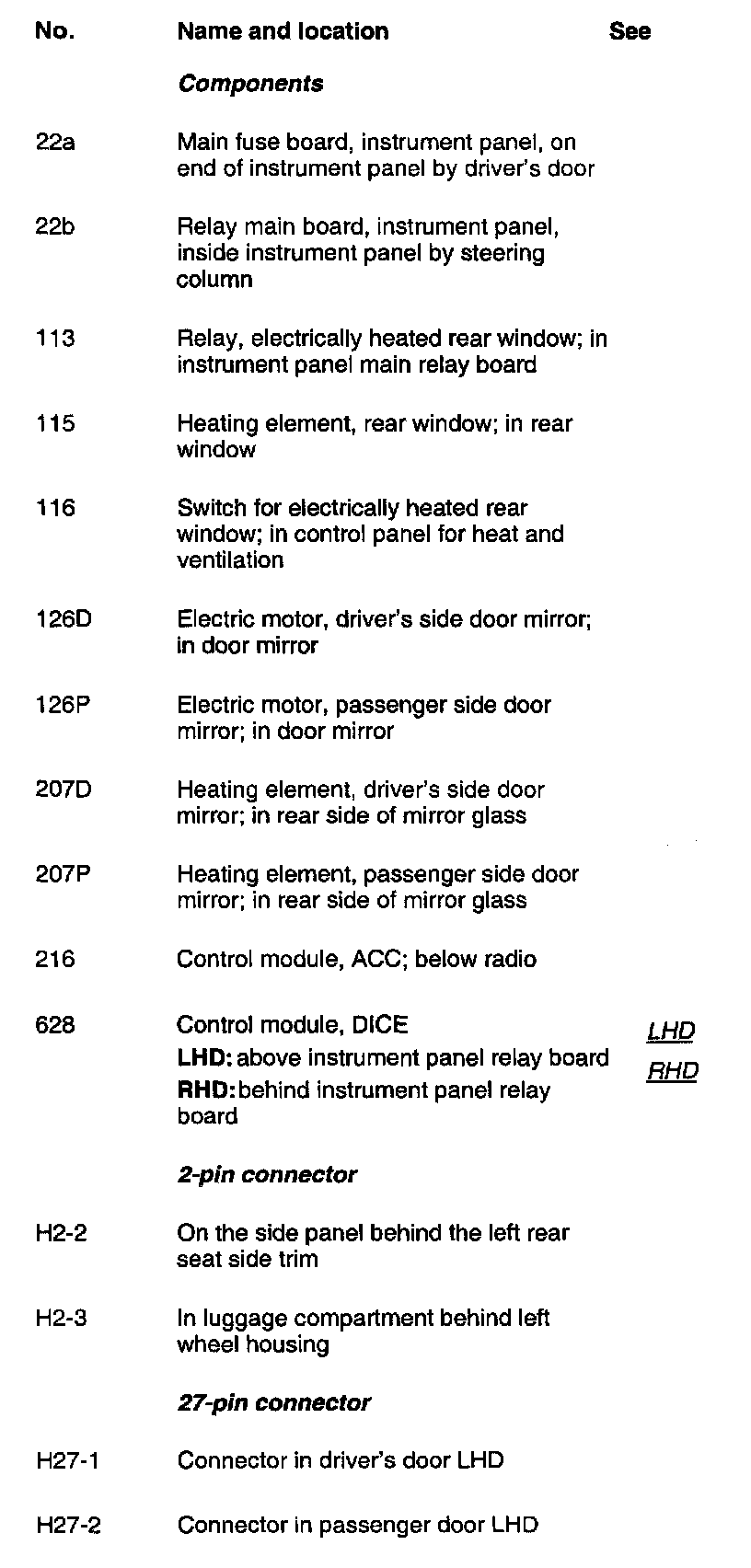

List Of Components (Part 1 Of 3):

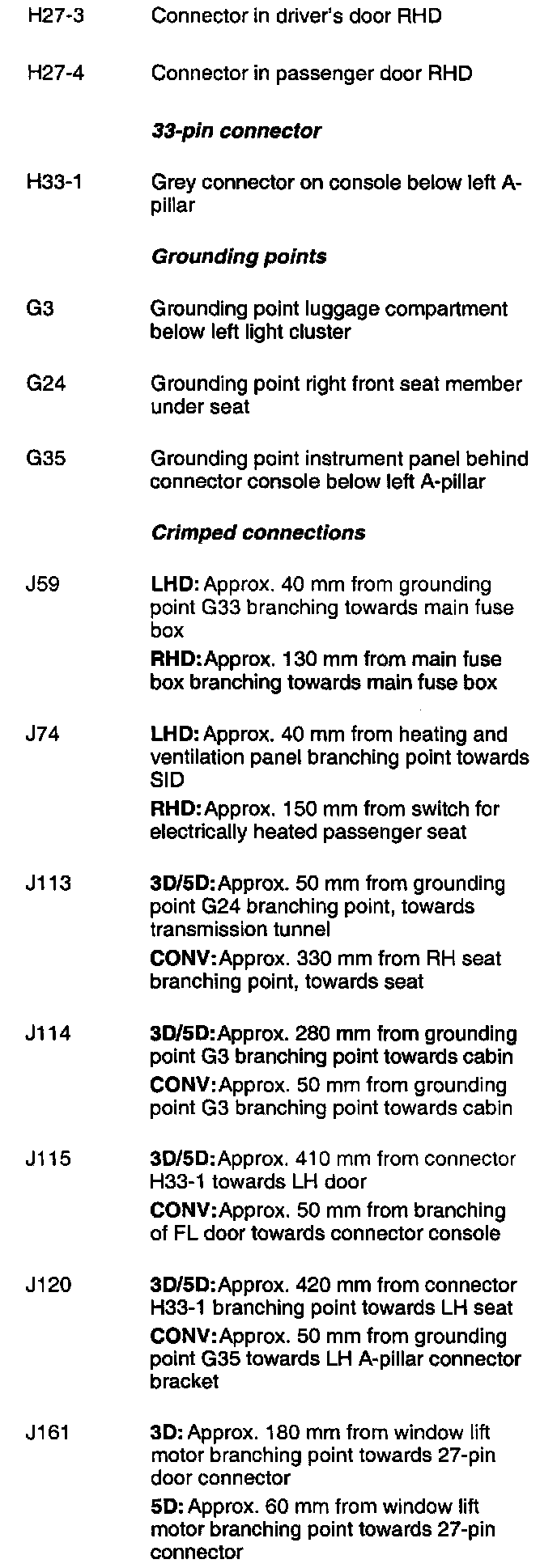

List Of Components (Part 2 Of 3):

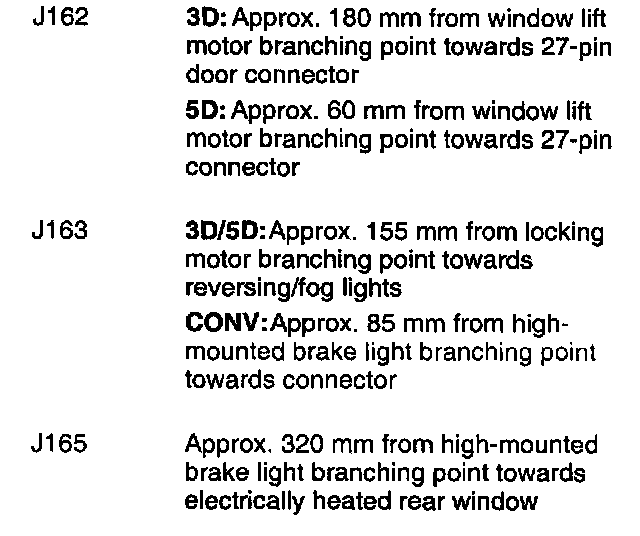

List Of Components (Part 3 Of 3):
