Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Body and Frame >> Locks >> Locations >> Connector Locations >> 10-Pin Connector, H10-7

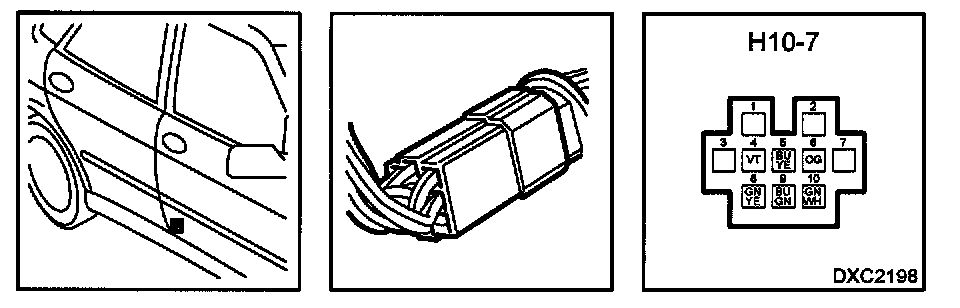

10-Pin Connector, H10-7




10-pin Connector, H10-7:
