Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Body and Frame >> Locks >> Locations >> Component Locations >> Electrical Opening of Luggage Compartment Lock Convertible

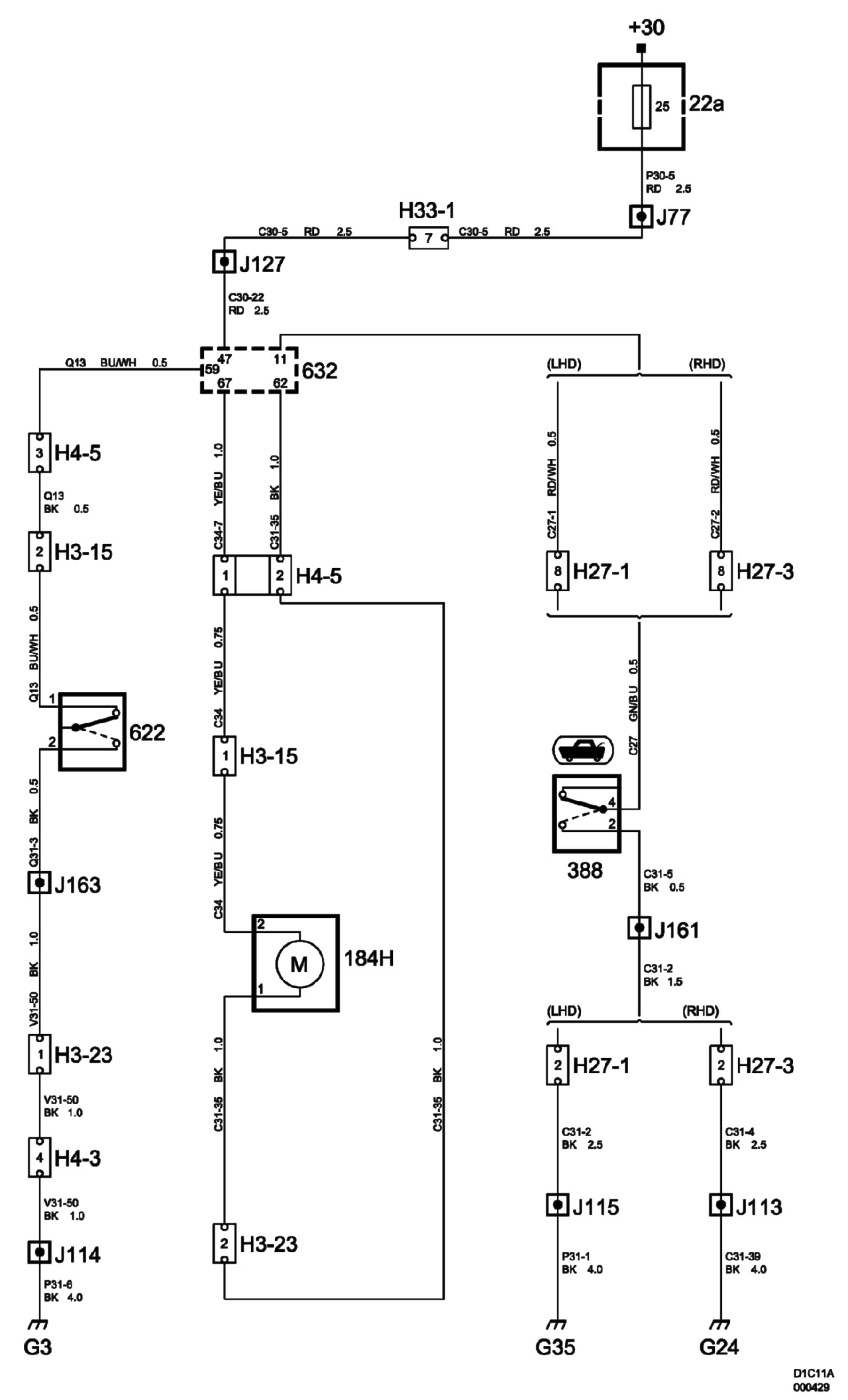

Electrical Opening of Luggage Compartment Lock Convertible



Electrical Opening of Luggage Compartment Lock Convertible

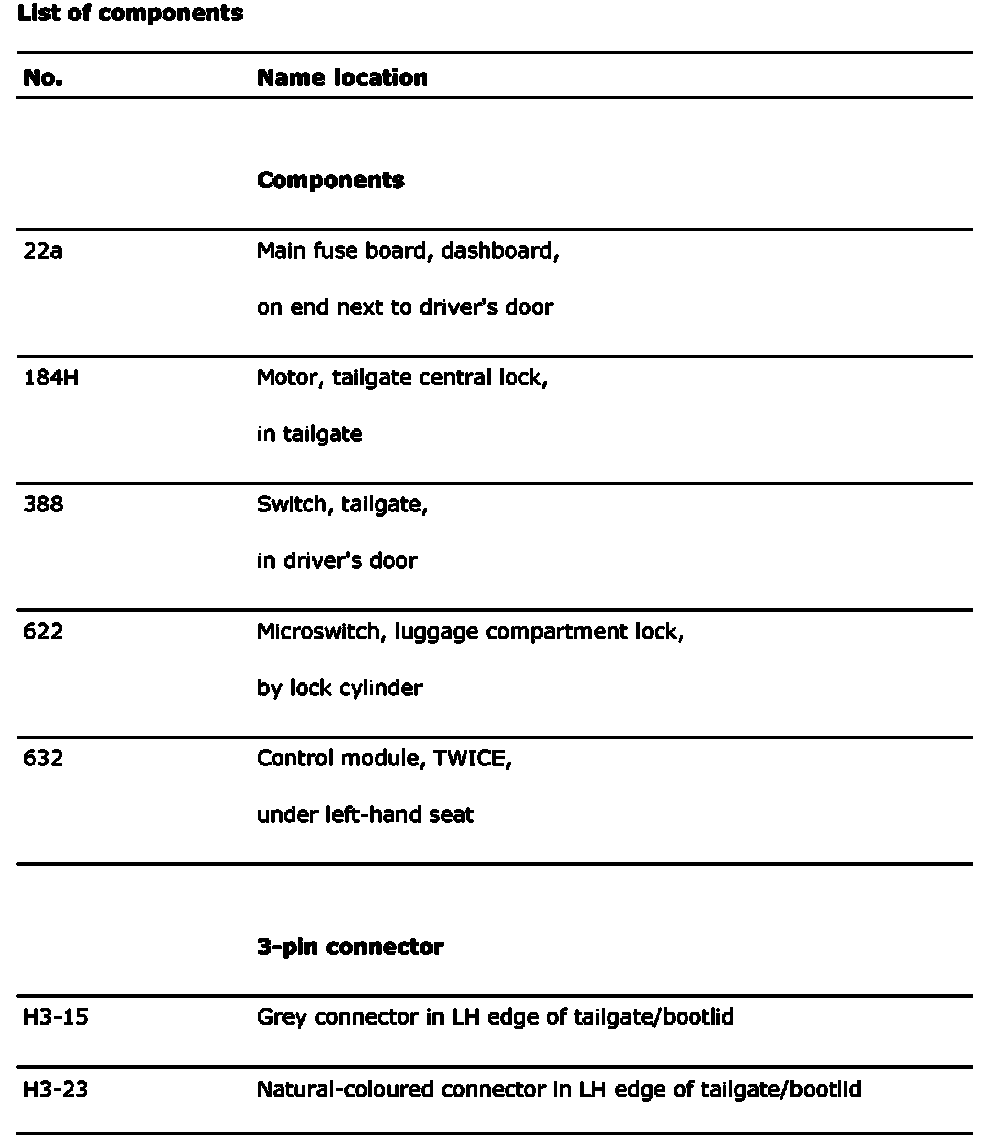

List Of Components (Part 1):

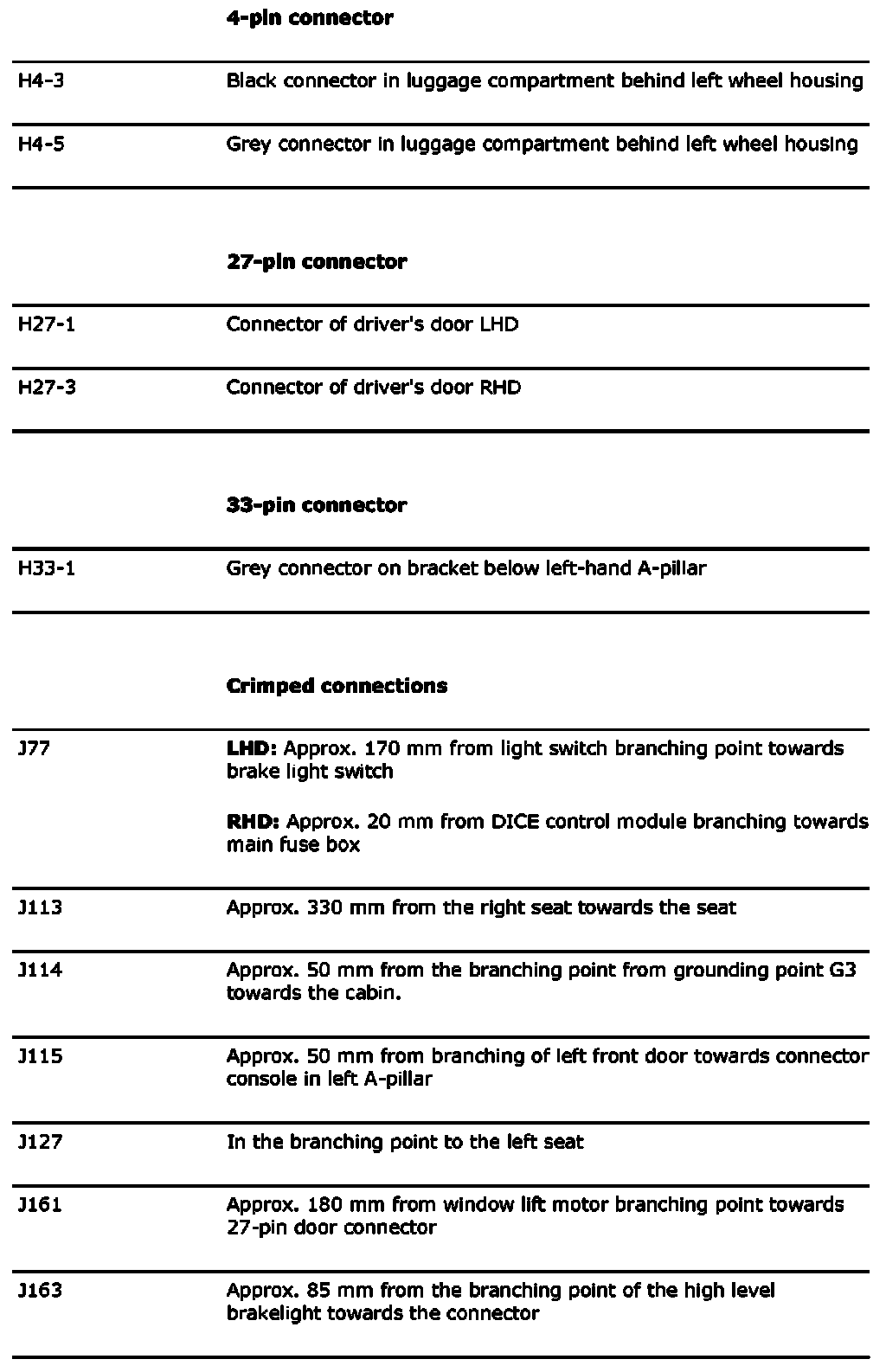

List Of Components (Part 2):

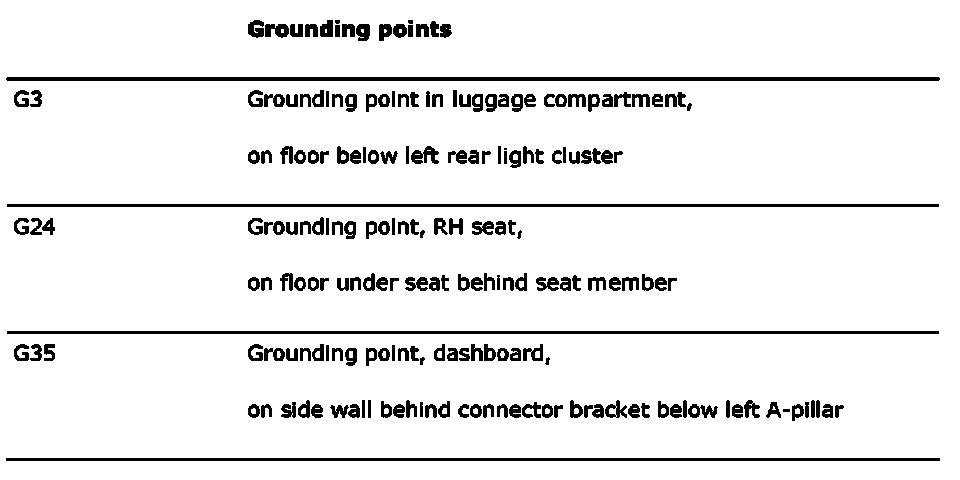

List Of Components (Part 3):
