Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Body and Frame >> Locks >> Description and Operation >> System Overview, Central Locking System, Tailgate

System Overview, Central Locking System, Tailgate

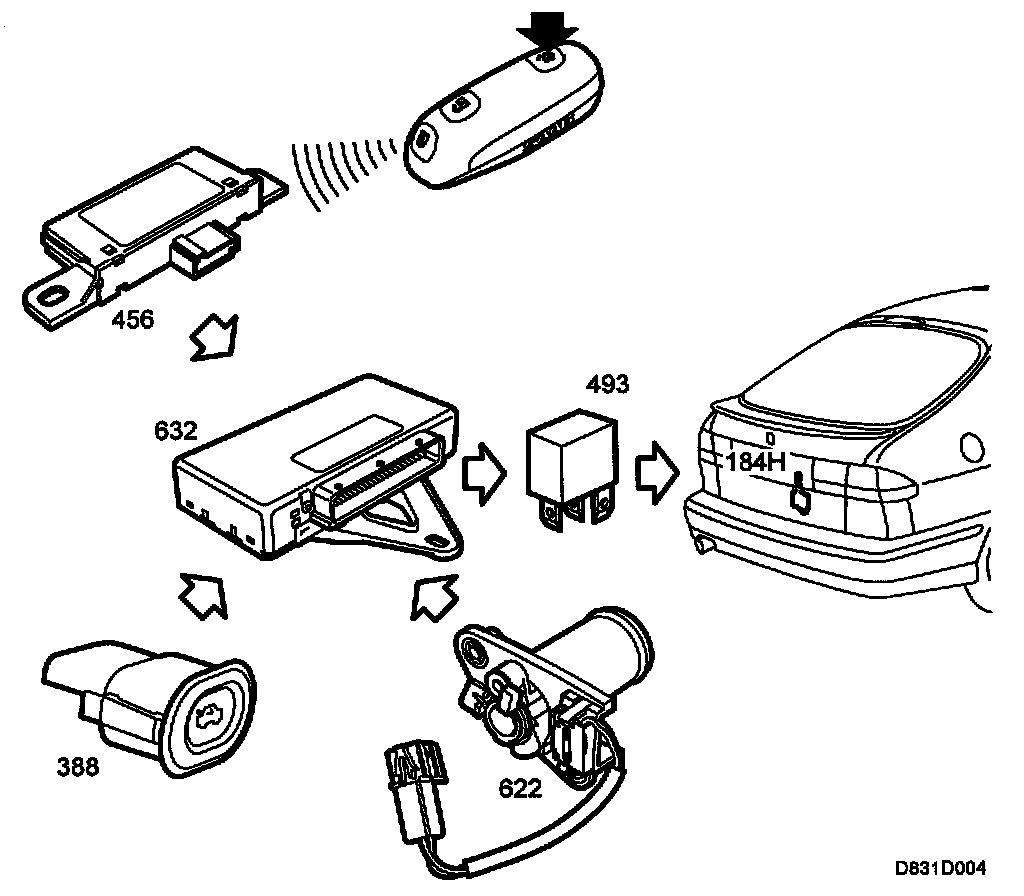

System Overview, Central Locking System, Tailgate:

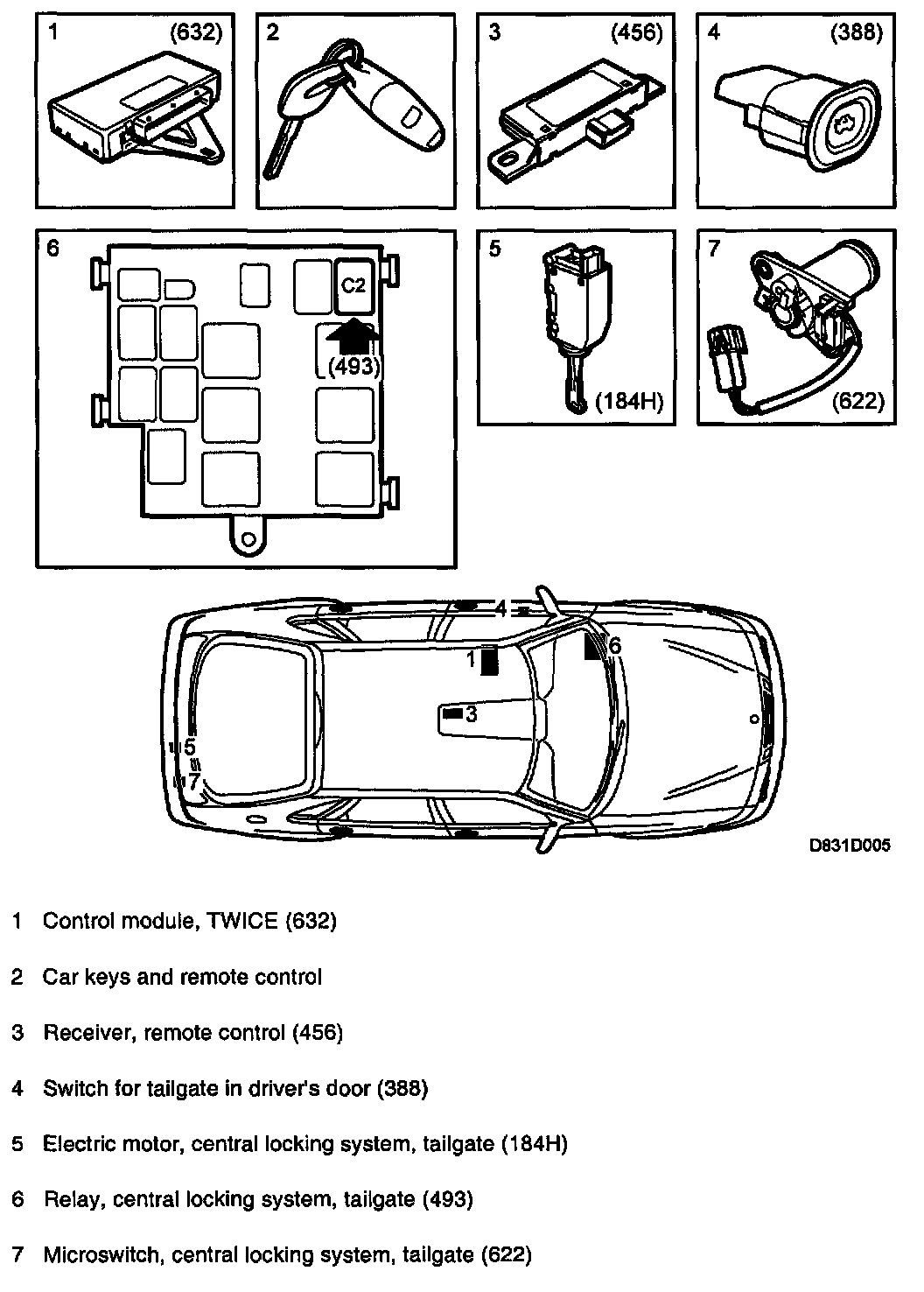

Main Components, Central Locking System, Tailgate:
