System Overview

System Overview:

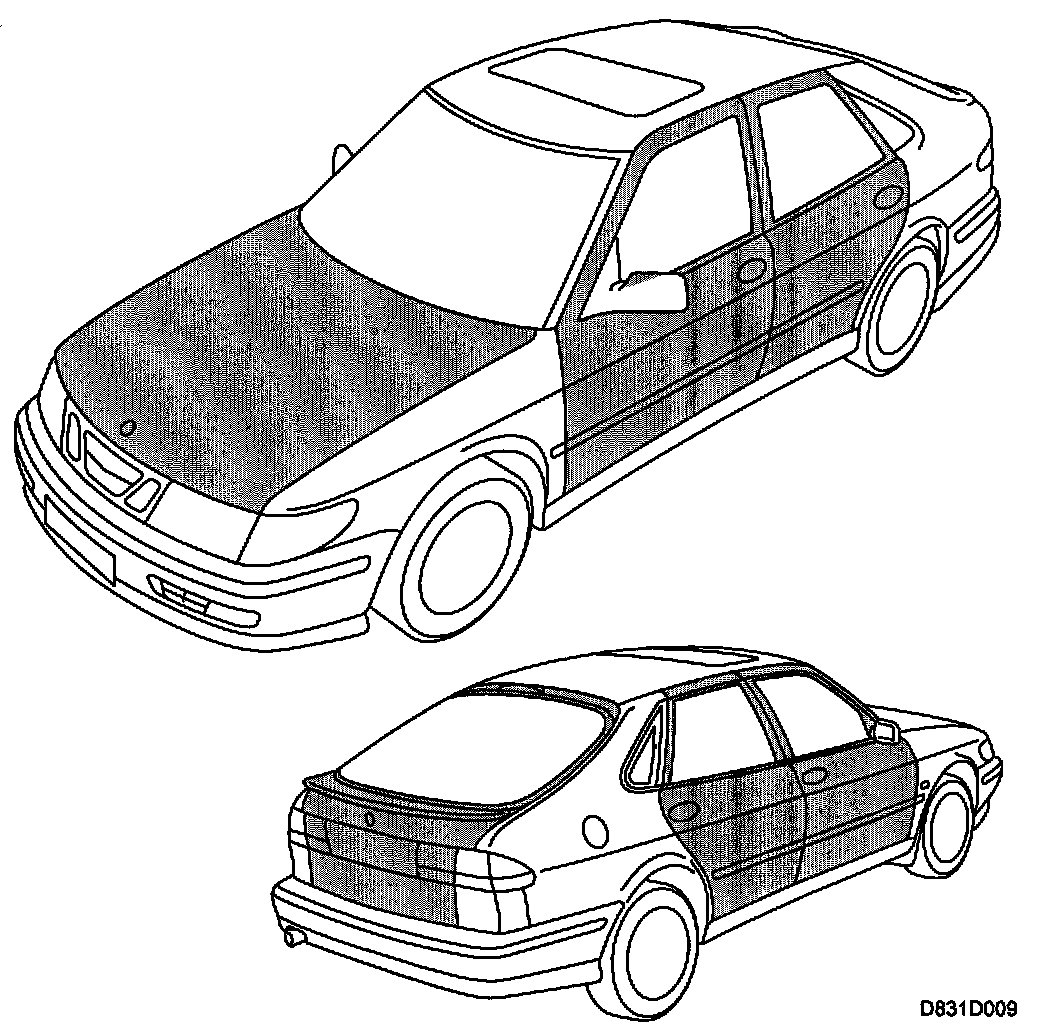

Brief Description, Doors And Hatches

Bonnet
The bonnet lock mechanism consists of a spring lock located in the front member. The lock is controlled by a wire. The wire control is located under the instrument panel on the driver's door side inside the cabin.

There are two gas springs that hold the bonnet open.

The hinges, double-sheared and lubrication-free, are fixed to the body and bonnet in a way that allows adjustment.

Doors
The hinges in the front and rear doors are lubrication-free, double-sheared and can be dismantled between the body and the door.

Tailgate
The tailgate is equipped with two gas springs and is opened with a handle located in the middle of the tailgate (not convertible).
