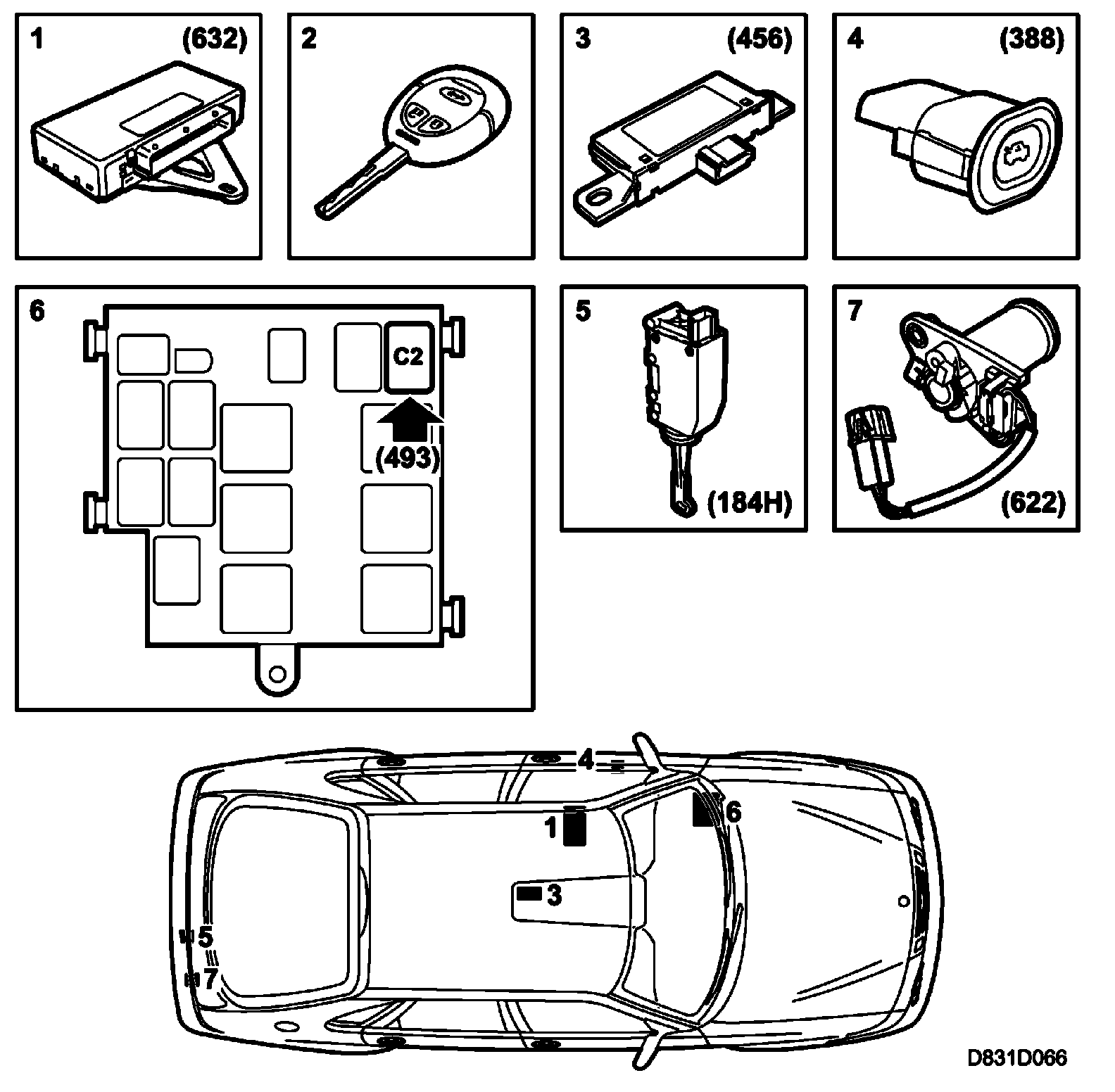

Main Components, Central Locking System, Tailgate/Bootlid

Main Components, Central Locking System, Tailgate/bootlid







1. Control module, TWICE (632)
2. Car key with remote control
3. Receiver, remote control (456)
4. Switch for tailgate/bootlid in driver's door (388)
5. Electric motor, central locking system, tailgate/bootlid (184H)
6. Relay, central locking system, tailgate/bootlid (493)
7. Microswitch, central locking system, tailgate/bootlid (622)
