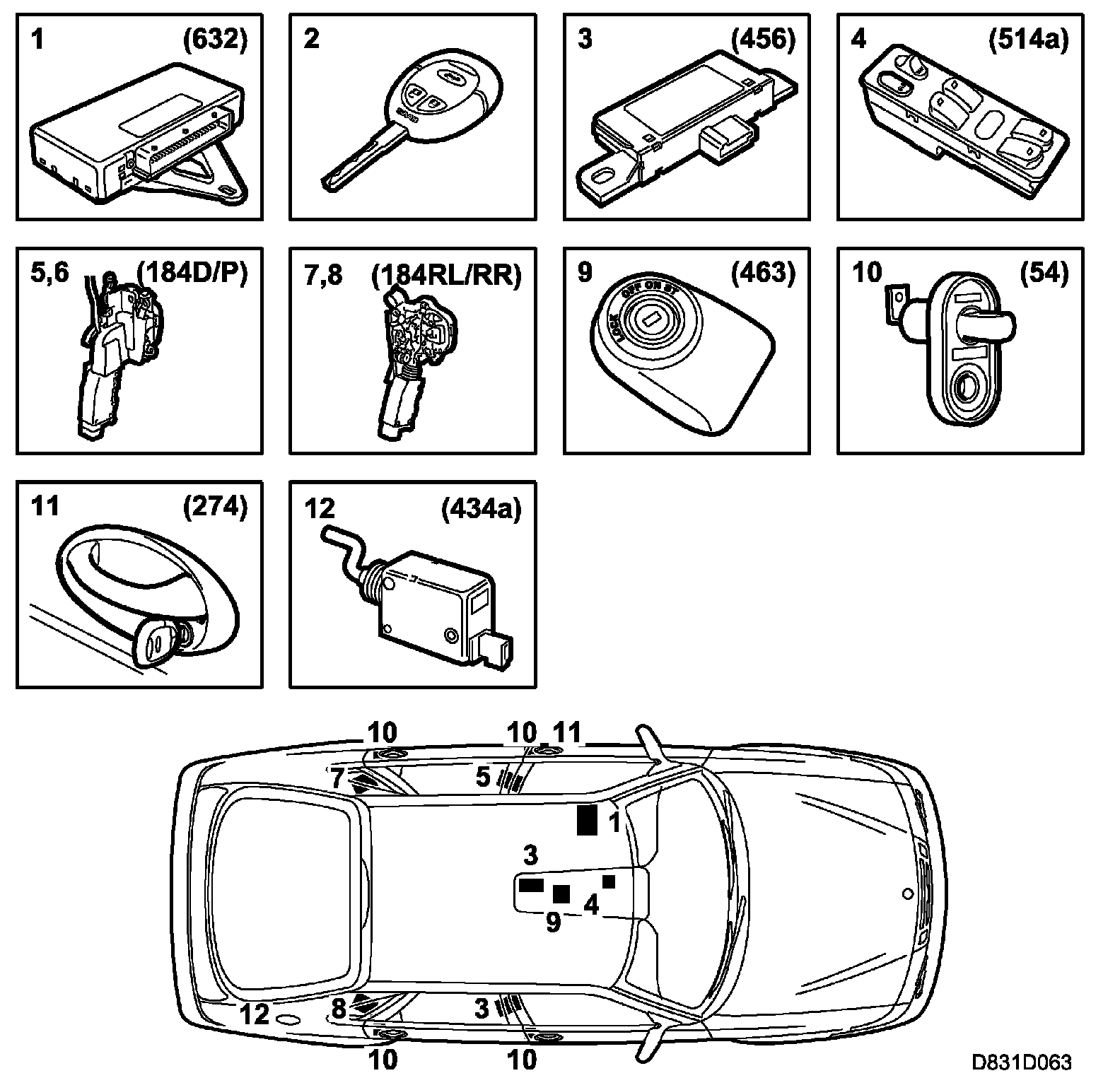

Main Components, Central Locking System For Doors

Main Components, Central Locking System For Doors







1. Control module, TWICE (632)
2. Car key with remote control
3. Receiver, remote control (456)
4. Switch, central locking system (514a)
5. Motor, central locking system, driver's door (184D)
6. Motor, central locking system, passenger door (184P)
7. Motor, central locking system, left rear door (184RL)
8. Motor, central locking system, right rear door (184RR)
9. Antenna unit, immobilizer (463)
10. Door switches (54D, P, RL, RR)
11. Microswitch, central locking system, driver's door (274)
12. Motor, central locking system, tank hatch (434a)
