Control Module Inputs and Outputs

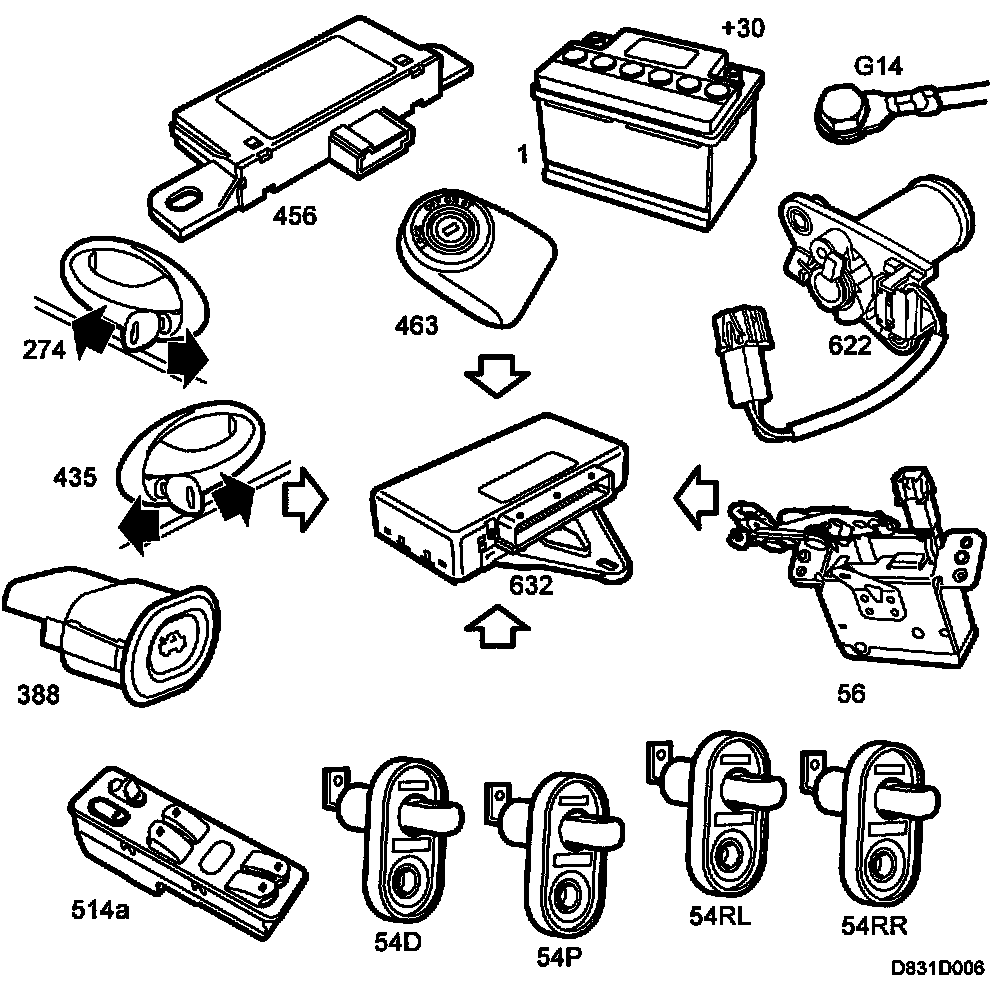

Control Module Inputs:

- Power supply +30
- Grounding point (G14)
- Switch, central locking system (514a)
- Switch, tailgate, in driver's door (388)
- Microswitch in driver's door (274)
- Microswitch in passenger door (435)
- Door switch, driver's door (54D)
- Door switch, passenger door (54P)
- Door switch, left rear door (54 RL)
- Door switch, right rear door (54RR)
- Tailgate switch, 3D/5D (56)
- Tailgate switch, convertible (56)
- Receiver, remote control (456)
- Aerial unit, immobilizer (463)
- Microswitch, tailgate lock (622)

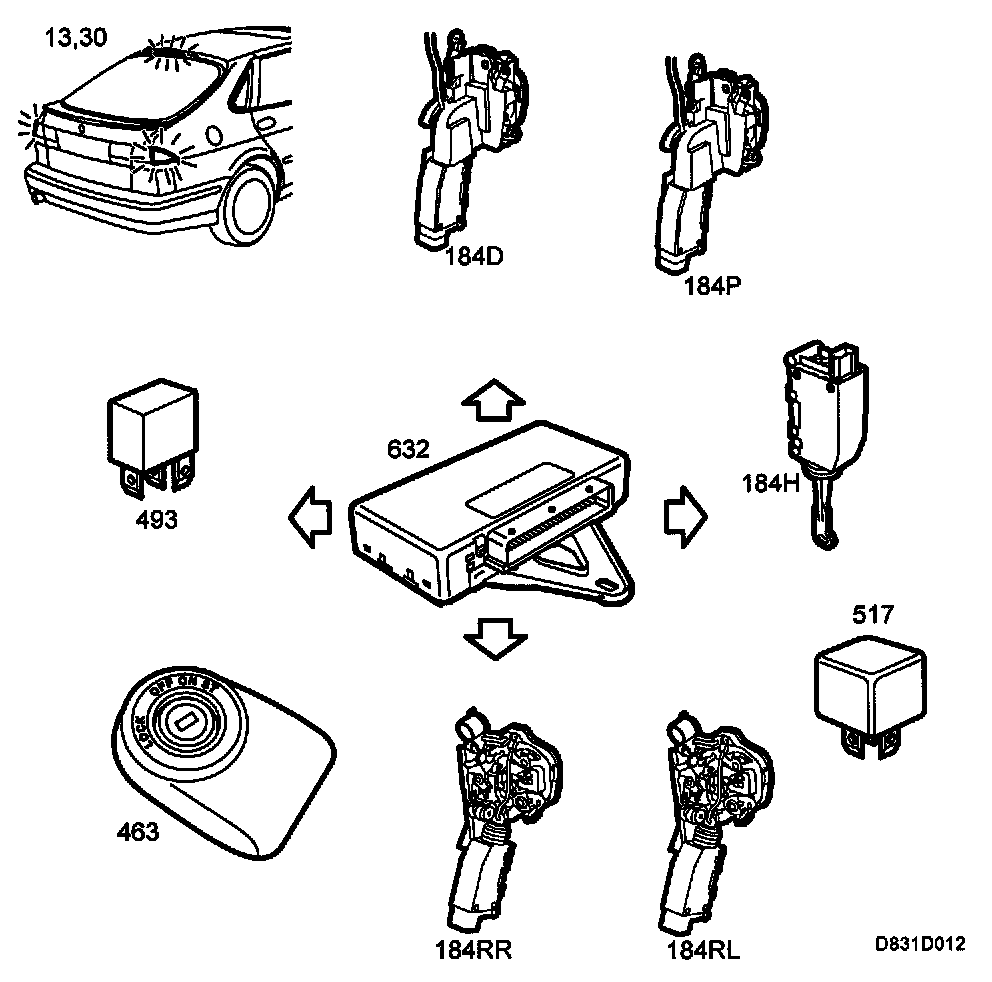

Control Module Outputs:

- Motor, central locking system, driver's door (184D)
- Motor, central locking system, passenger door (184P)
- Motor, central locking system, left rear door (184RL)
- Motor, central locking system, right rear door (184RR)
- Electric motor, central locking system, tailgate (184H)
- Relay, tailgate opening (493)
- Aerial unit, immobilizer (463)
- Start relay (517)
