Pillar Trim
>>
Trim, A-Pillar
Trim, A-Pillar
Trim, A-pillar

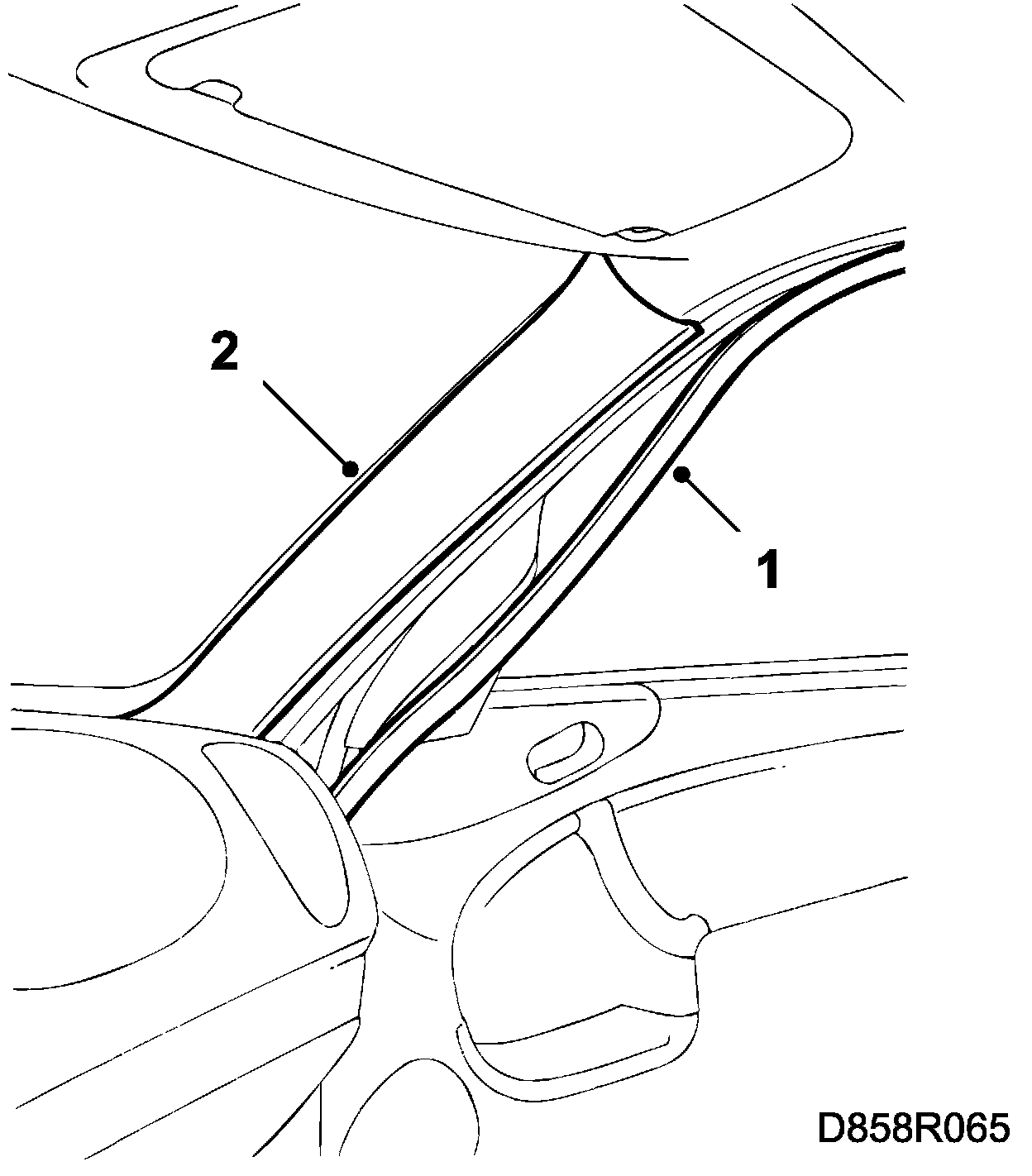

To remove
1.
Undo the A-pillar door weather seal.
2.
Pull off the pillar trim from the pillar (fastened with clips).
To fit
Fit in reverse order.
