Inner Scuff Plate, CV




Inner Scuff Plate, CV

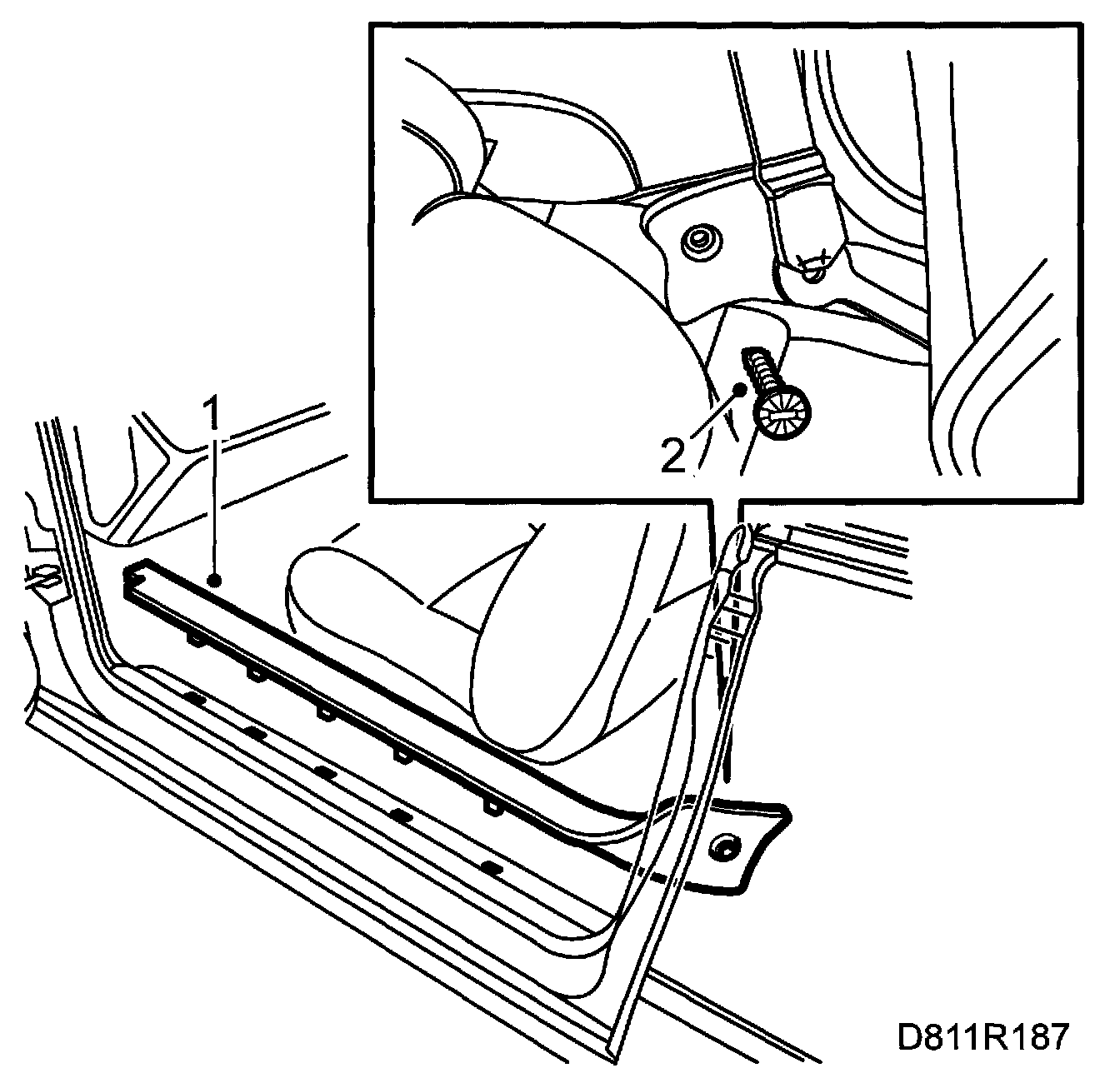

To remove







1. Remove the clip at the rear of the scuff plate.
2. Lift up the scuff plate.

To fit







1. Fit the scuff plate.
2. Fasten the clips at the rear edge of the scuff plate.
